Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307

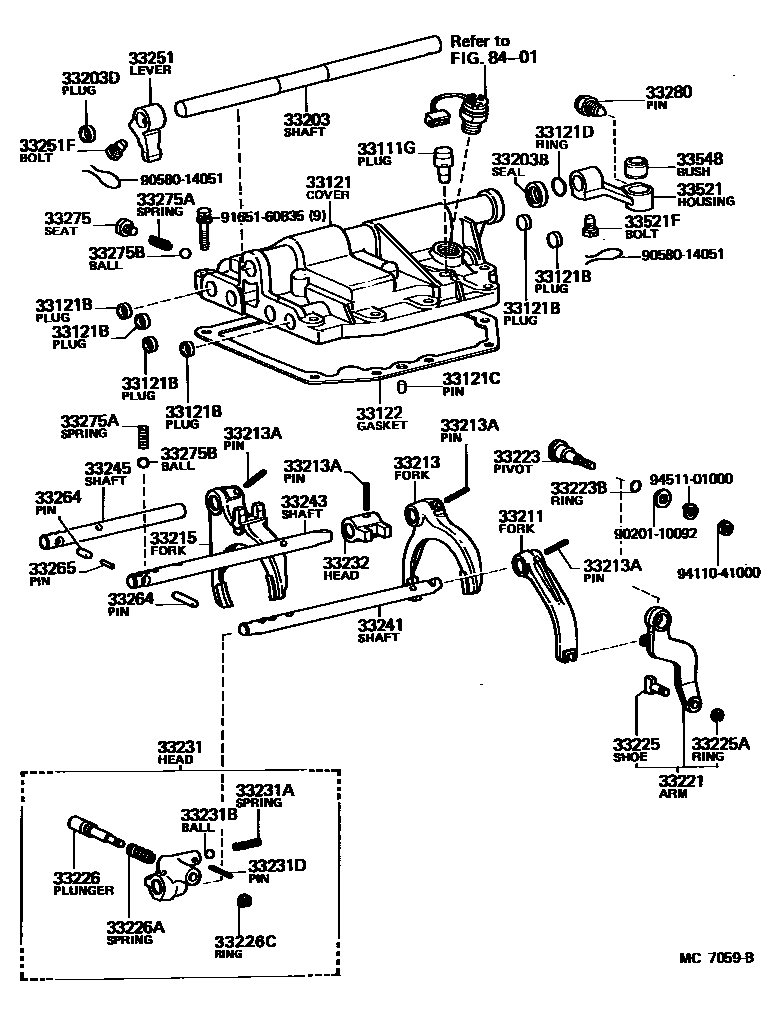

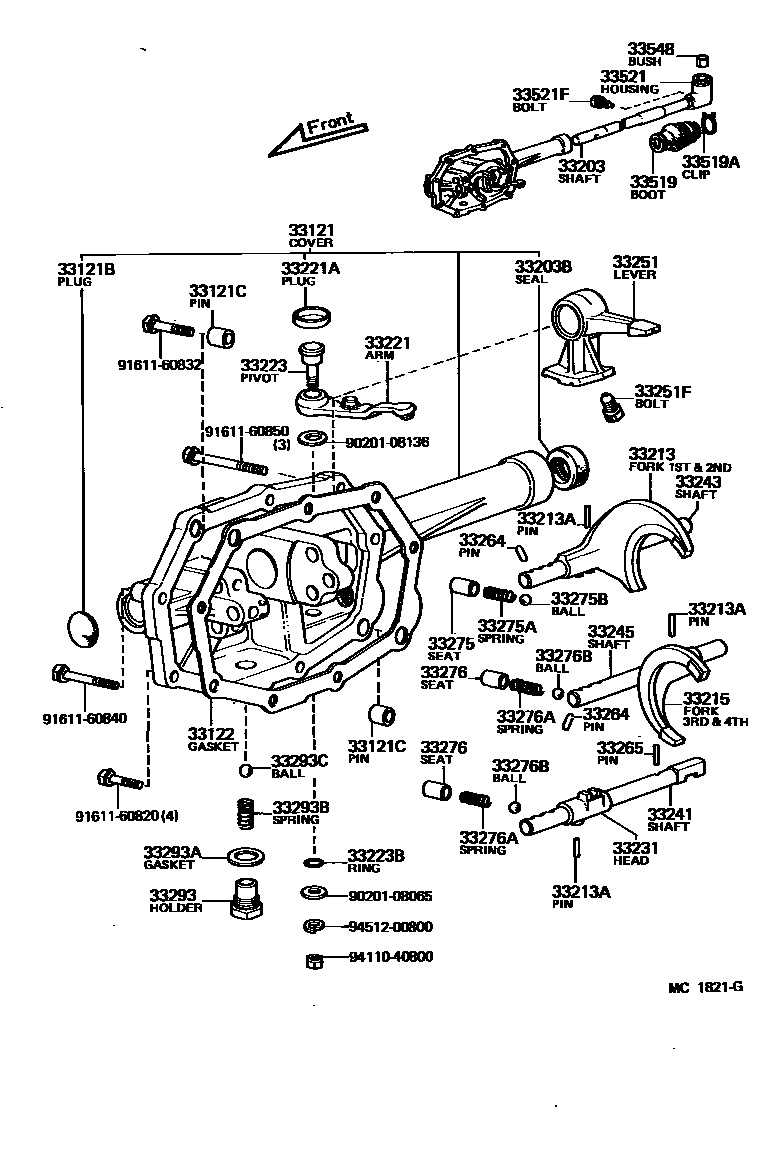

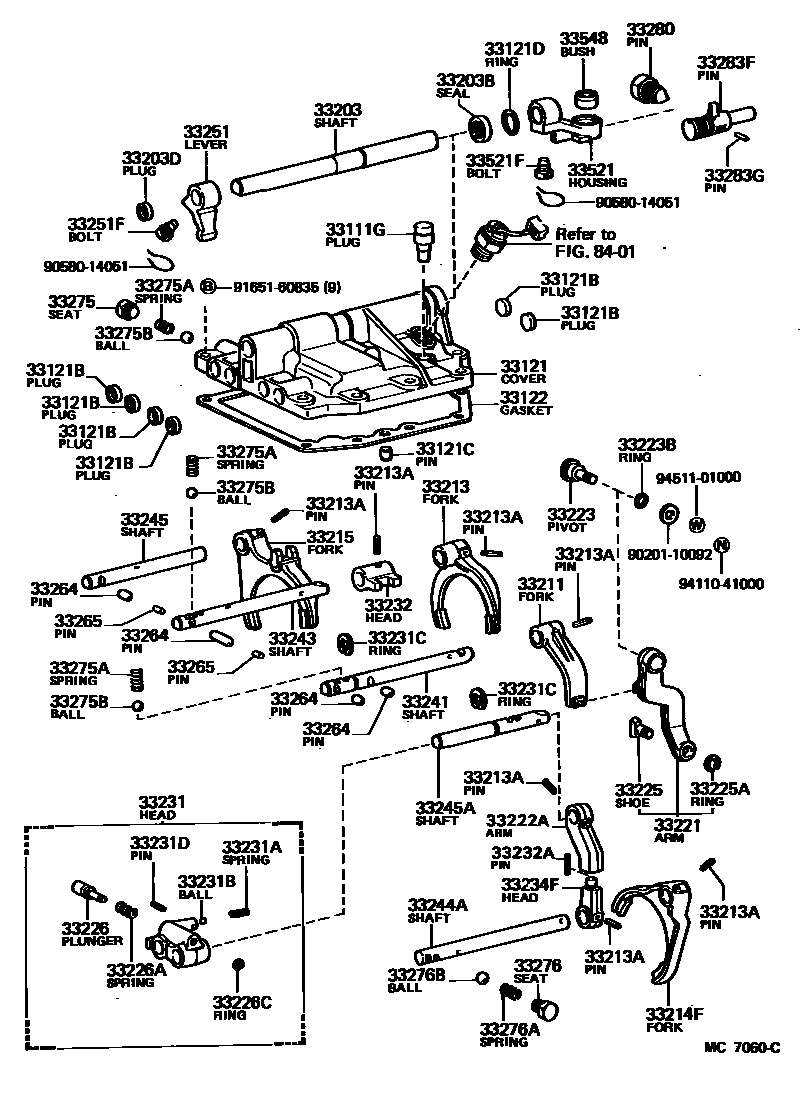

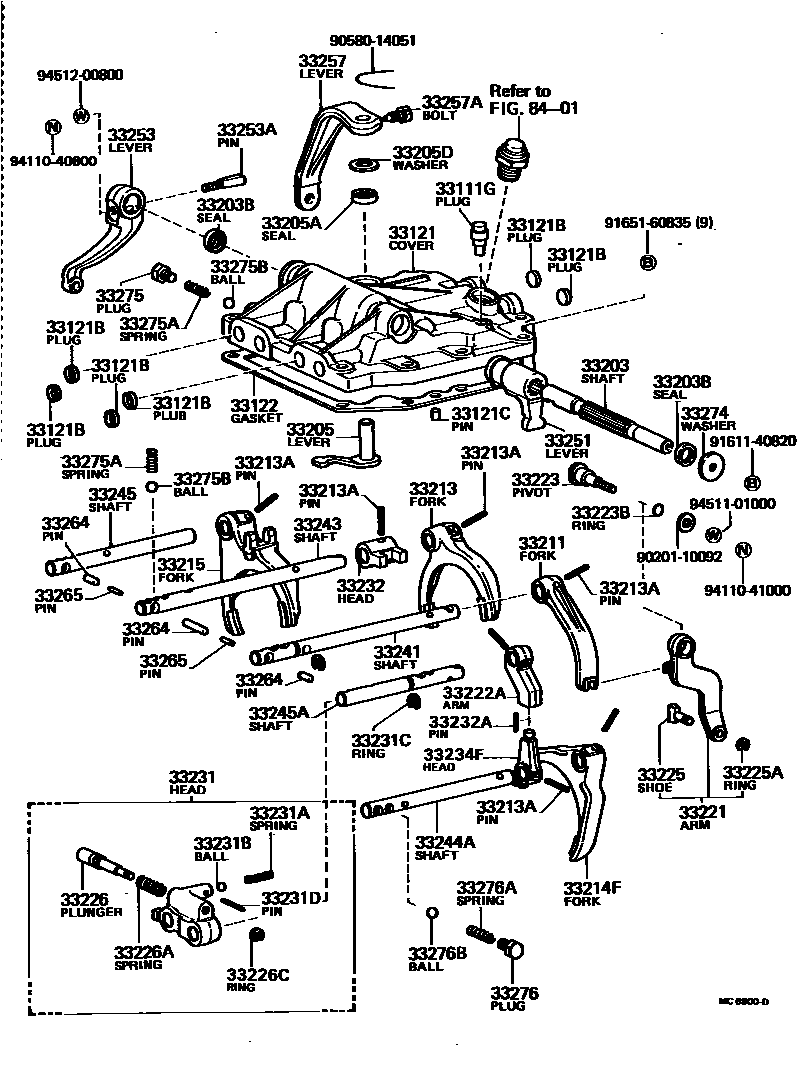

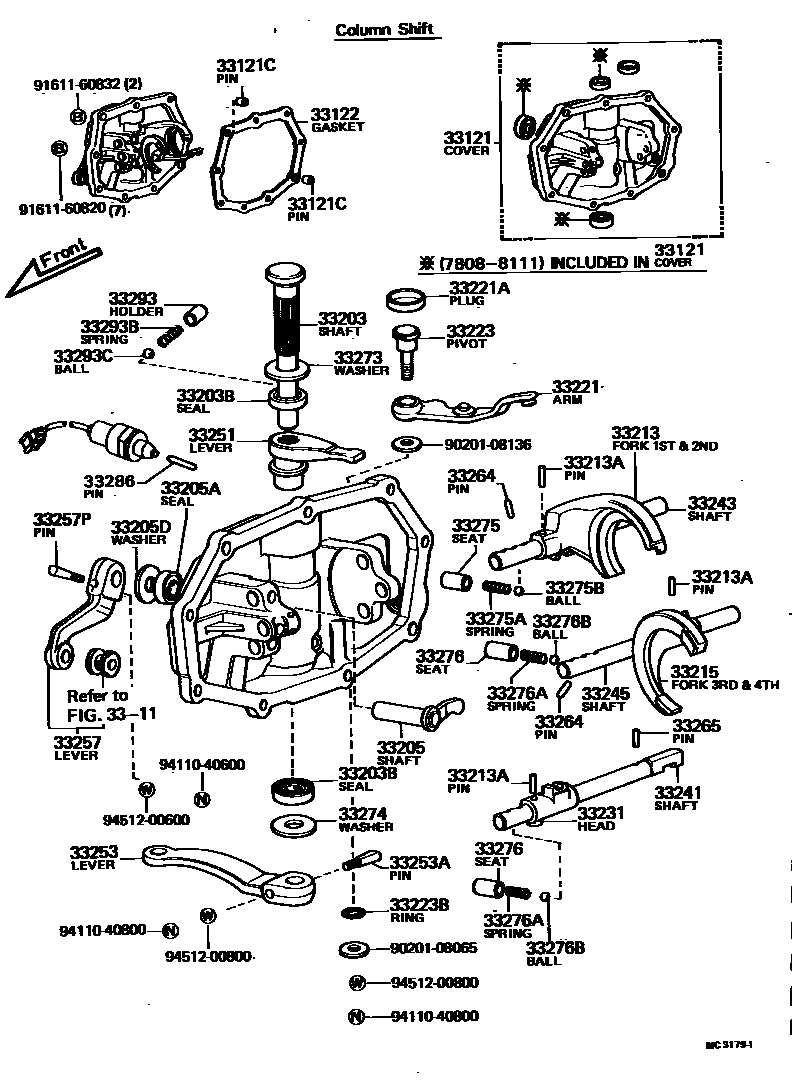

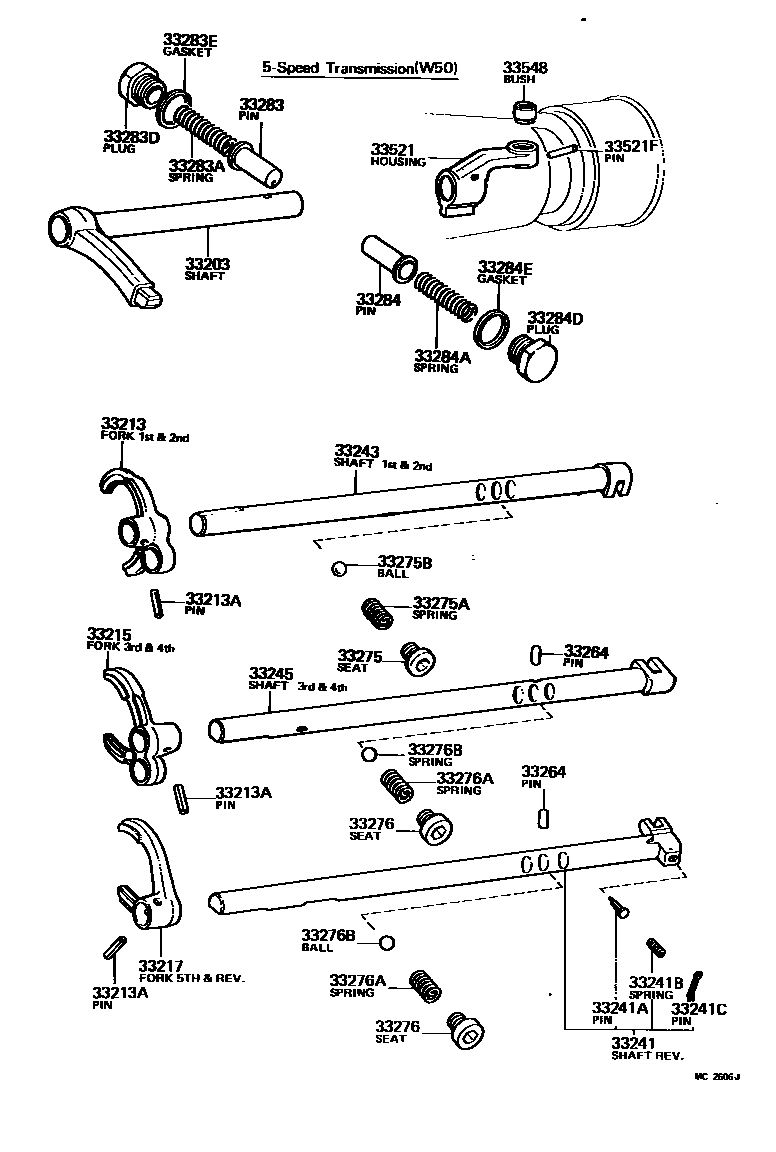

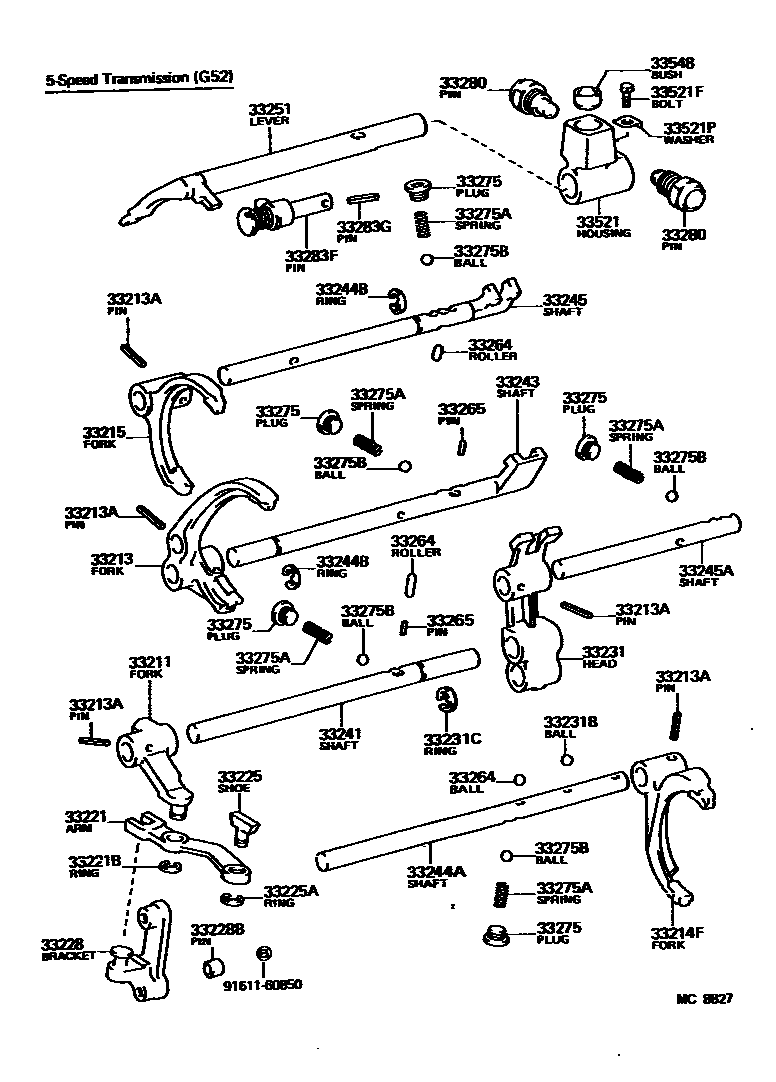

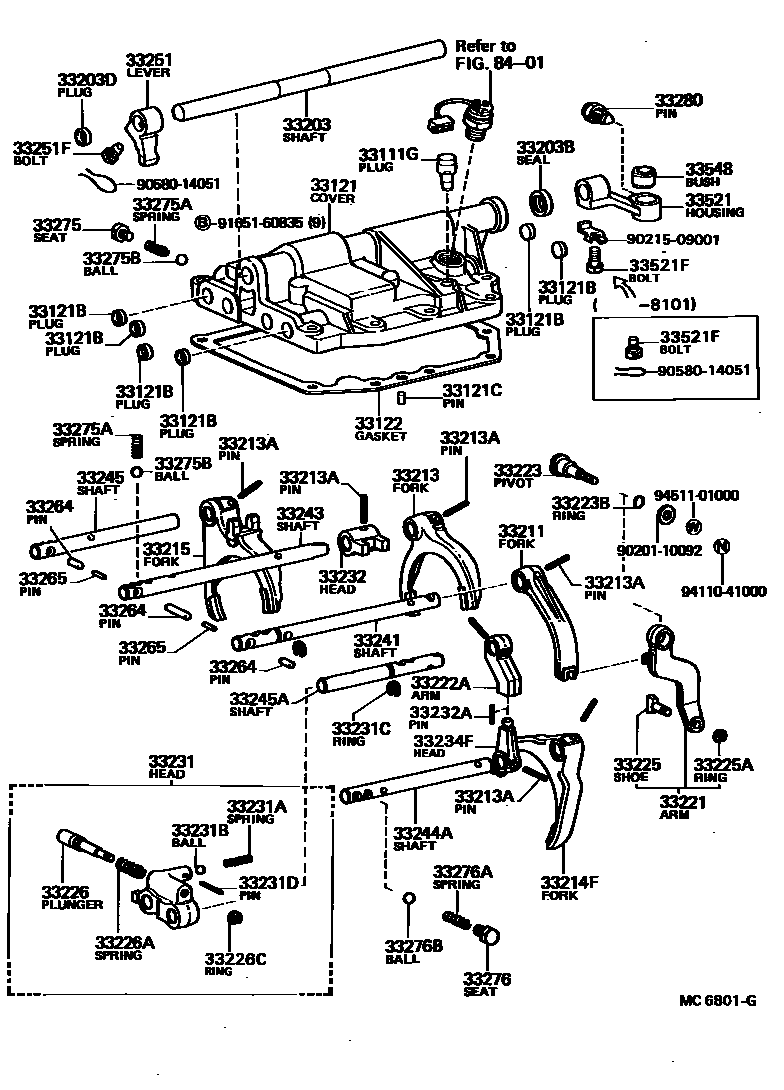

Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 8 images and 87 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03065 |
| 33121 | manual gearbox cover | 33102-26010 · 33102-26020 · 33102-35010 · 33102-35020 · 33102-35030 · 33102-35040 · 33121-26903 · 33121-26904 · 33121-35060 · 33121-35070 · 33121-35080 · 33121-35901 · 33121-35902 · 33121-35903 · 33121-35904 |
| 33121B | Expansion plug or sealing plug (for gearbox cover) | 90330-20011 · 90331-14003 · 90331-14004 |
| 33121C | pin (for gearbox cover) | 90250-10214 · 90253-11001 |
| 33121D | O-ring (for gearbox) | 90301-23003 |
| 33122 | Manual transmission cover gasket | 33122-30020 · 33122-35020 |
| 33203 | No. 1 shift lever shaft sub-assembly | 33203-20092 · 33251-20040 · 33261-20010 · 33261-30020 · 33261-35030 · 33261-35050 · 33261-35051 · 33261-35060 · 33261-35061 · 33261-35070 |
| 33203B | Oil seal (for shift lever shaft) | 90311-13050 · 90311-18002 · 90312-15003 · 90312-17001 · 90312-20016 · 90313-20001 |
| 33203D | Sealing plug (for gear selector shaft) | 90331-16050 |
| 33205 | Selector lever shaft sub-assembly | 33262-26010 · 33262-35030 · 33262-35031 |
| 33205A | Oil seal (for No. 2 shift lever shaft) | 90313-13001 |
| 33205D | Washer (used to secure the outer shift lever oil seal) | 94612-11300 |
| 33211 | Reverse Shift Fork | 33211-28010 · 33211-35020 |
| 33213 | First and second gear shift forks | 33212-20050 · 33212-28010 · 33212-31010 · 33212-35010 · 33212-35022 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33214F | Five-speed shift fork | 33214-35010 · 33214-35011 · 33214-35020 |
| 33215 | Third and fourth gear shift forks | 33213-26020 · 33213-31010 · 33213-35020 · 33213-35031 |
| 33217 | Fifth gear and reverse gear shift fork | 33214-20011 |
| 33221 | Reverse shift arm | 33201-35020 · 33221-28010 · 33221-30010 |
| 33221A | Sealing plug (for reverse shift arm) | 96411-12500 |
| 33221B | E-ring (for reverse shift arm) | 96160-01000 |
| 33222A | fifth gear shift arm | 33233-28010 · 33233-28011 · 33233-35020 |
| 33223 | shift arm pivot | 33223-30011 · 33223-35020 |
| 33223B | O-ring (for shift arm pivot) | 90301-08001 · 96710-01010 · 96711-19010 |
| 33225 | shift arm shoe | 33225-35020 |
| 33225A | Shaft snap ring (for shift arm shoe) | 90520-08098 · 96160-00800 |
| 33226 | Reverse shift return plunger | 33226-35011 |
| 33226A | Compression spring (for reverse shift return plunger) | 90501-14046 · 90501-14074 |
| 33226C | Shaft snap ring (for reverse shift return plunger) | 90520-06001 |
| 33228 | Reverse shift arm bracket | 33228-28010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33202-26011 · 33202-35010 · 33231-26010 · 33231-35040 |
| 33231A | Reverse shift positioning spring | 90501-10046 · 90501-12046 |
| 33231B | Reverse gear shift positioning steel ball | 90360-06004 · 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90523-12001 · 96160-01200 |
| 33231D | Pin (for reverse shift guide) | 90254-03006 · 90254-03050 |
| 33232 | First and second gear shift guide blocks | 33232-35010 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-03005 |
| 33234F | Reverse and fifth gear shift guide blocks | 33234-35010 |
| 33241 | Reverse shift fork shaft | 33241-26010 · 33244-20902 · 33245-35020 · 33245-35030 |
| 33241A | Reverse gear shaft positioning pin | 33284-22010 |
| 33241B | Compression spring (for reverse shaft locating pin) | 90501-12017 |
| 33241C | Cotter pin (for reverse gear shaft positioning pin) | 95381-03020 |
| 33243 | First and second gear shift fork shaft | 33242-20042 · 33242-20060 · 33242-26010 · 33242-35010 · 33242-35020 |
| 33244A | Fifth gear shift fork shaft | 33245-35040 · 33246-35010 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90523-12001 |
| 33245 | Third and fourth gear shift fork shaft | 33243-20031 · 33243-26010 · 33243-26020 · 33243-28010 · 33243-35030 · 33243-35040 |
| 33245A | Fifth gear shift arm shaft | 33244-35010 · 33246-35020 |
| 33251 | shift lever | 33251-22010 · 33251-26010 · 33251-30040 · 33251-35040 · 33251-35050 · 33251-35060 |
| 33251F | Pin or bolt (for shift lever) | 33218-35010 |
| 33253 | No. 1 outer shift lever | 33253-20030 · 33253-35020 · 33253-35050 |
| 33253A | Shift lever lock pin (for outer shift lever) | 33281-30010 · 33282-57010 |
| 33257 | External gear selector | 33257-35020 · 33257-35050 · 33260-35010 |
| 33257A | External gear lever locking bolt | 33218-35010 |
| 33257P | External gear lever lock pin | 33282-35010 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-30010 · 33264-31010 · 90360-10003 · 90361-10001 · 90361-10002 · 90361-10003 · 90361-10008 |
| 33265 | No. 2 shift interlock pin | 33265-30010 · 90250-05010 · 90250-05020 |
| 33273 | No. 1 shift lever shaft cover gasket | 90201-15137 |
| 33274 | No. 2 shift lever shaft cover gasket | 90201-08019 · 94612-11300 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-10010 · 90341-10004 · 90341-12003 · 90341-12008 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-10061 · 90501-13001 · 90501-13006 · 90501-14047 · 90501-14061 · 90501-14062 · 90501-14638 |
| 33275B | Gear shift lock steel ball | 90360-08009 · 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 33275-10010 · 90341-10064 · 90341-12003 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-13001 · 90501-13006 · 90501-14047 · 90501-14638 |
| 33276B | No. 2 shift lock steel ball | 90360-08009 · 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-20010 · 33280-35020 · 33280-35030 |
| 33283 | No. 1 reverse gear positioning pin | 33283-22010 |
| 33283A | Compression spring (for reverse gear pin) | 90501-16002 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-20086 |
| 33283E | Pad (for reverse gear pin) | 90430-21224 |
| 33283F | Reverse gear positioning pin | 33280-35011 · 33280-35040 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 |
| 33284 | Low grade positioning pin | 33283-22010 |
| 33284A | Compression spring (for low range locating pins) | 90501-16001 |
| 33284D | Screw plug (for low-end positioning pin) | 90341-20086 |
| 33284E | Pad (for low profile dowels) | 90430-21224 |
| 33286 | pressure switch pin | 33286-26010 |
| 33293 | Reverse gear positioning steel ball retainer | 33276-10010 · 33293-30010 |
| 33293A | Pad (for reverse gear positioning steel ball holder) | 12157-10010 · 90430-18007 |
| 33293B | Compression spring (for reverse gear positioning steel ball) | 90501-14007 · 90501-16041 |
| 33293C | Steel ball (for reverse gear positioning) | 90360-10003 |
| 33519 | Control shaft dust cover | 33555-20010 |
| 33519A | Clamp (for control shaft boot assembly) | 90467-17042 |
| 33521 | shift lever housing | 33521-14040 · 33521-30020 · 33521-35021 · 33521-35030 · 33521-35040 · 33521-35041 · 33521-35060 · 33521-35070 |
| 33521F | Pin or bolt (for shifter housing) | 33218-35010 · 90113-08001 · 90254-05016 |
| 33521P | Lock washer (for shift lever housing) | 90215-09003 |
| 33548 | shift lever bushing | 33548-30010 · 33548-31010 |
