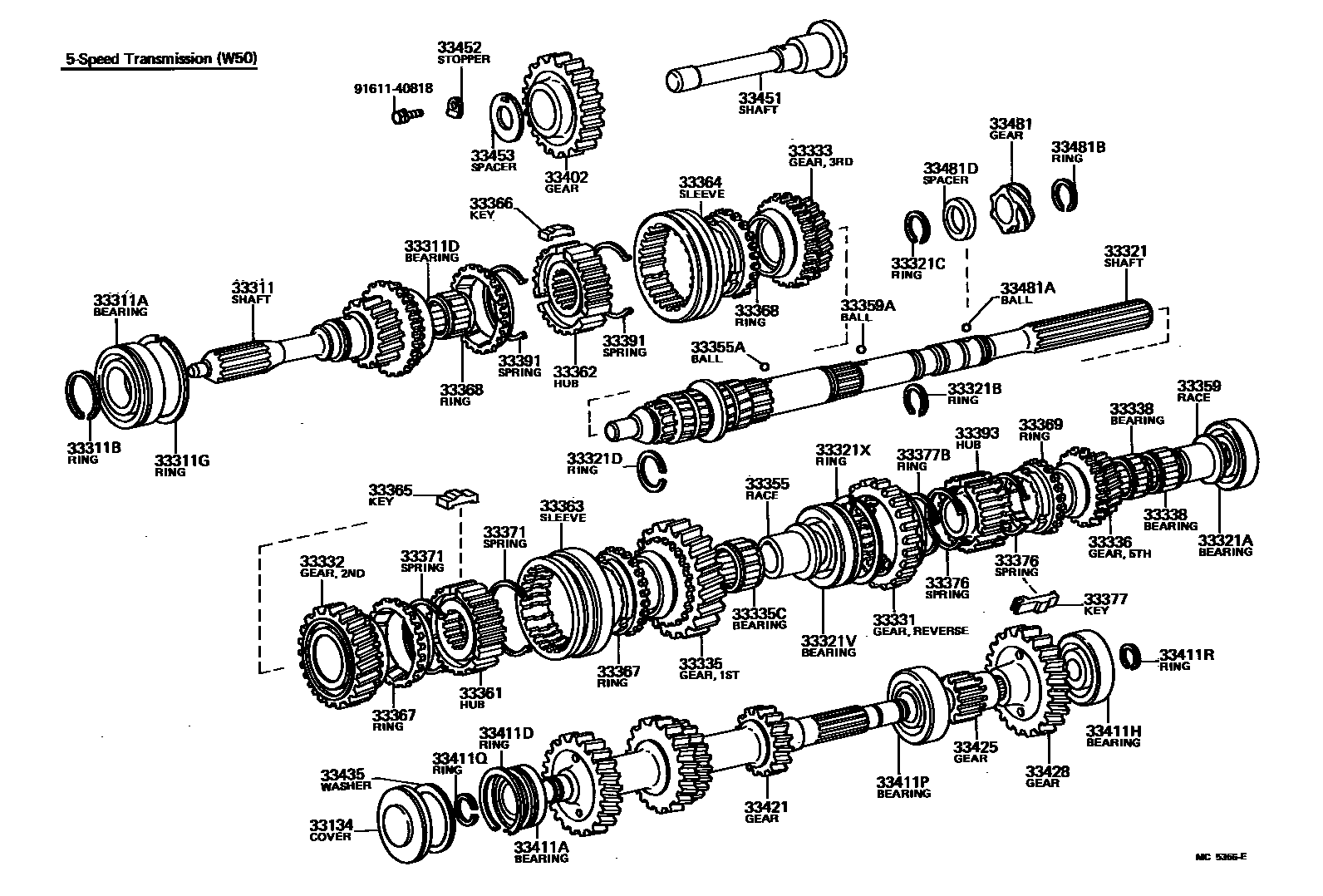

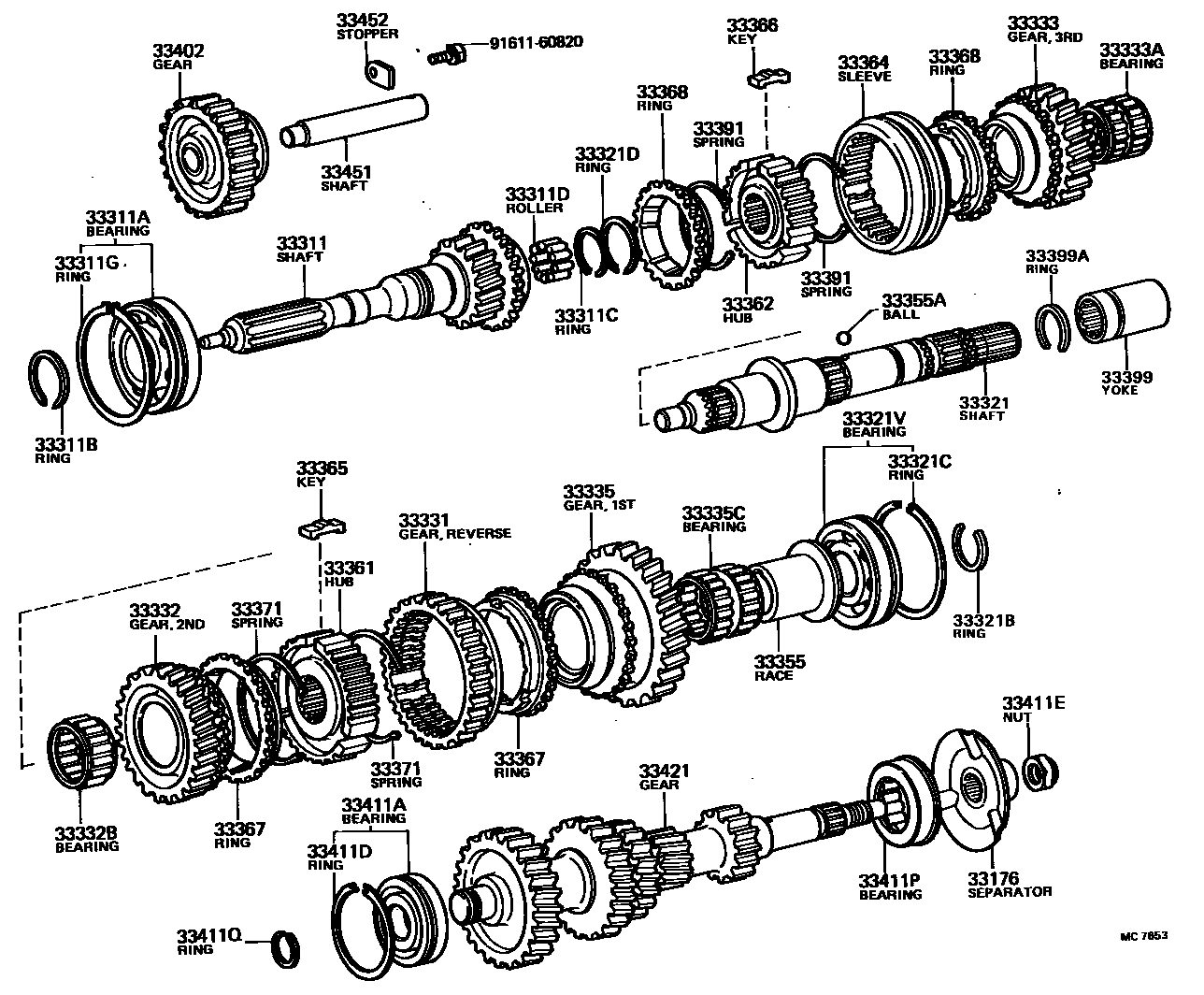

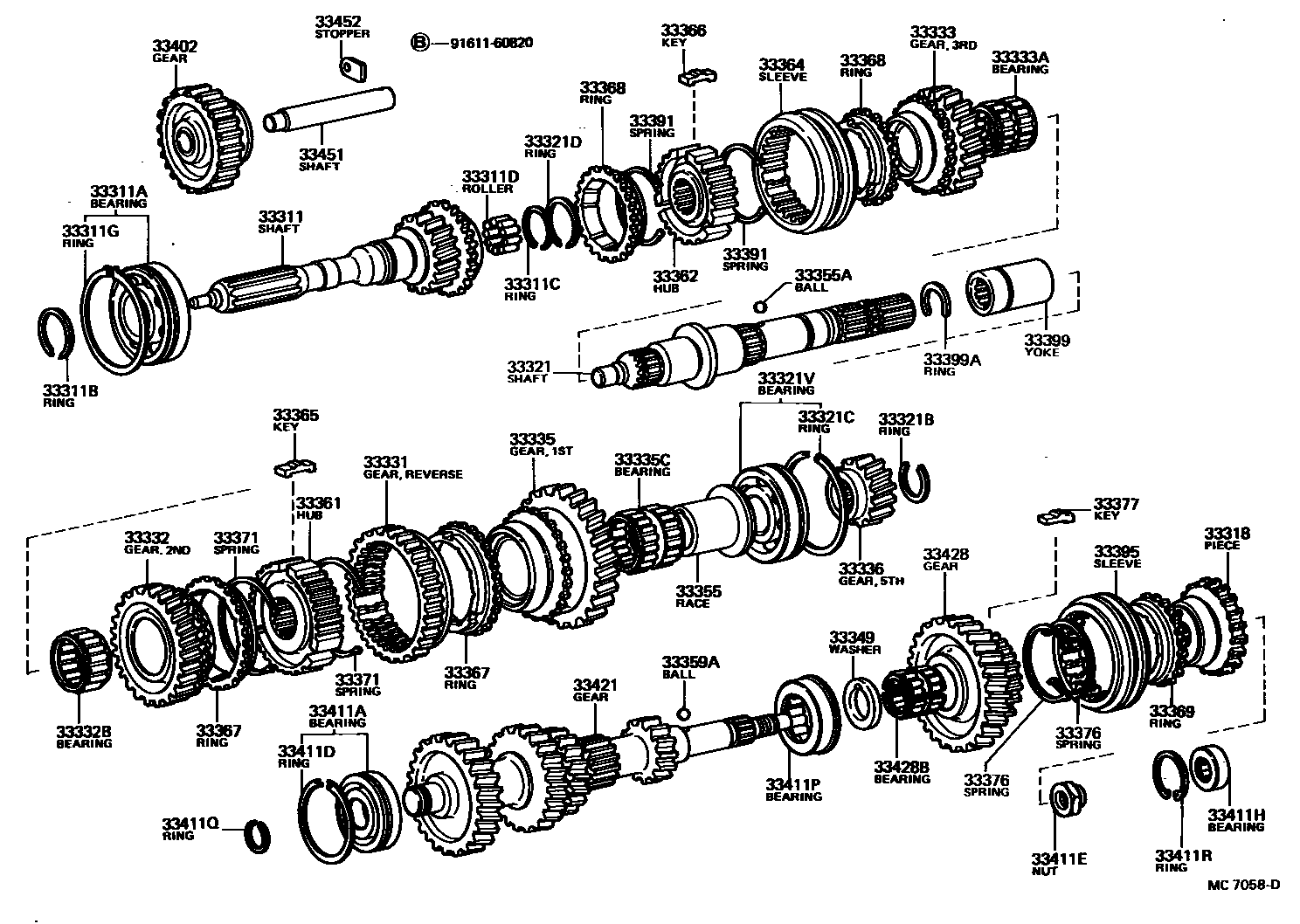

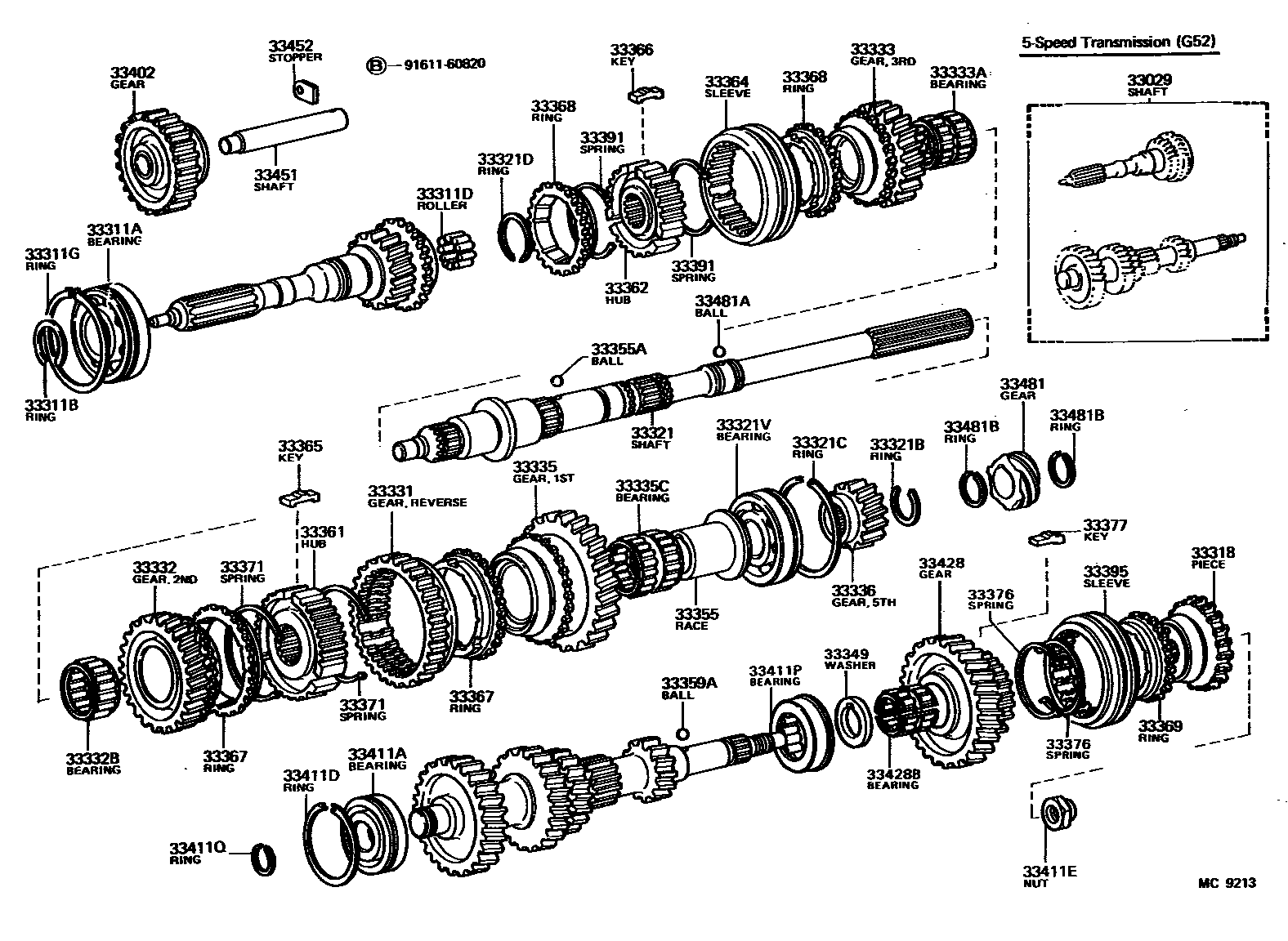

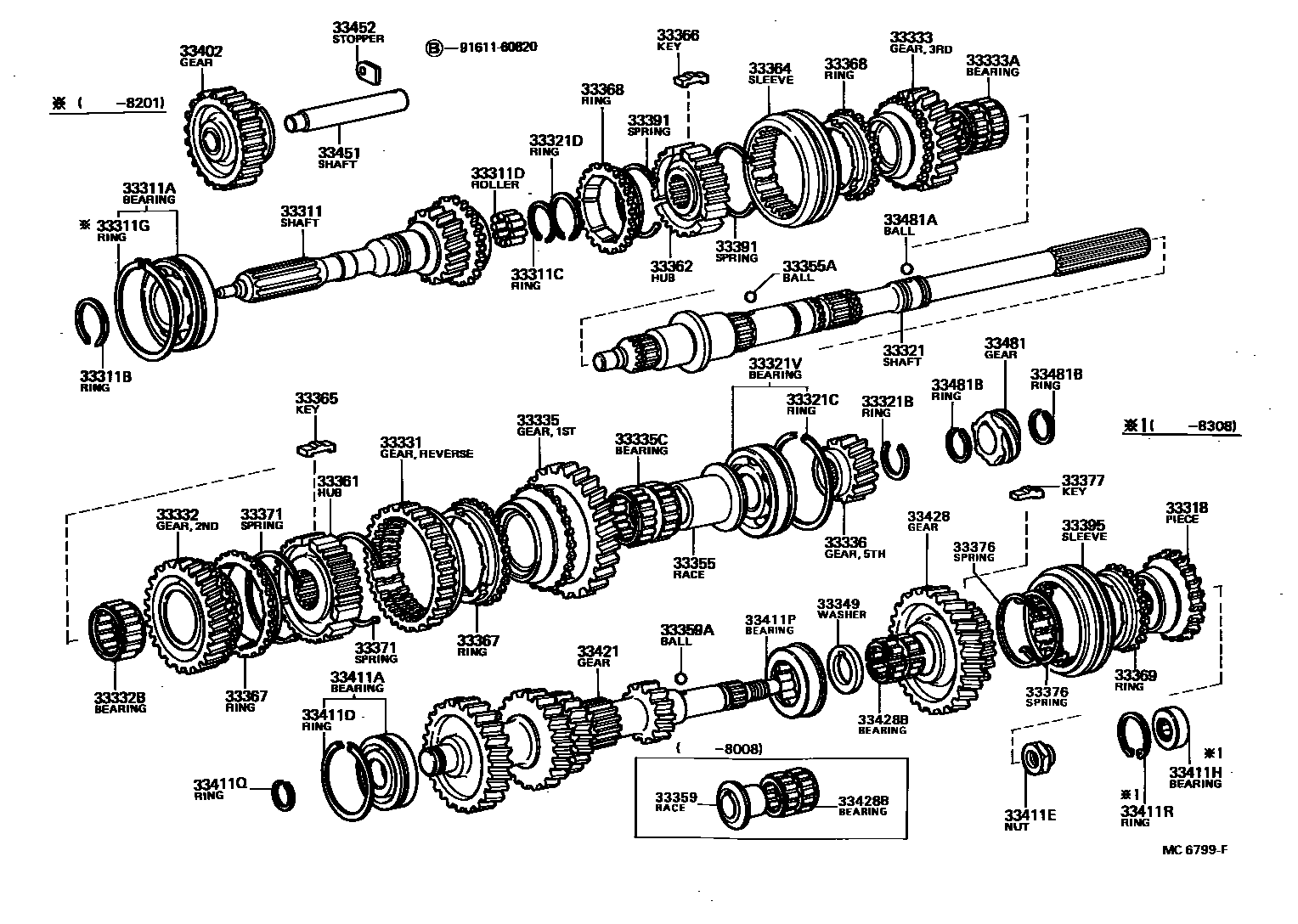

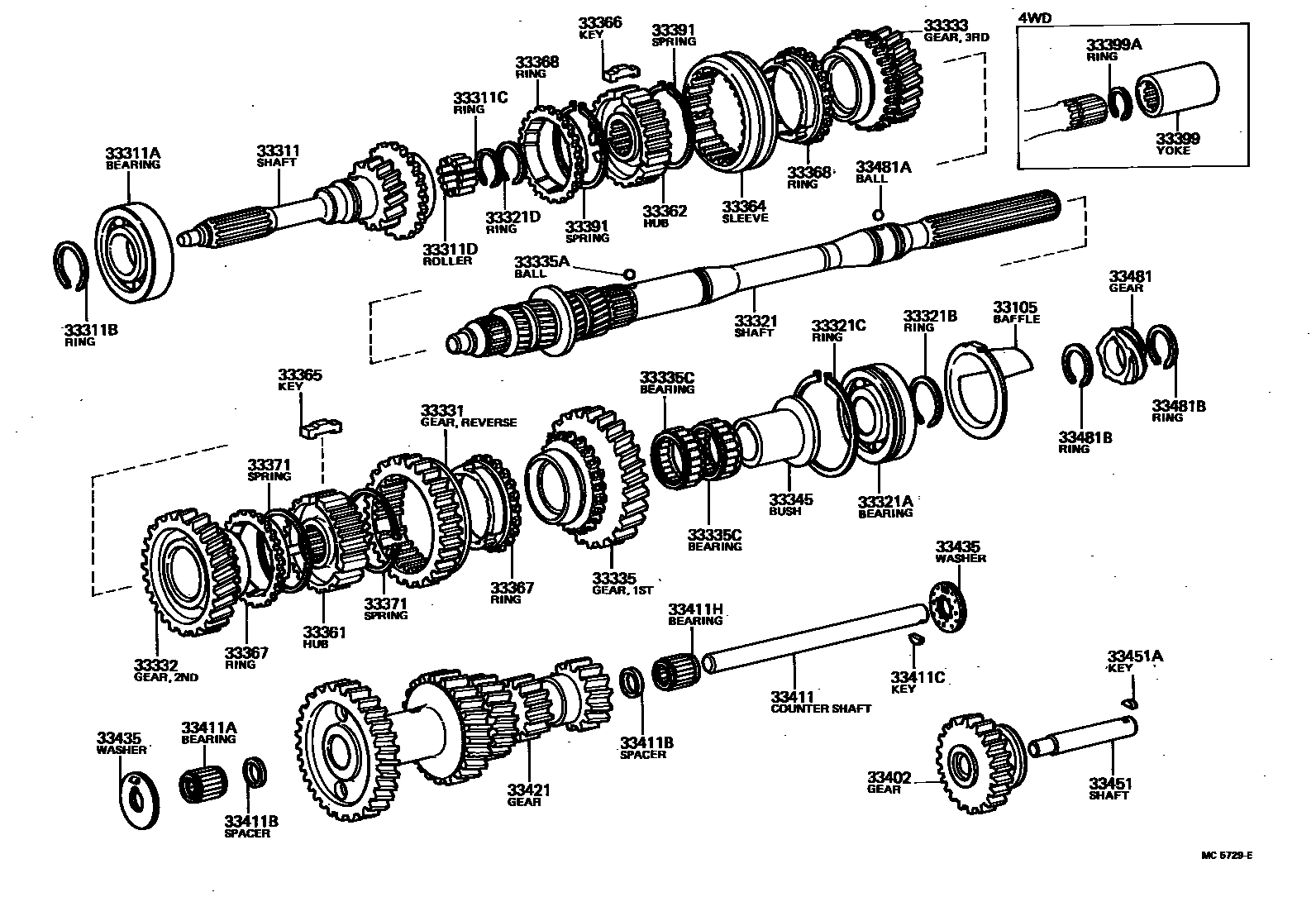

Toyota HILUX 变速器齿轮(MTM) — Figure 3305
Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 6 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33029 | input shaft assembly | 33029-28010 |
| 33105 | Extension shell oil baffle sub-assembly | 33143-26020 |
| 33134 | Gearbox intermediate shaft cover | 33406-31010 |
| 33176 | No. 1 manual transmission oil separator | 33176-35010 |
| 33311 | input shaft | 33301-20020 · 33301-30041 · 33301-35030 · 33311-26020 · 33311-35040 |
| 33311A | Bearing (for front input shaft) | 90363-32005 · 90363-32010 · 90363-32016 · 90363-32018 · 90363-32019 · 90365-32011 · 97163-06207 |
| 33311B | Shaft snap ring (for front bearing) | 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-33107 · 90520-33168 · 90520-33169 · 90520-33170 · 90520-33171 · 90520-33172 |
| 33311C | Hole snap ring (for needle rollers) | 90521-33001 · 90521-33006 |
| 33311D | Input shaft bearing | 90361-06047 · 90364-19043 |
| 33311G | Shaft snap ring (for front bearing) | 90520-71221 · 90520-76002 |
| 33318 | No. 5 gear spline | 33318-28010 · 33318-30010 · 33318-35010 |
| 33321 | output shaft | 33321-20071 · 33321-35070 · 33321-35071 · 33321-35080 · 33321-35090 · 33321-35091 · 33321-35092 · 33321-35101 |
| 33321A | Bearings (for rear output shaft) | 97104-06228 · 97183-06306 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-25005 · 90520-25006 · 90520-25009 · 90520-25010 · 90520-25011 · 90520-25012 · 90520-25013 · 90520-25014 · 90520-25015 · 90520-25016 · 90520-25017 · 90520-25270 · 90520-25271 · 90520-25272 · 90520-25273 · 90520-25277 · 90520-25278 · 90520-25279 · 90520-25280 · 90520-25281 · 90520-25282 · 90520-25283 · 90520-25284 · 90520-25285 · 90520-28242 · 90520-28243 · 90520-28244 · 90520-28245 · 90520-28246 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-26179 · 90520-68002 · 90520-68181 · 90520-68182 · 90520-68183 · 90520-68184 · 90520-68185 · 90520-71221 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-28010 · 90520-28011 · 90520-28012 · 90520-28013 · 90520-28242 · 90520-28243 · 90520-28244 · 90520-28245 · 90520-28246 · 90520-28248 · 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30238 |
| 33321V | Bearings (for center output shaft) | 90363-30021 · 90363-30026 · 90363-30032 · 90363-30036 · 90363-32005 · 90363-32060 |
| 33321X | Shaft snap ring (for output shaft center bearing) | 90520-71221 |
| 33331 | reverse gear | 33331-20031 · 33331-26010 · 33331-28010 · 33331-35040 |
| 33332 | Second gear | 33033-20030 · 33033-35010 · 33033-35030 · 33332-26030 · 33332-35030 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-38002 |
| 33333 | Third gear | 33034-20020 · 33034-28010 · 33034-35010 · 33034-35011 · 33333-26010 |
| 33333A | Needle roller bearing (for third gear) | 90364-35003 · 90364-35005 |
| 33335 | first gear | 33032-20040 · 33032-28010 · 33032-31011 · 33032-35010 · 33032-35020 · 33335-26010 · 33335-35010 |
| 33335A | First gear shift positioning steel ball | 90360-06004 |
| 33335C | Needle roller bearing (for first gear) | 90364-37050 · 90364-39002 · 90364-43004 · 90364-43042 |
| 33336 | fifth gear | 33036-20010 · 33036-35010 · 33336-28020 · 33336-30010 · 33336-35010 · 33336-35011 · 33336-35050 |
| 33338 | Fifth gear bushing or bearing | 90364-35062 |
| 33345 | First gear bushing | 33345-26010 · 33345-26011 |
| 33349 | Fifth gear thrust washer | 33349-30020 |
| 33355 | First gear bearing inner race | 33355-31010 · 33355-35010 · 33355-35011 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-06004 |
| 33359 | Fifth gear gear bearing inner race | 33338-14021 · 33359-35010 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-06004 |
| 33361 | No. 1 transmission clutch hub | 33361-20030 · 33361-26011 · 33361-31011 · 33361-35020 |
| 33362 | No. 2 transmission clutch hub | 33362-26011 · 33362-28010 · 33362-31011 · 33362-35020 |
| 33363 | No. 1 transmission hub sleeve | 33363-20020 · 33363-20021 · 33363-20030 |
| 33364 | No. 2 transmission hub sleeve | 33364-20011 · 33364-20012 · 33364-20013 · 33364-26010 · 33364-35010 |
| 33365 | No. 1 synchromesh shift key | 33365-26010 · 33365-31010 · 33365-31011 · 33365-35020 · 33366-20011 |
| 33366 | No. 2 synchromesh shift key | 33366-20010 · 33366-20011 · 33366-26010 · 33366-35020 |
| 33367 | Synchronizer lock ring No. 1 | 33367-26021 · 33367-26022 · 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 · 33367-26021 · 33367-26022 · 33368-20012 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-14010 · 33371-14031 · 33371-20010 · 33371-30013 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33371-14010 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33394-20010 · 33394-30010 · 33394-35010 |
| 33377B | Snap ring (for synchronizer shift key) | 90521-63147 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 · 33371-14031 · 33371-20010 · 33371-30013 |
| 33393 | No. 3 transmission clutch hub | 33393-30020 |
| 33395 | No. 3 transmission hub sleeve | 33395-14010 · 33395-14013 · 33395-28010 |
| 33399 | Transmission slip fork (MTM) | 33399-35010 · 33399-35011 |
| 33399A | Shaft snap ring (for transmission slip fork) | 90520-25005 · 90520-26002 |
| 33402 | Reverse idler gear sub-assembly | 33402-20031 · 33402-26010 · 33402-28010 · 33402-35030 |
| 33411 | intermediate shaft | 33411-30021 |
| 33411A | Bearing or roller (for front countershaft gear) | 90364-19068 · 90365-25002 · 90365-25004 · 90365-25007 |
| 33411B | Spacers (for countershaft gear bearings) | 90560-19450 |
| 33411C | Half-moon pin (for intermediate shaft) | 90280-03005 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-49222 |
| 33411E | Nut (for intermediate shaft) | 90179-20002 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90363-20075 · 90364-19068 · 90365-18002 |
| 33411P | intermediate shaft intermediate bearing | 90365-28015 · 90365-31002 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 · 90520-23223 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-18264 · 90520-18265 · 90520-18266 · 90520-18275 · 90521-38001 |
| 33421 | countershaft gear | 33421-20050 · 33421-20060 · 33421-26021 · 33421-35051 · 33421-35070 · 33421-35071 · 33421-35072 · 33421-35090 |
| 33425 | countershaft reverse gear | 33425-20021 · 33425-20030 |
| 33428 | Countershaft fifth gear | 33046-28020 · 33046-30020 · 33046-35020 · 33046-35030 · 33046-35040 · 33428-20020 · 33428-35050 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-26002 · 90364-32004 |
| 33435 | Countershaft gear cover side thrust washer | 33441-26011 · 33441-26012 · 33441-26021 · 33441-26022 · 33441-26031 · 33441-26032 · 33441-26041 · 33441-26042 · 33441-26051 · 33441-26052 · 33441-26061 · 90560-38331 · 90560-38332 · 90560-38333 · 90560-38334 |
| 33451 | Reverse gear idler shaft | 33451-14020 · 33451-28010 · 33451-30020 · 33451-35020 |
| 33451A | Half-moon pin (for reverse idler shaft) | 90280-03005 |
| 33452 | Reverse gear idler shaft stop | 33452-14010 · 33452-36020 |
| 33453 | Reverse gear idler shaft spacer | 33453-14010 |
| 33481 | Speedometer driving gear (MTM) | 33481-20020 · 33481-20030 · 33481-20070 · 33481-22010 · 33481-25020 · 33481-26010 · 33481-30040 |
| 33481A | Speedometer driving gear key or steel ball (MTM) | 90280-03005 · 90360-06004 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-26179 · 90520-28009 |
| 33481D | Spacer (for speedometer drive gear) | 90560-28339 |
