Toyota HILUX 废气再循环系统 — Figure 2501

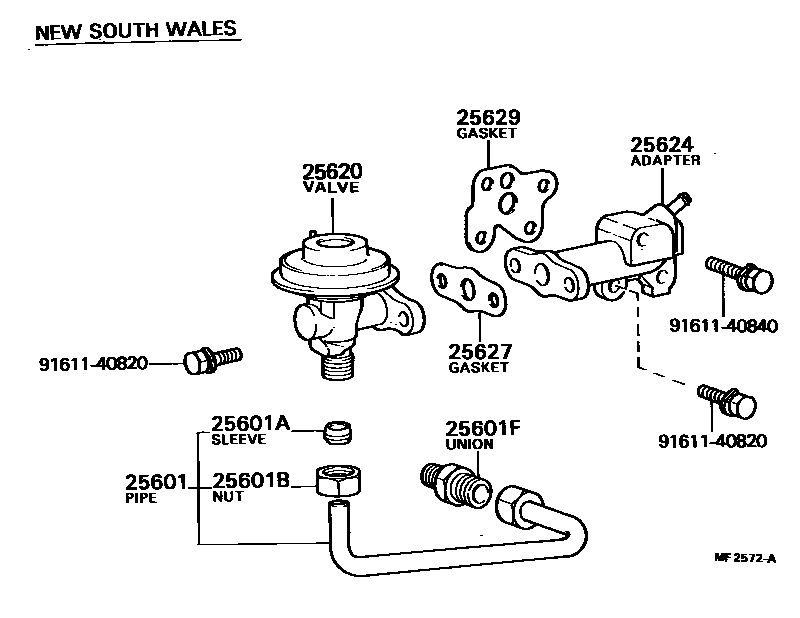

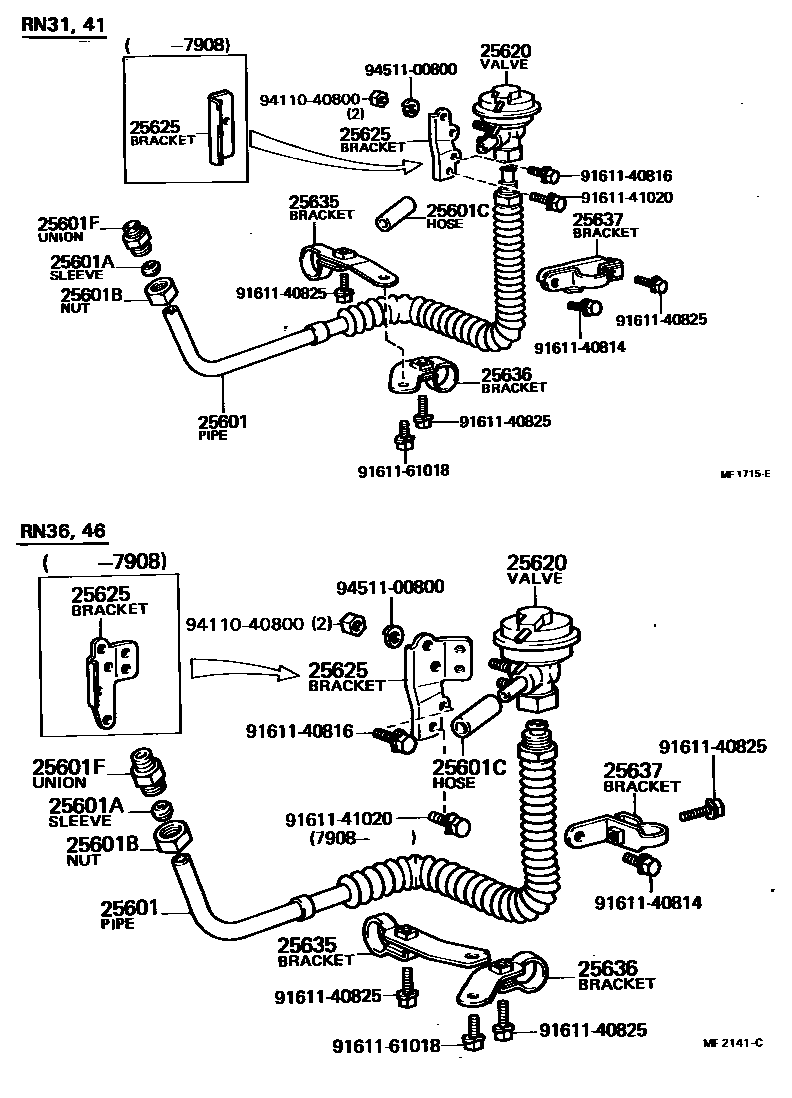

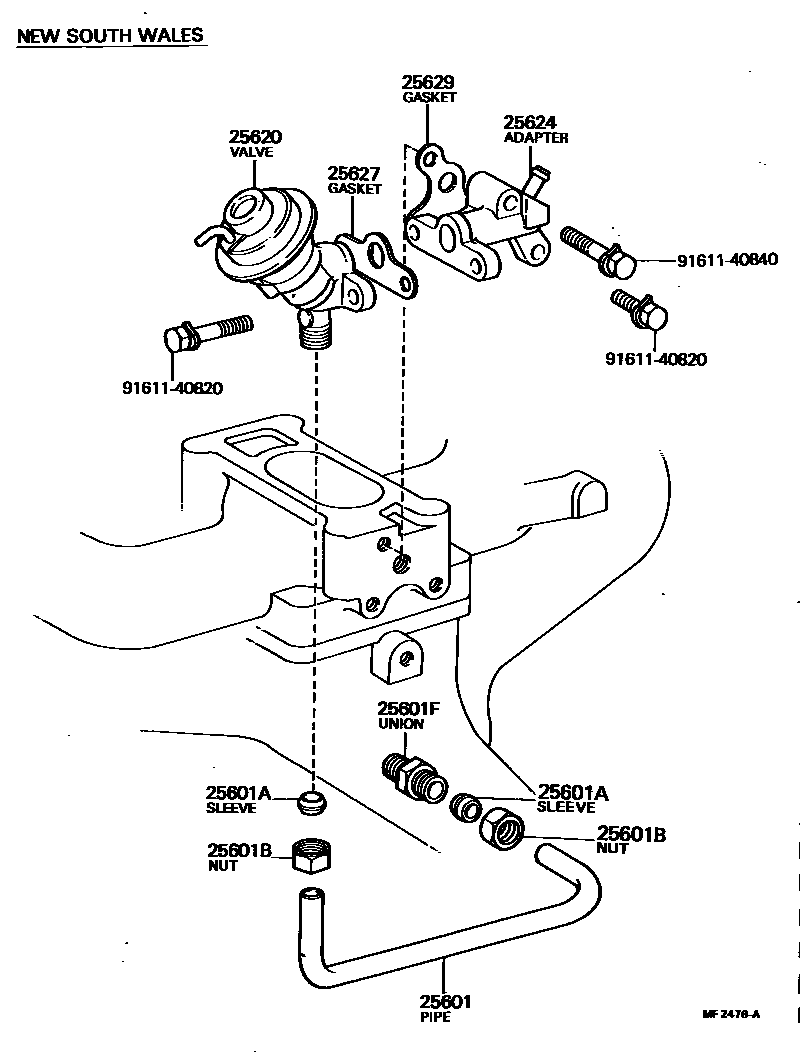

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-31030 · 25601-34020 · 25601-34021 · 25601-34040 · 25601-34041 · 25611-31020 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-12042 · 90410-18038 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-20073 · 90402-26074 |
| 25601C | Hoses (for No. 1 EGR tube) | 90445-20016 |
| 25601F | Connector (for No. 1 EGR tube) | 90404-20001 · 90404-26284 |
| 25620 | EGR valve assembly | 25620-31030 · 25620-31060 · 25620-34150 |
| 25624 | EGR valve adapter | 25607-31020 · 25607-31030 |
| 25625 | EGR valve bracket | 25625-34010 · 25625-34012 · 25625-34020 · 25625-34021 |
| 25627 | EGR valve gasket | 25627-31020 · 25627-44010 |
| 25629 | EGR valve adapter gasket | 25629-31010 · 25629-31020 |
| 25635 | No. 1 EGR tube holder | 25635-34010 · 25635-34021 |
| 25636 | No. 2 EGR tube holder | 25636-34010 · 25636-34020 |
| 25637 | No. 3 EGR tube holder | 25637-34010 · 25637-34021 |
