Toyota HILUX 燃油泵和燃油管 — Figure 2301

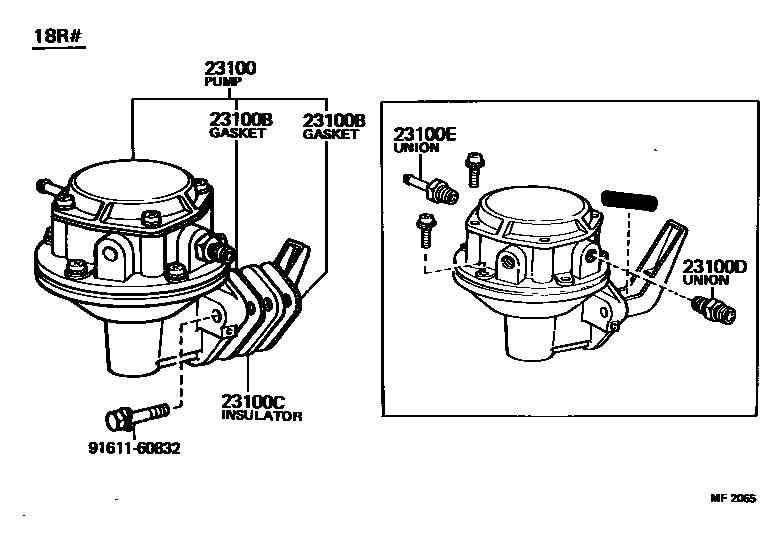

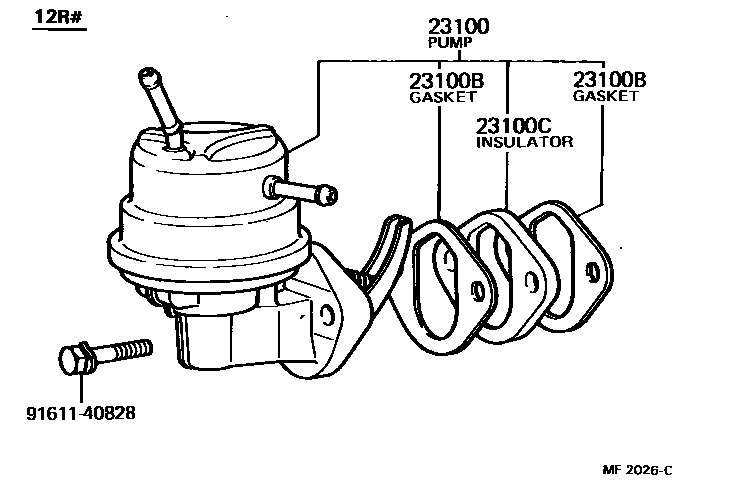

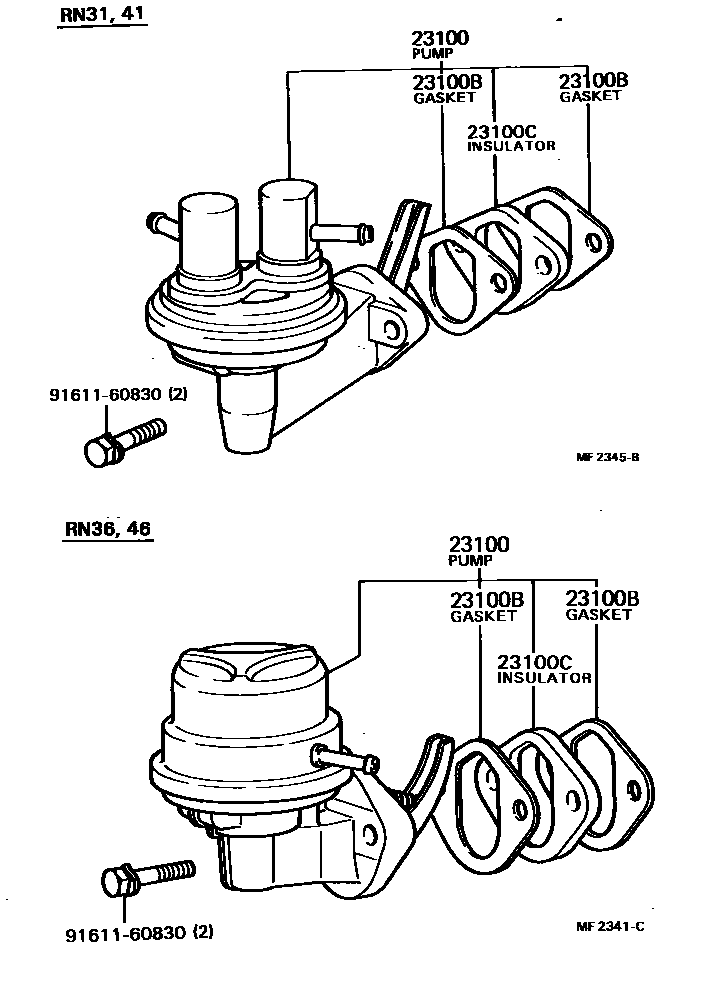

Toyota HILUX EPC diagram 2301, 燃油泵和燃油管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-39117 · 23100-39255 · 23100-39256 · 23100-39285 · 23100-39286 · 23100-39295 · 23100-39296 |
| 23100B | fuel pump gasket | 90923-05005 |
| 23100C | Fuel pump vibration isolation pad | 90923-06001 |
| 23100D | Oil pipe joint (for fuel outlet pipe) | 23119-36020 |
| 23100E | Fuel pipe joint (for fuel inlet pipe) | 23119-45020 |
