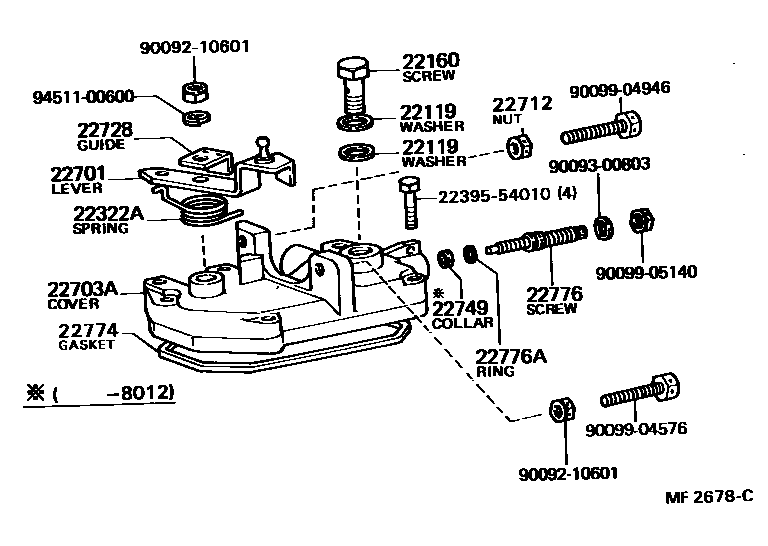

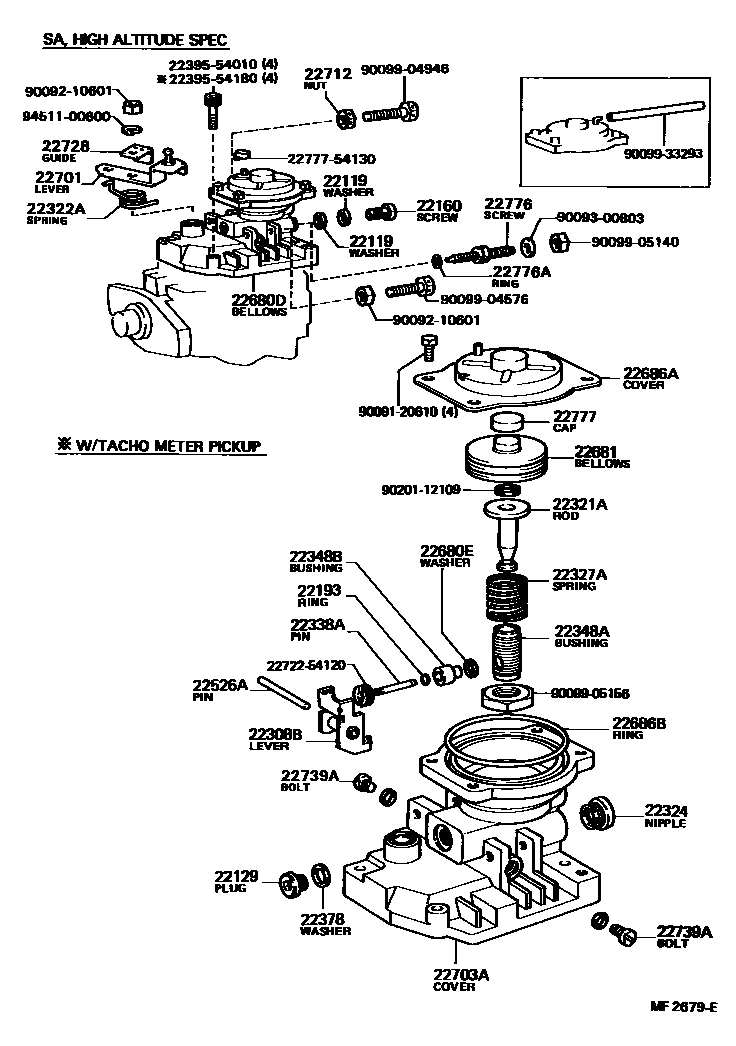

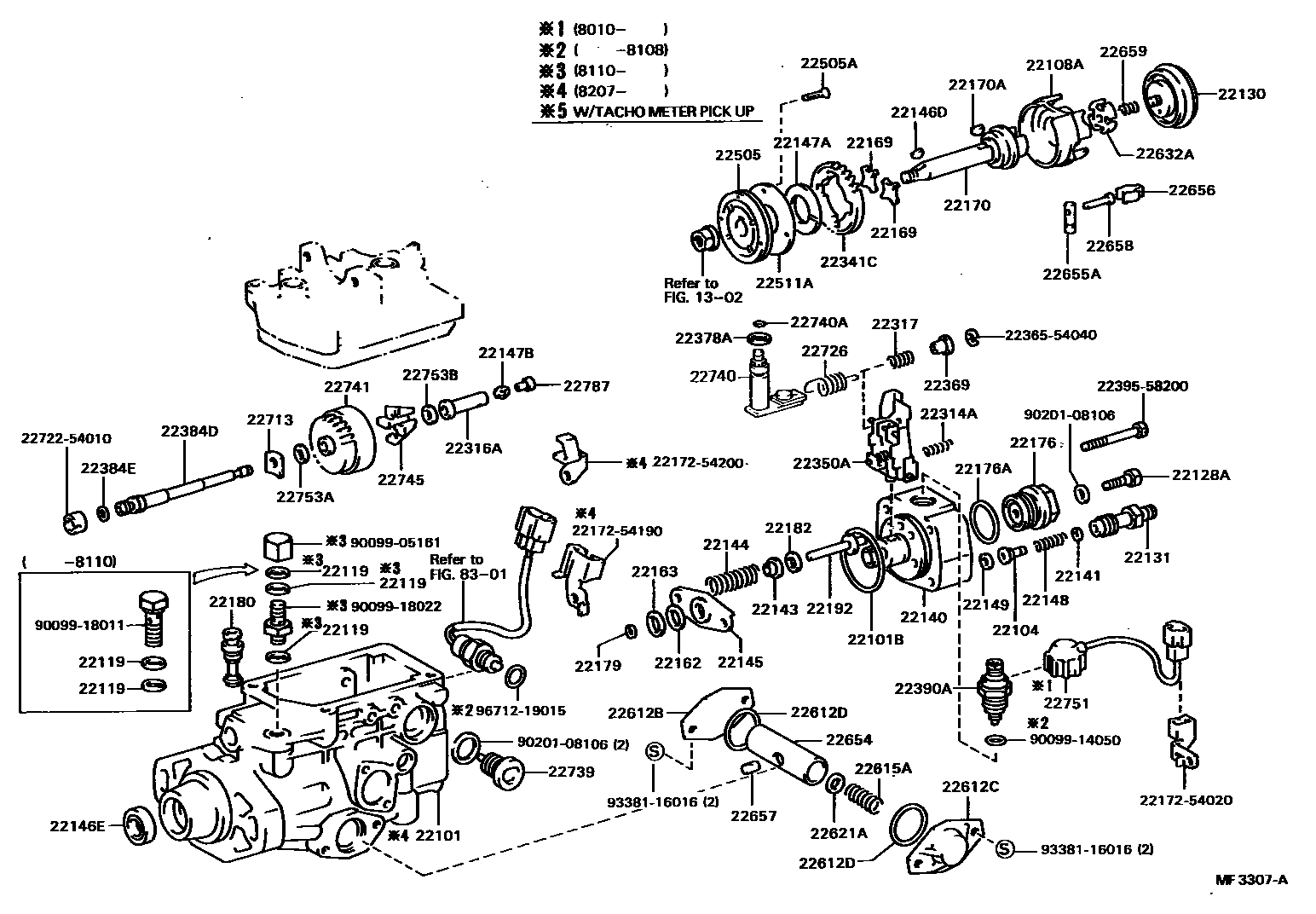

Toyota HILUX 喷油泵体 — Figure 2203
Toyota HILUX EPC diagram 2203, 喷油泵体, with 3 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22101 | Fuel injection pump housing sub-assembly | 22101-54020 · 22101-54120 · 22101-54230 |
| 22101B | O-ring (for fuel injection pump housing) | 90099-14053 |
| 22104 | Fuel injection pump delivery valve sub-assembly | 22104-54060 |
| 22108A | Roller ring sub-assembly | 22108-54010 |
| 22119 | Bleed device oil nozzle gasket | 22119-77020 |
| 22128A | Distributor cover bolts | 22128-54010 |
| 22129 | Threaded plug | 22129-54120 |
| 22130 | Flat cam disc sub-assembly | 22130-54010 |
| 22131 | Oil delivery valve pressing seat | 22131-54110 |
| 22140 | Distributor pump cover sub-assembly | 22140-54260 · 22140-54410 |
| 22141 | Oil delivery valve spring seat | 22141-54010 |
| 22143 | Spring seat | 22143-54010 |
| 22144 | pump plunger spring | 22144-54010 · 22144-54180 |
| 22145 | Spring lower seat | 22145-54010 |
| 22146D | Key (for driving gear) | 90099-13018 |
| 22146E | Seals (for drive shaft) | 90099-15028 |
| 22147A | drive shaft washer | 22161-54010 |
| 22147B | Governor cylinder liner sealing ring | 22147-54010 |
| 22148 | Oil delivery valve spring | 22148-54010 |
| 22149 | Delivery valve gasket | 22149-54010 |
| 22160 | Overflow screw sub-assembly | 22160-54010 · 22160-64010 |
| 22162 | Plunger upper plate | 22162-54010 |
| 22163 | plunger lower plate | 22163-54010 |
| 22169 | Rubber universal joint | 22169-54010 · 22169-54180 |
| 22170 | Drive shaft sub-assembly | 22170-54020 · 22170-54110 · 22170-54180 |
| 22170A | Key (for drive shaft) | 90099-13017 |
| 22176 | Distributor cap screw plug | 22176-54020 |
| 22176A | O-ring (for distributor cap screw plug) | 90099-14052 |
| 22179 | plunger adjustment gasket | 22179-54010 · 22179-54011 · 22179-54012 · 22179-54013 · 22179-54014 · 22179-54015 · 22179-54016 · 22179-54017 · 22179-54018 · 22179-54019 · 22179-54020 |
| 22180 | Regulator valve sub-assembly | 22180-54010 |
| 22182 | Tappet adjustment shim | 22182-54010 · 22183-54010 · 22184-54010 · 22185-54010 · 22186-54010 · 22187-54010 · 22188-54010 |
| 22192 | Plunger spring guide sub-assembly | 22192-54010 |
| 22193 | O-ring (for connecting rod pin) | 22193-54120 |
| 22308B | Control lever sub-assembly | 22308-54140 |
| 22314A | Rod return spring | 22314-54010 |
| 22316A | governor sleeve | 22316-54020 · 22316-54120 · 22316-54180 |
| 22317 | governor damper spring | 22317-54010 |
| 22321A | putter | 22321-54120 |
| 22322A | return spring | 22322-54010 |
| 22324 | Grease nipple (for bellows) | 22324-54120 |
| 22327A | Spring (for bellows) | 22327-54120 |
| 22338A | connecting rod pin | 22338-54120 |
| 22341C | governor driving gear | 22341-54010 |
| 22348A | Conduit bushing | 22348-54120 · 22348-54122 |
| 22348B | Conduit Bushing (for connecting rod pin) | 22348-54121 |
| 22350A | Torque control governor assembly | 22350-54060 |
| 22369 | governor spring seat | 22369-54010 |
| 22378 | Drain screw washer | 22378-76010 |
| 22378A | Governor Thrust Washer | 22378-54010 |
| 22384D | governor shaft | 22380-54020 |
| 22384E | O-ring (for governor spindle) | 90099-14049 |
| 22390A | Fuel cut-off solenoid valve assembly | 22390-54010 · 22390-54110 |
| 22505 | Fuel supply pump sub-assembly | 22505-54010 |
| 22505A | Screw (for oil supply pump) | 90099-00723 |
| 22511A | Oil supply pump cover | 22511-54020 |
| 22526A | rod support pin | 22526-54120 |
| 22612B | Timer cover | 22612-54010 |
| 22612C | Timer cover | 22612-54020 |
| 22612D | O-ring (for timing cover) | 90099-14051 |
| 22615A | Timer outer spring | 22615-54020 · 22615-54030 |
| 22621A | Timer adjustment washer | 22621-54010 · 22622-54010 · 22624-54010 |
| 22632A | Fuel injection pump coupling | 22632-54010 |
| 22654 | Timer piston | 22654-54010 |
| 22655A | Timer sliding pin | 22655-54010 |
| 22656 | Timer clip | 22656-54010 |
| 22657 | Timer clip | 22657-54010 |
| 22658 | Timer block | 22658-54010 |
| 22659 | coupling spring | 22659-54010 · 22659-64150 |
| 22680D | Pneumatic bellows assembly | 22680-54140 |
| 22680E | Copper flat washer | 90099-01473 |
| 22681 | Pneumatic bellows sub-assembly | 22681-54120 |
| 22686A | Air pressure bellows cover | 22682-54120 |
| 22686B | O-ring (for bellows cover) | 90099-14057 |
| 22701 | Adjustment rod sub-assembly | 22701-54042 · 22701-54043 · 22701-54120 · 22701-54121 |
| 22703A | Speed governor cover sub-assembly | 22703-54020 · 22703-54140 · 22703-54141 |
| 22712 | Rocker nut | 22775-77121 |
| 22713 | Governor gear adjustment washer | 22713-54010 · 22714-54010 · 22715-54010 · 22716-54010 · 22717-54010 |
| 22726 | speed control spring | 22726-54060 |
| 22728 | return spring guide | 22728-54010 |
| 22739 | Speed governor connecting rod bracket bolt | 22739-54020 |
| 22739A | No. 2 speed governor connecting rod bracket bolt | 22739-54120 |
| 22740 | Speed governor adjusting shaft sub-assembly | 22740-54010 |
| 22740A | O-ring (for speed governor adjustment shaft) | 90099-14048 |
| 22741 | Advancer flyweight fixing part sub-assembly | 22741-54020 |
| 22745 | Distribution pump advancer fly hammer | 22745-54010 |
| 22749 | Smoke assembly adjustment collar | 22749-54010 · 22749-54011 · 22749-54012 · 22749-54013 · 22749-54014 · 22749-54015 · 22749-54016 · 22749-54017 · 22749-54018 · 22749-54019 |
| 22751 | Fuel cut-off solenoid valve wiring harness sub-assembly | 22751-54110 |
| 22753A | No. 1 advancer fly weight washer | 22753-54010 |
| 22753B | No. 2 advancer fly weight washer | 22753-54020 |
| 22774 | governor cover gasket | 22774-54010 |
| 22776 | Smoke assembly adjustment screw | 22776-54010 · 22776-54110 |
| 22776A | O-ring (for smoke assembly screw) | 90099-14047 |
| 22777 | Rubber cap (for bellows) | 22777-54120 |
| 22787 | governor bushing plug | 22787-54018 · 22787-54019 · 22787-54020 · 22787-54021 · 22787-54022 · 22787-54023 · 22787-54024 · 22787-54025 |
