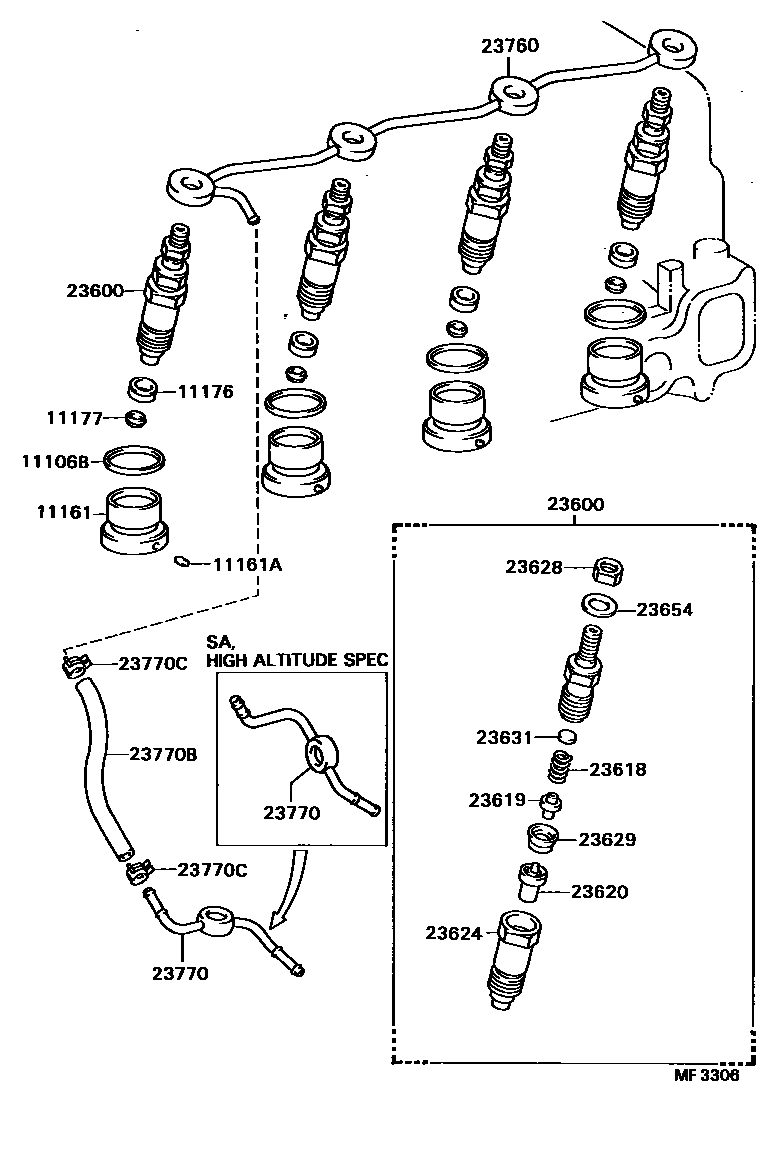

Toyota HILUX 喷油嘴 — Figure 2201
Toyota HILUX EPC diagram 2201, 喷油嘴, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11106B | Gasket (for combustion chamber) | 11165-54010 · 11165-54011 · 11166-54010 · 11166-54011 · 11167-54010 · 11167-54011 · 11168-54010 · 11168-54011 |
| 11161 | combustion chamber | 11161-54031 · 11161-54032 · 11161-54040 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11176 | Injector seat | 11176-56010 |
| 11177 | Injector seat gasket | 11177-47010 · 11177-54010 |
| 23600 | Injector body and injector assembly | 23600-54020 |
| 23618 | Injector body pressure adjustment spring | 23618-54020 |
| 23619 | Injector body compression pin | 23619-46010 |
| 23620 | Fuel injector assembly | 23620-54020 |
| 23624 | Fuel injector fixing nut | 23624-54020 |
| 23628 | Nut (for fixing the sealing ring) | 23628-46010 |
| 23629 | Spacer (for fuel injector) | 23629-46010 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-46010 · 23632-46010 · 23633-46010 · 23634-46010 · 23635-46010 · 23636-46010 · 23637-46010 · 23638-46010 · 23639-46010 · 23641-46010 · 23642-46010 · 23643-46010 · 23644-46010 · 23645-46010 · 23646-46010 · 23647-46010 · 23648-46010 · 23649-46010 · 23651-46010 · 23652-46010 |
| 23654 | Gasket (for sealing ring) | 23654-46010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-54010 · 23760-54011 |
| 23770 | No. 2 injector oil spill pipe assembly | 23764-54010 · 23764-54020 · 23764-54021 · 23764-54030 · 23764-54031 · 23764-54050 |
| 23770C | Clip or clip (for fuel hose assembly) | 96132-30400 |
