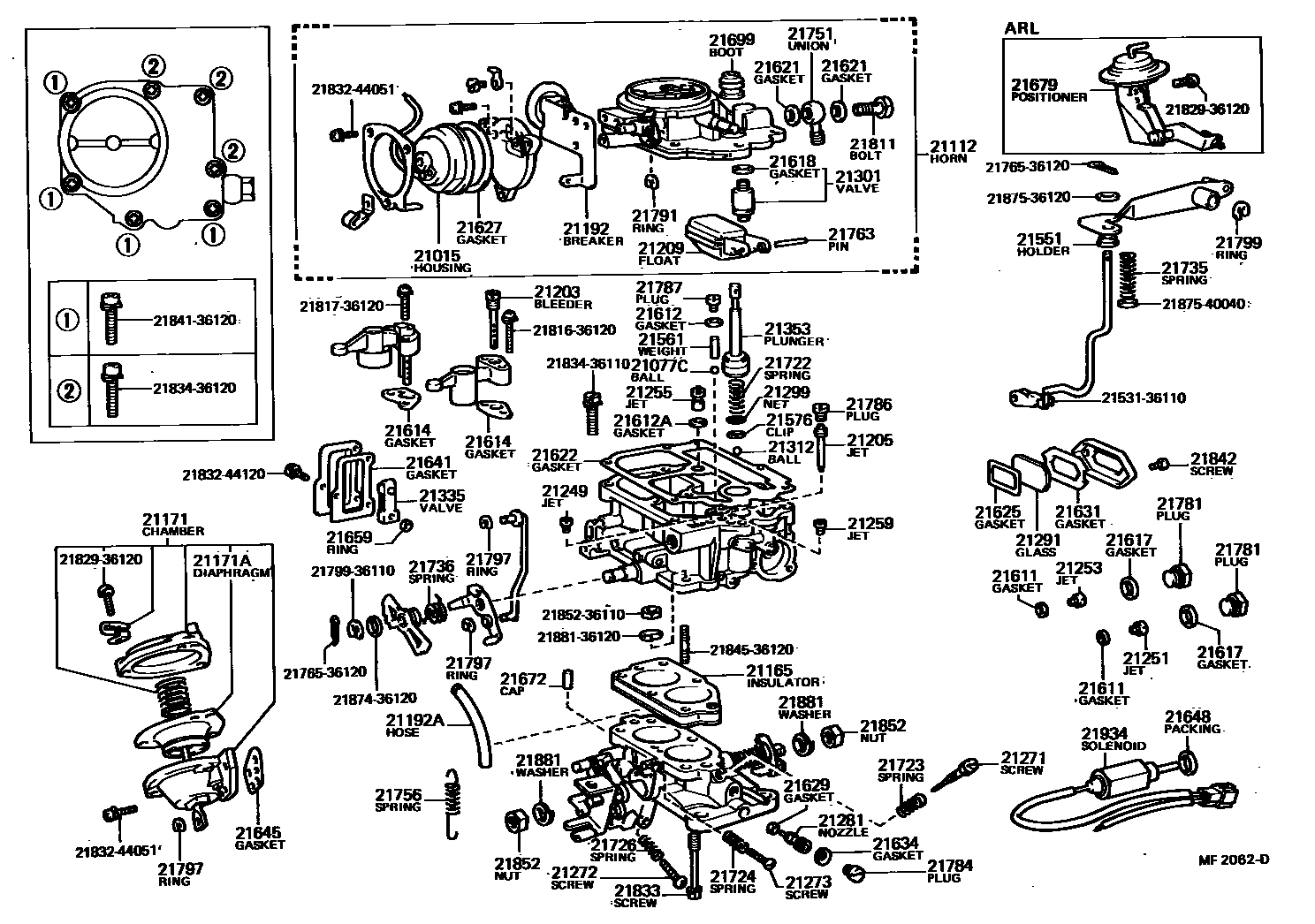

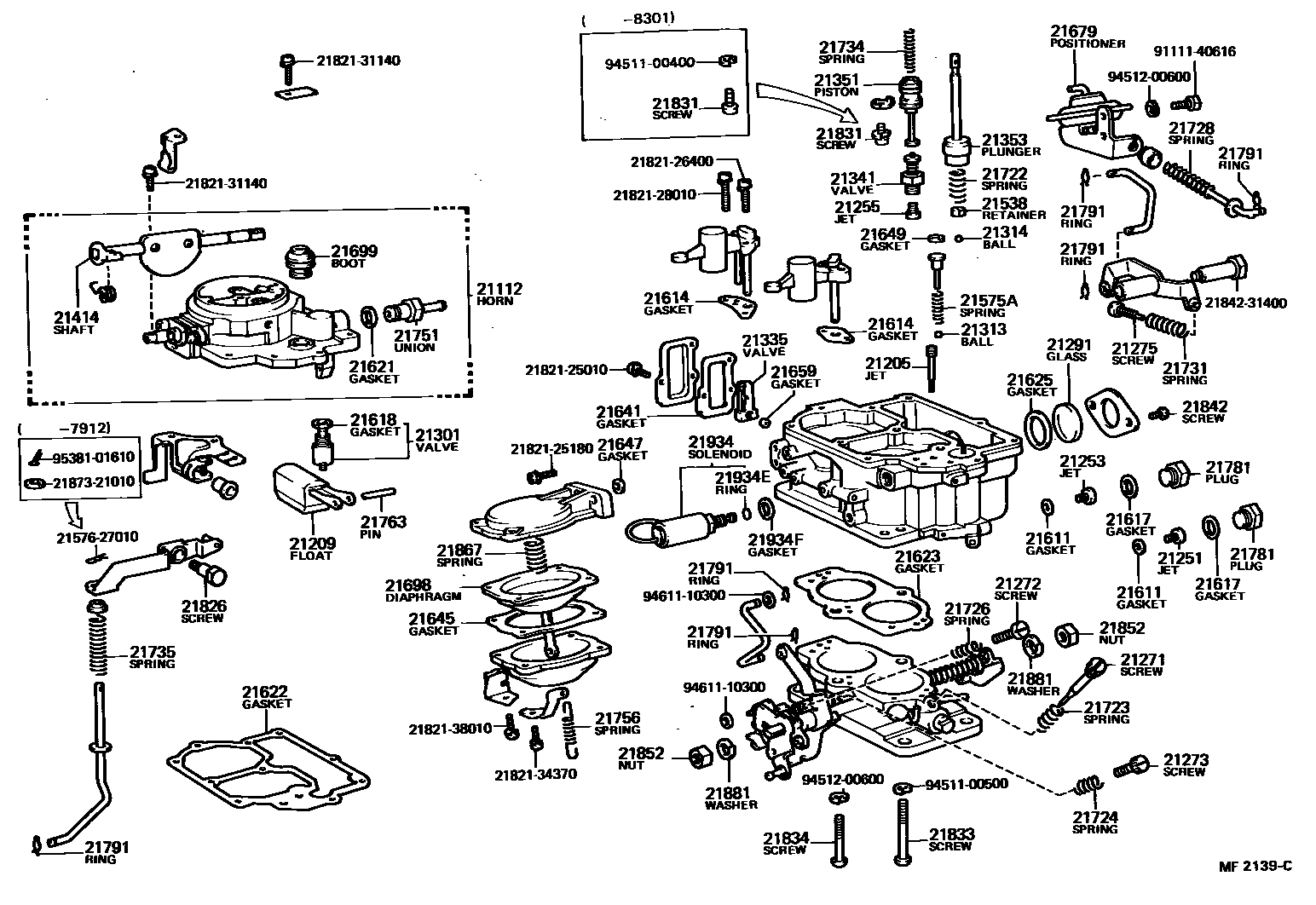

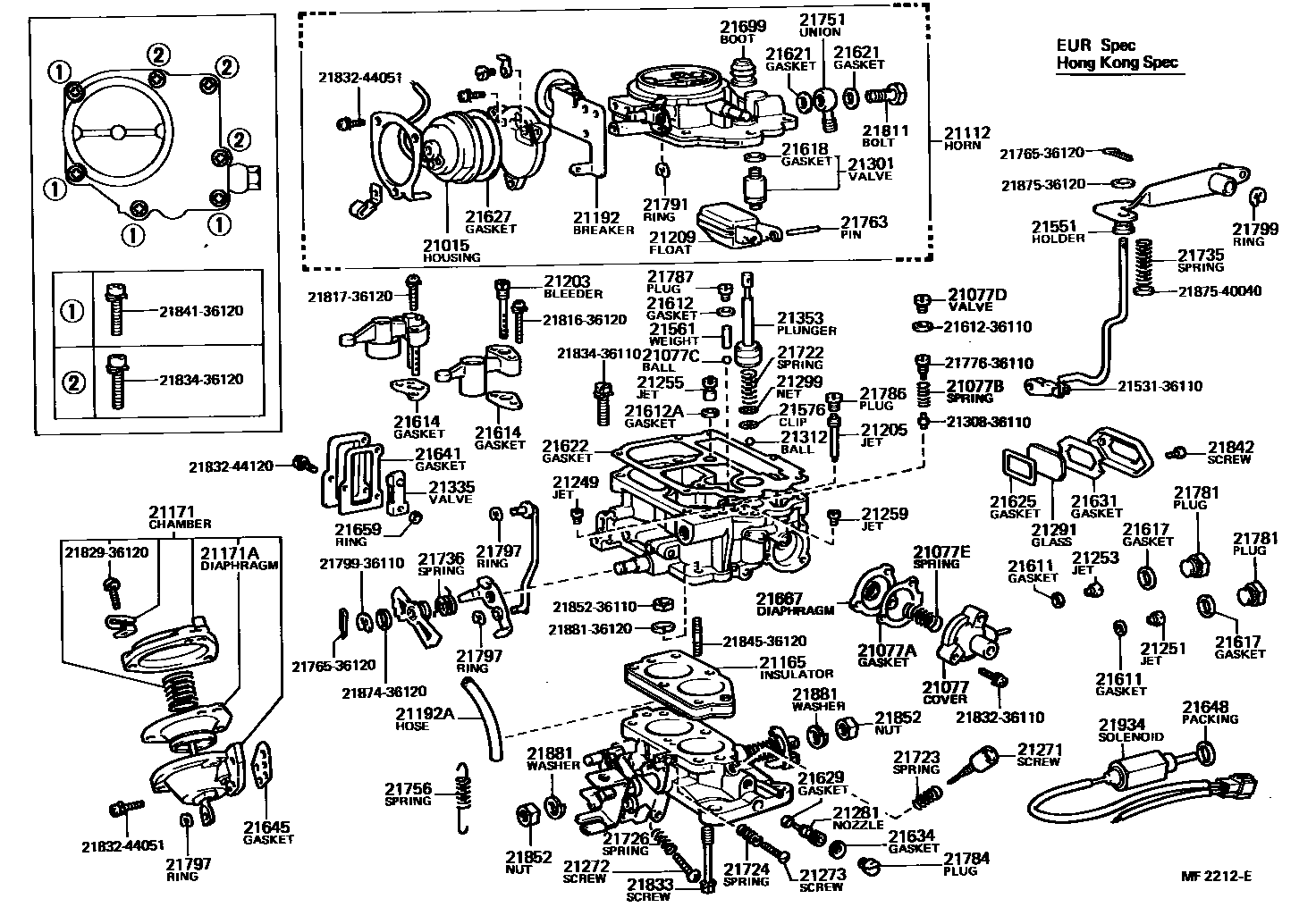

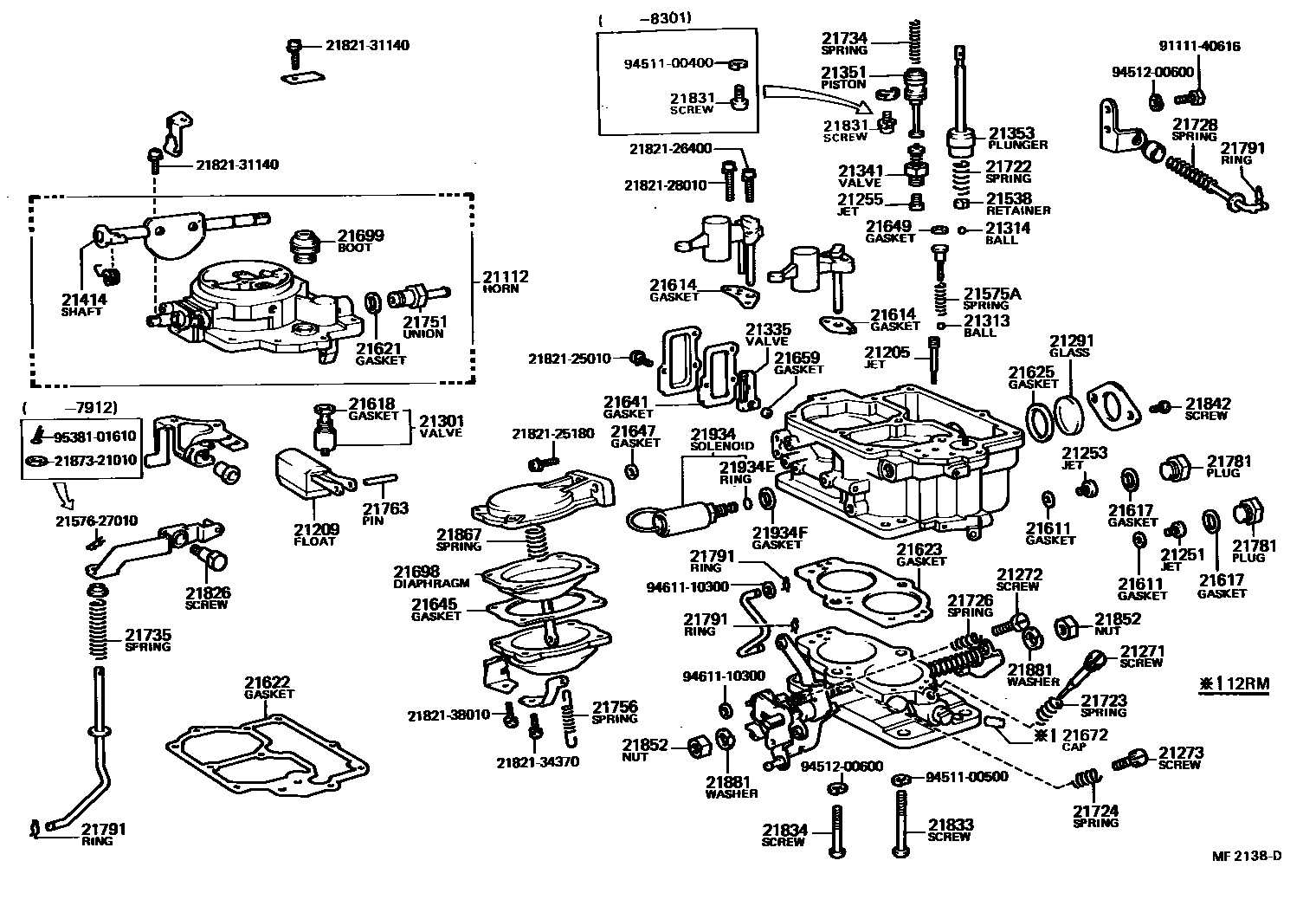

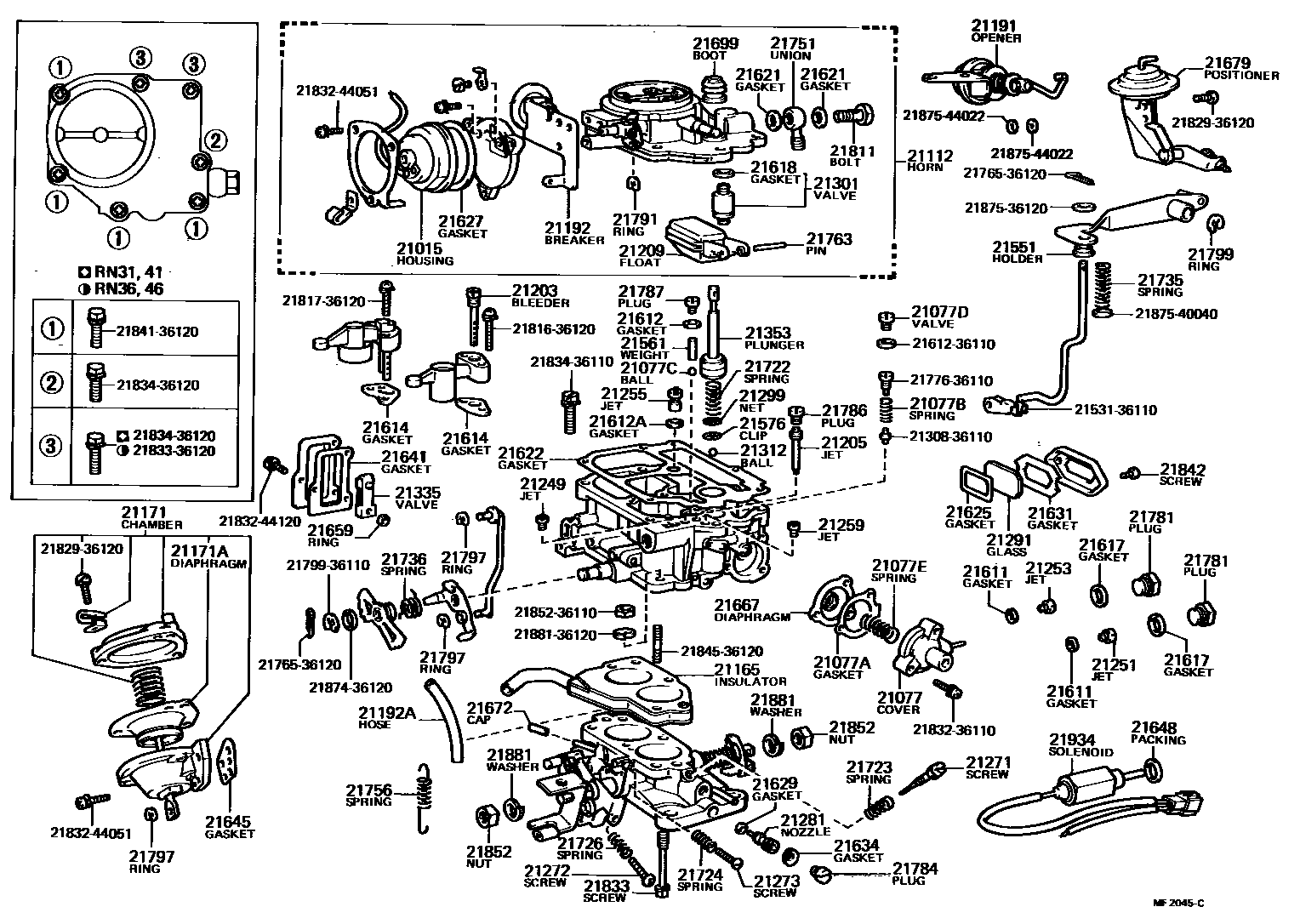

Toyota HILUX 化油器 — Figure 2103
Toyota HILUX EPC diagram 2103, 化油器, with 5 images and 99 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21141-34400 · 21141-34430 |
| 21077 | Cover (for auxiliary accelerator pump) | 21399-34400 |
| 21077A | Pad (for auxiliary accelerator pump) | 21638-36110 |
| 21077B | Spring (for auxiliary accelerator pump) | 21737-36110 |
| 21077C | Steel ball (for auxiliary accelerator pump) | 21312-40020 |
| 21077D | Check valve (for auxiliary accelerator pump) | 21308-34400 |
| 21077E | Spring (for auxiliary accelerator pump cover) | 21747-36110 |
| 21112 | Air intake bell mouth | 21012-34510 · 21012-34512 · 21012-34530 · 21012-34531 · 21012-34560 · 21012-34561 · 21012-34570 · 21012-34571 · 21112-31410 |
| 21165 | Vibration isolation pad | 21106-34400 · 21106-34420 |
| 21171 | diaphragm chamber | 21171-34400 · 21171-36120 |
| 21171A | Diaphragm (for diaphragm chamber) | 21173-36120 |
| 21191 | opener | 21052-34570 |
| 21192 | breaker | 21502-36110 |
| 21192A | Hose No. 1 (for breaker) | 21681-36120 · 95411-10730 |
| 21203 | First main bleed device sub-assembly | 21203-34400 · 21203-36120 |
| 21205 | Idle speed measuring hole assembly | 21205-15010 · 21205-26390 · 21205-31430 · 21205-34400 · 21205-36120 |
| 21209 | Float sub-assembly | 21209-33080 · 21209-36120 |
| 21249 | No. 2 air release hole | 21249-34410 · 21249-36120 |
| 21251 | first main measuring hole | 21251-34400 · 21251-36110 · 90999-41099 · 90999-41101 · 90999-41106 |
| 21253 | Deputy main measuring hole | 21253-34400 · 21253-36110 · 90999-42162 · 90999-42165 |
| 21255 | Power measuring hole | 21302-36110 · 21302-44122 · 90999-43047 · 90999-43053 |
| 21259 | Bleeding hole | 21259-34400 · 21259-36120 |
| 21271 | Idle speed adjustment screw | 21207-34420 · 21271-31250 · 21271-31330 · 21271-31430 · 21271-34400 · 21271-38010 |
| 21272 | First gear idle speed adjustment screw | 21273-30052 · 21833-36110 |
| 21273 | Throttle adjustment screw | 21273-34401 · 21844-33010 |
| 21275 | Adjustment screw | 21842-31280 |
| 21281 | Idle fuel injector | 21281-36110 |
| 21291 | oil level gauge glass | 21291-34320 · 21291-36120 · 21291-60200 |
| 21299 | pump filter strainer | 21299-36120 |
| 21301 | Needle valve sub-assembly | 21301-14010 · 21301-26350 · 21301-34400 |
| 21312 | steel ball | 21312-40020 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 |
| 21335 | thermostat valve | 21038-34400 · 21038-36120 · 21335-33010 · 21335-44400 |
| 21341 | enrichment valve | 21304-30010 |
| 21351 | enrichment piston | 21351-33080 |
| 21353 | pump plunger | 21353-33010 · 21353-44101 |
| 21414 | choke shaft | 21054-31280 |
| 21538 | One way ball fixing | 21538-31010 |
| 21551 | Return spring retainer | 21551-36120 |
| 21561 | Pump drain counterweight | 21561-36120 |
| 21575A | Spring (for stopper B) | 21864-26020 |
| 21576 | Pump filter clip | 21576-36120 |
| 21611 | Main gage hole gasket | 21611-22010 · 21611-40021 |
| 21612 | Enrichment valve gasket | 21612-36120 |
| 21612A | Power gauge hole gasket | 21612-31100 |
| 21614 | Venturi gasket | 21614-33010 · 21614-33080 · 21614-36120 · 21639-36120 |
| 21617 | Main oil gallery plug gasket | 21617-30010 · 21633-44150 |
| 21618 | Needle seat gasket | 21618-14010 · 21618-24030 · 21643-36110 |
| 21621 | Oil pipe joint gasket | 21633-24030 · 21637-36120 |
| 21622 | Air intake bell gasket | 21622-26510 · 21622-36120 |
| 21623 | Body hem pads | 21623-31400 |
| 21625 | oil level gauge gasket | 21625-36120 · 21655-60200 |
| 21627 | Coil housing gasket | 21642-36110 |
| 21629 | Idle injector gasket | 21626-36110 |
| 21631 | main duct gasket | 21631-36120 |
| 21634 | Idle oil gallery plug gasket | 21634-36120 |
| 21641 | Gasket (for thermostat valve cover) | 21626-36120 · 21641-23012 |
| 21645 | Diaphragm cover gasket | 21638-36120 · 21645-33080 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21648 | Seal (for idle valve cover) | 21637-36120 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 · 21655-31100 |
| 21667 | Diaphragm | 21173-36110 |
| 21672 | cover | 21582-36110 · 21672-31140 · 90339-03005 |
| 21679 | locator | 21099-36110 · 21679-31400 · 21679-31440 |
| 21698 | Diaphragm | 21669-31400 |
| 21699 | Dust boot (for pump plunger) | 21656-36110 · 21699-21061 · 21699-28150 |
| 21722 | Pump damping spring | 21722-22010 · 21735-36120 |
| 21723 | Idle speed adjustment spring | 21723-21030 · 21723-30030 |
| 21724 | Throttle valve adjustment spring | 21724-30030 · 21726-40010 |
| 21726 | First gear idle speed adjustment spring | 21723-21030 · 21723-30030 |
| 21728 | Throttle return spring | 21864-31400 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21726-40010 |
| 21734 | Thickening piston spring | 21734-33081 |
| 21735 | Pump rod spring | 21722-36120 · 21735-21032 |
| 21736 | First gear idle cam spring | 21748-36110 |
| 21751 | Oil pipe joint | 21751-24290 · 21751-36110 · 21751-36200 |
| 21756 | Return spring (for throttle shaft) | 21727-36120 · 21756-31400 |
| 21763 | floating lever pin | 21763-26350 · 21768-36110 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21776-44310 · 21781-15230 · 21781-30020 |
| 21784 | Idle oil passage plug | 21787-36110 |
| 21786 | Pump oil passage plug | 21787-36120 |
| 21787 | Acceleration nozzle plug | 21787-31030 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-60010 · 21797-44050 |
| 21797 | No. 4 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21799 | Top E-ring | 21799-40020 |
| 21811 | Oil pipe joint bolt | 21811-36110 |
| 21826 | Pump rod fixing screw | 21826-31012 |
| 21831 | Enrichment piston limit screw | 21821-15060 · 21842-33010 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21804-36120 · 21824-31400 · 21844-34400 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21824-31570 · 21824-38010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21832-36120 · 21842-33010 |
| 21852 | Throttle lever retaining nut | 21852-30010 · 21852-36120 |
| 21867 | diaphragm spring | 21867-31280 |
| 21881 | Lock washer (for throttle shaft) | 21881-31030 · 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-38010 · 21062-38011 · 21391-36110 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 |
