Toyota HILUX Manifold — Figure 1701

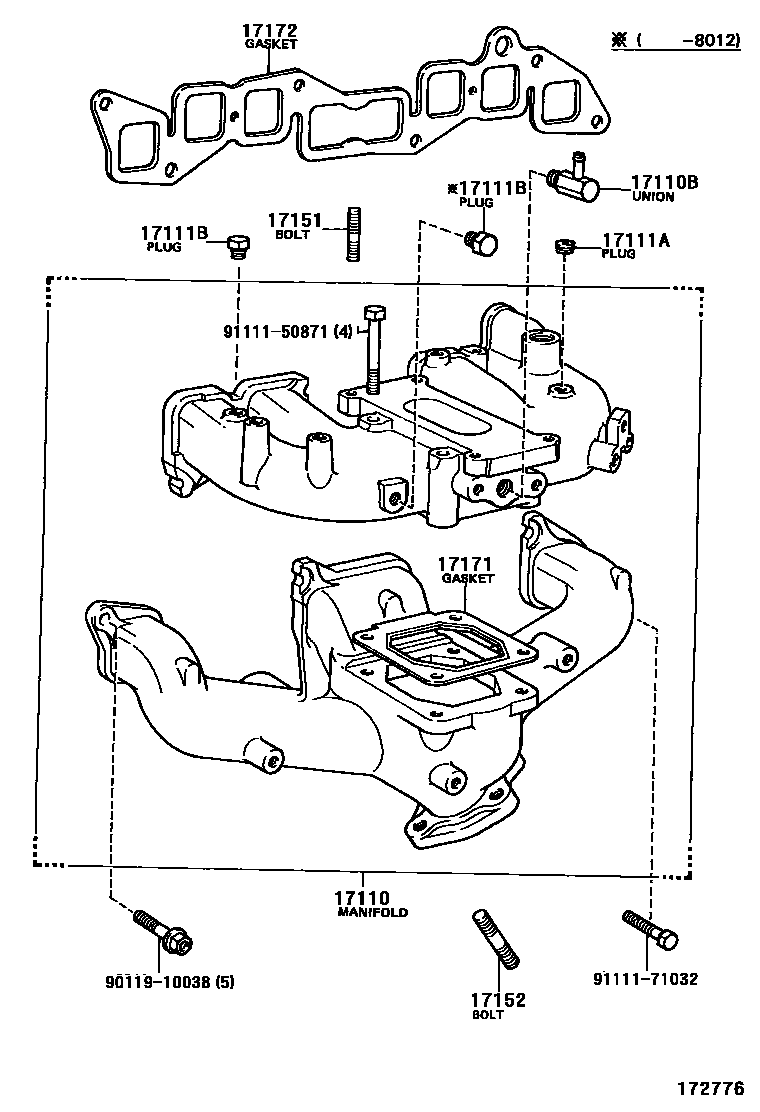

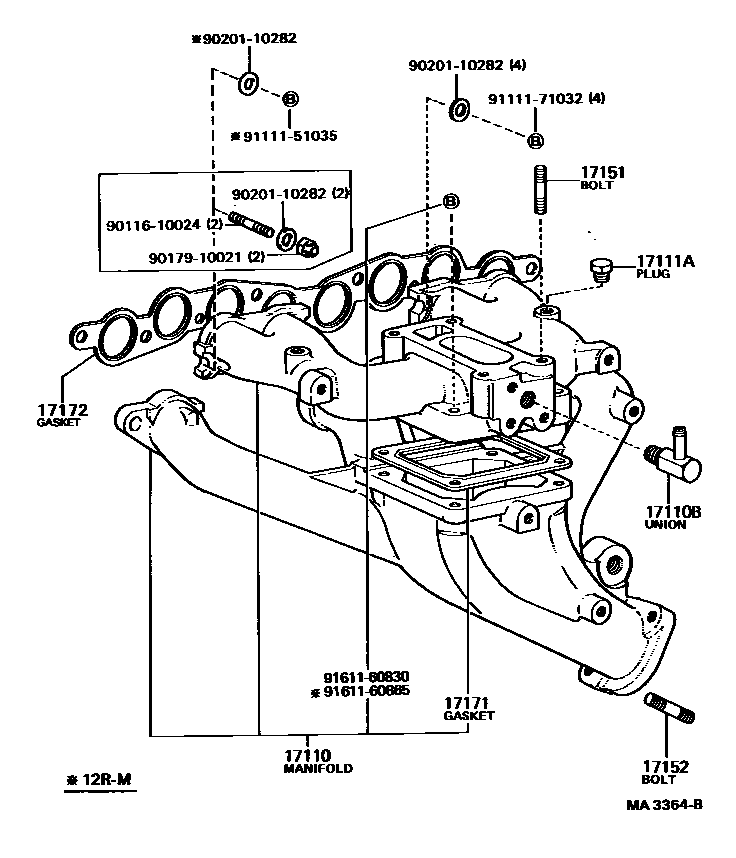

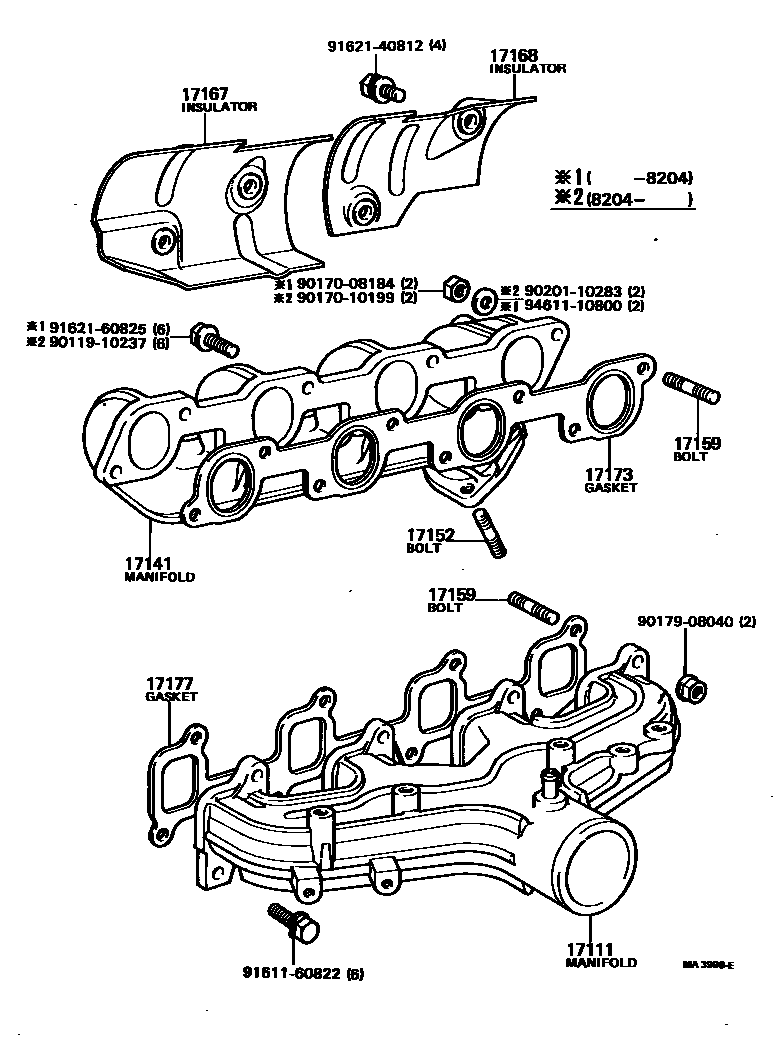

Toyota HILUX EPC diagram 1701, Manifold, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17110 | Manifold assembly | 17110-31090 · 17110-31100 · 17110-31120 · 17110-34081 · 17110-34082 · 17110-34083 · 17110-34090 · 17110-34091 · 17110-34092 · 17110-34110 · 17110-34111 · 17110-34112 · 17110-36011 · 17110-36012 · 17110-36013 |
| 17110B | Fitting (for vent hose to manifold) | 90407-09002 · 90407-09003 · 90407-10040 |
| 17111 | Intake Manifold | 17101-54011 · 17101-54030 · 17101-54040 |
| 17111A | No. 1 screw plug | 90344-51001 · 90344-51010 · 90344-51014 · 90345-51025 |
| 17111B | No. 2 screw plug | 90072-34107 |
| 17141 | exhaust manifold | 17141-54011 · 17141-54012 · 17141-54040 |
| 17151 | Studs (for manifold to carburetor) | 90116-08052 · 90116-08320 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10027 · 90116-10042 · 90116-10071 · 90116-10088 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08053 · 90116-10027 · 90116-10071 · 90116-10088 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-54010 · 17167-54011 · 17167-54040 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-54010 · 17168-54011 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-31020 · 17171-34021 · 17171-40010 · 17171-44010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-31020 · 17172-31021 · 17172-34020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-54010 · 17173-54011 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-54010 · 17177-54011 |
