Toyota HILUX Water Pump — Figure 1601

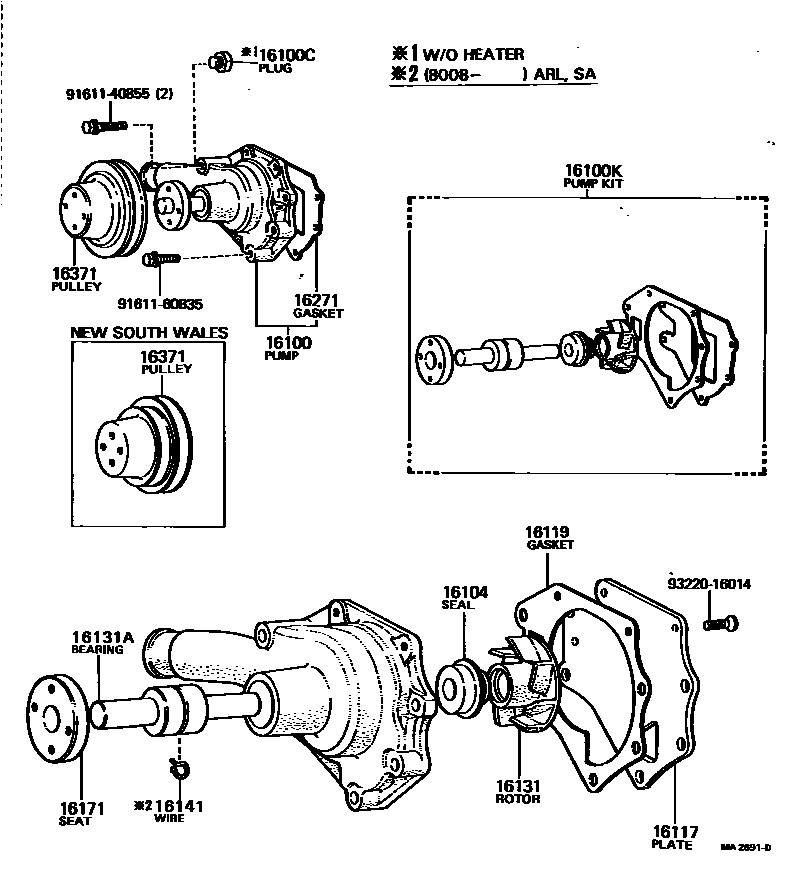

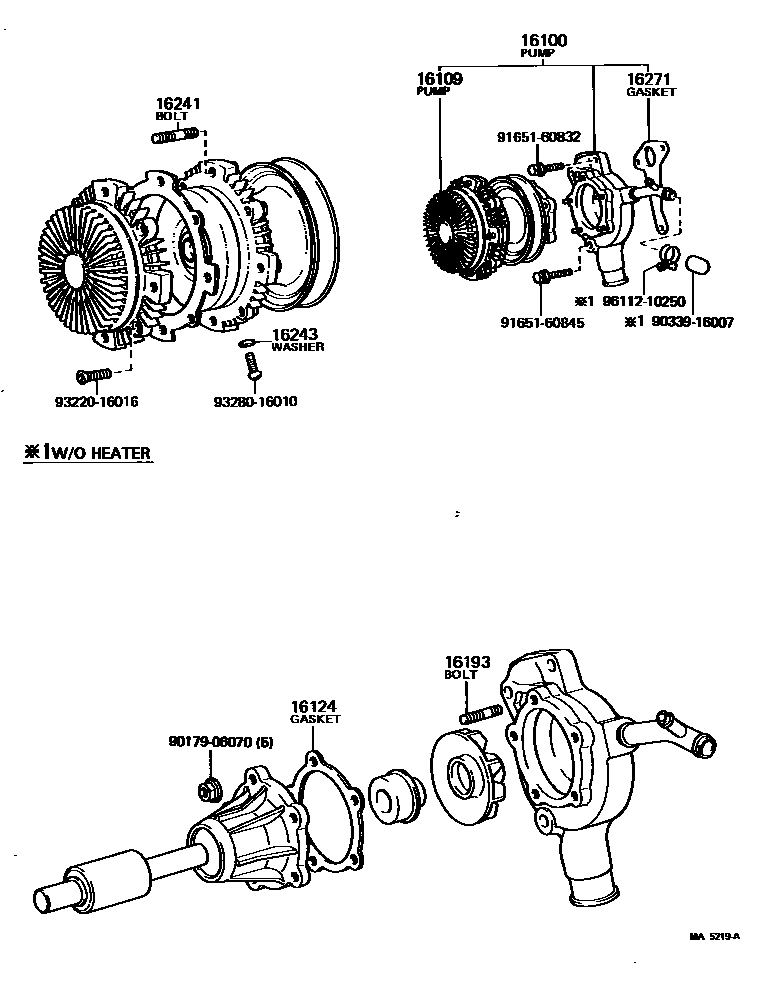

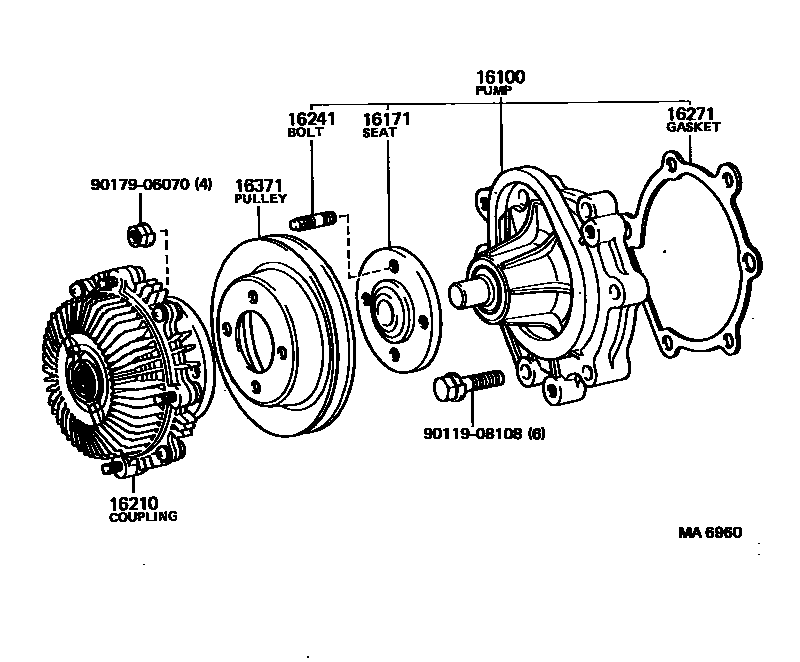

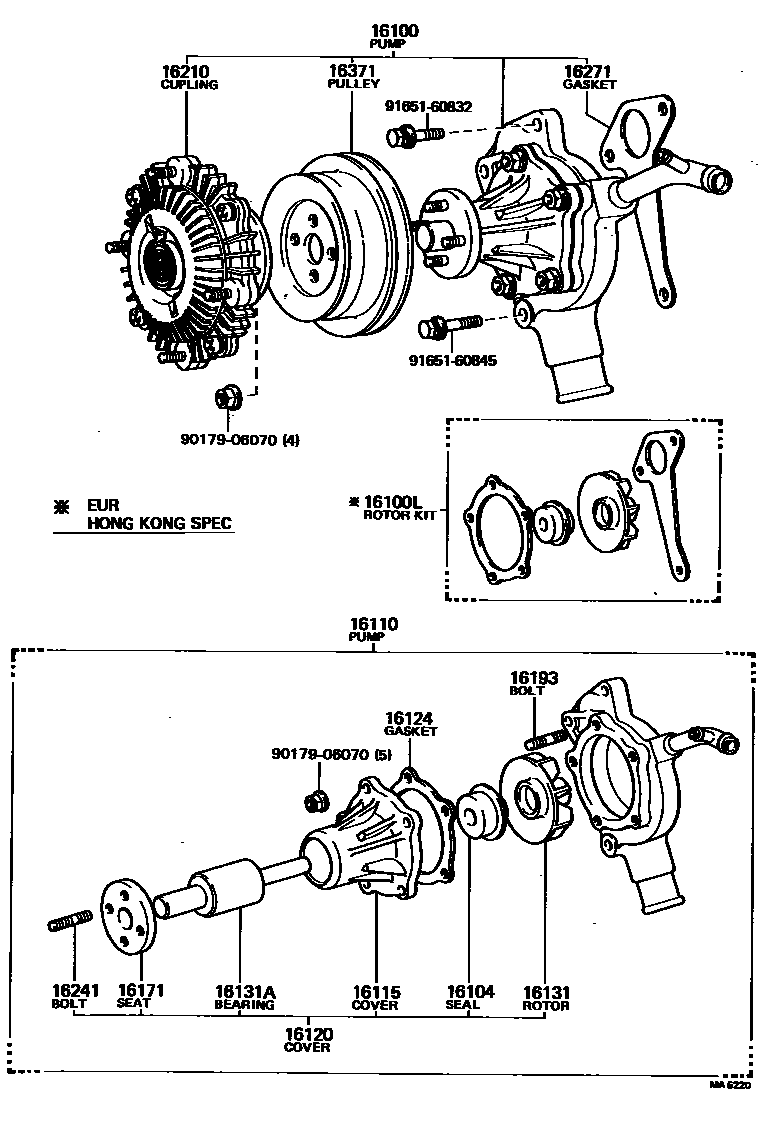

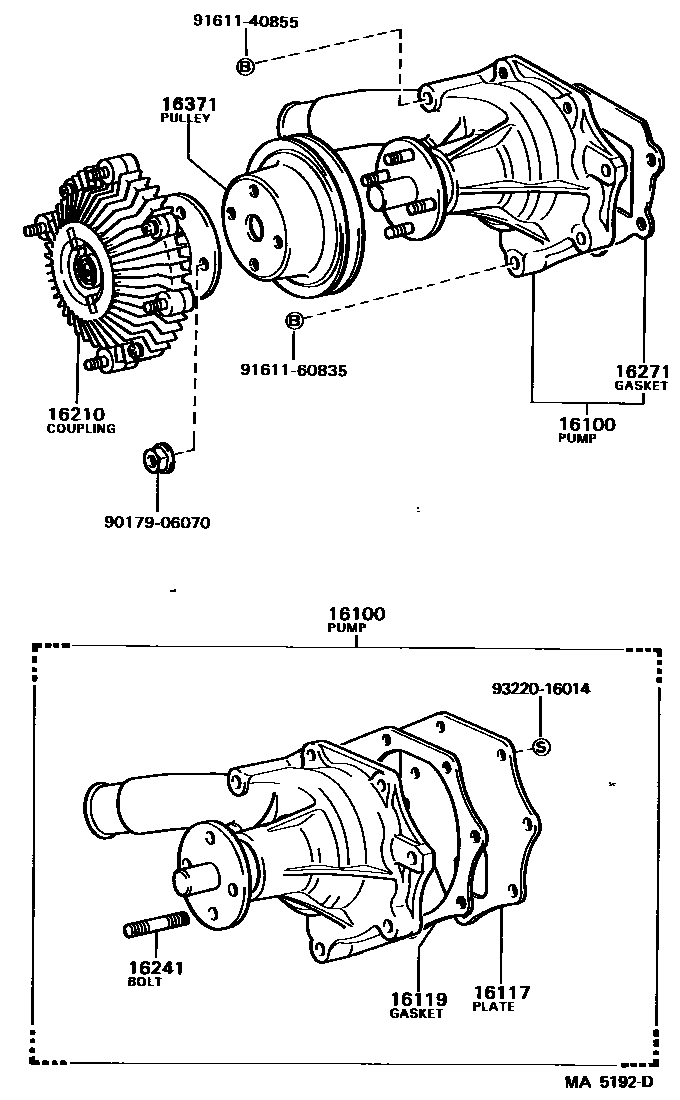

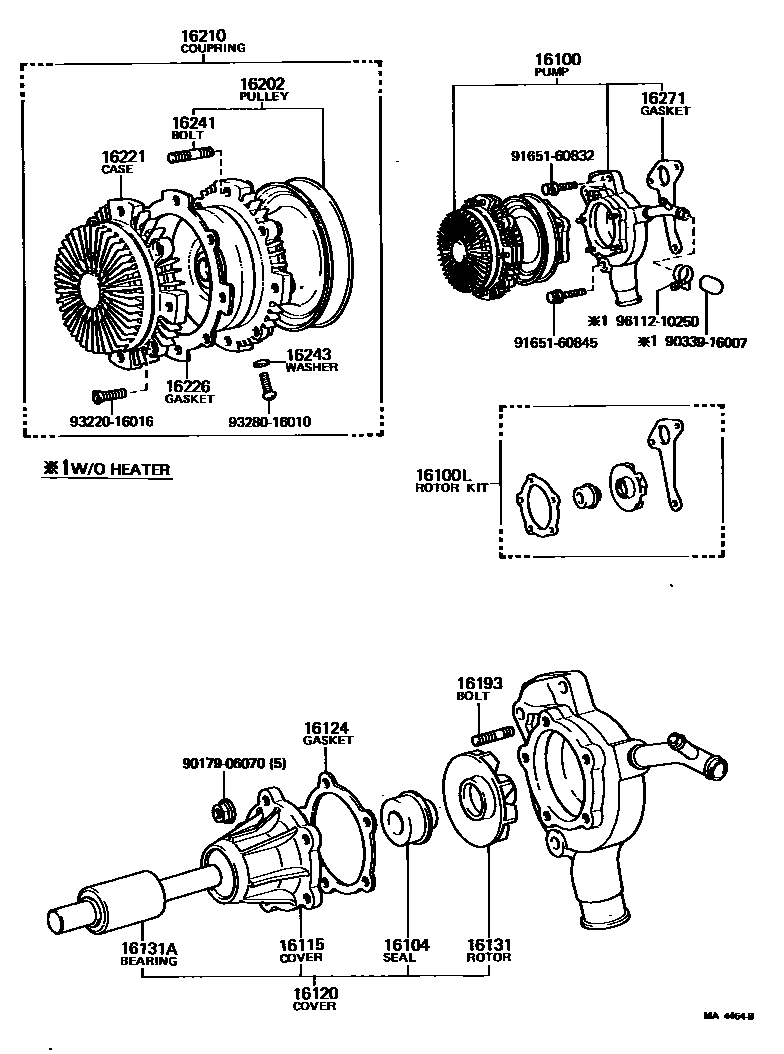

Toyota HILUX EPC diagram 1601, Water Pump, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39116 · 16100-39215 · 16100-39236 · 16100-39245 · 16100-39275 · 16100-39285 · 16100-39295 · 16100-39305 · 16100-59047 · 16100-59049 · 16100-59125 · 16100-59126 · 16100-59127 |
| 16100C | Headed tapered thread plug | 90345-54002 · 90345-54004 · 90345-54005 |
| 16100K | Water pump components | 04161-31023 · 04161-31030 |
| 16100L | Water pump rotor assembly | 04162-34010 |
| 16104 | Water pump seal components | 16104-41110 · 16104-41111 |
| 16109 | Water pump sub-assembly | 16109-34110 |
| 16110 | Water pump assembly without coupling | 16110-34100 |
| 16115 | water pump cover | 16115-41110 |
| 16117 | water pump plate | 16117-31031 |
| 16119 | Water pump body gasket | 16124-31031 |
| 16120 | water pump cover assembly | 16120-34090 · 16120-34100 · 16120-34101 |
| 16124 | water pump cover gasket | 16129-33030 |
| 16131 | water pump rotor | 16131-31031 · 16131-41110 |
| 16131A | water pump bearings | 90369-30003 · 90369-30005 · 90369-30022 · 90369-30028 |
| 16141 | Water pump bearing retainer wire harness | 16141-60010 |
| 16171 | water pump pulley seat | 16171-24030 · 16171-24031 · 16171-54010 · 16171-54011 |
| 16193 | Studs (for water pump cover) | 16193-33030 |
| 16202 | Hydraulic coupler pulley and bearing housing sub-assembly | 16202-34090 |
| 16210 | Hydraulic coupler assembly | 16210-31010 · 16210-34090 · 16210-34102 · 16210-34130 · 16210-54040 |
| 16221 | Fluid coupler housing | 16221-45010 |
| 16226 | Fluid coupling shell gasket | 16226-45010 |
| 16241 | Stud bolts (for water pump coupling) | 16193-13020 · 16193-33030 · 16193-54010 · 16241-40030 |
| 16243 | Flat washer (for water pump) | 16243-40030 |
| 16271 | water pump gasket | 16271-31010 · 16271-33010 · 16271-54010 · 16271-54011 · 16271-54012 |
| 16371 | fan pulley | 16173-34100 · 16308-31010 · 16371-31022 · 16371-31030 · 16371-54010 |
