Toyota HILUX Oil Filter — Figure 1502

Toyota HILUX EPC diagram 1502, Oil Filter, with 4 images and 9 PNC and OE references.

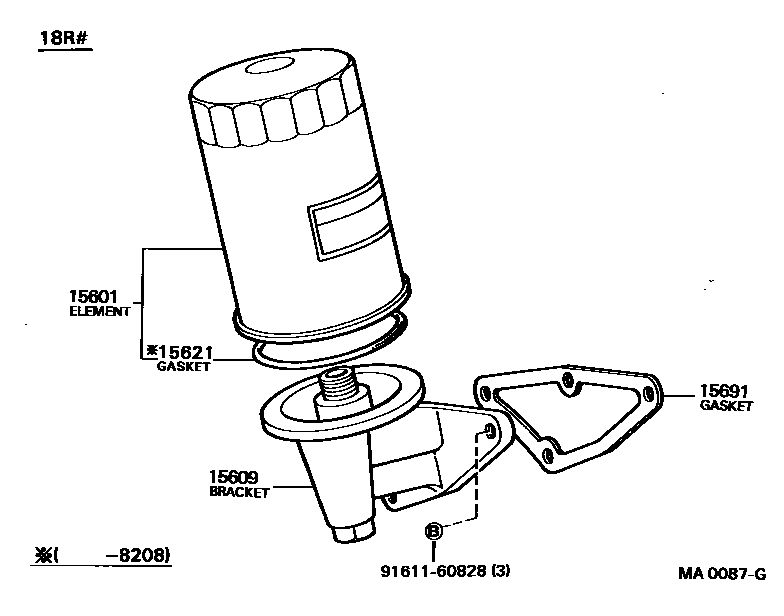

Toyota HILUX Oil Filter EPC diagram — MA0087G
Oil Filter — MA0087G (197808 – 999999)
Toyota HILUX Oil Filter EPC diagram — MA3357B
Oil Filter — MA3357B (197808 – 999999)

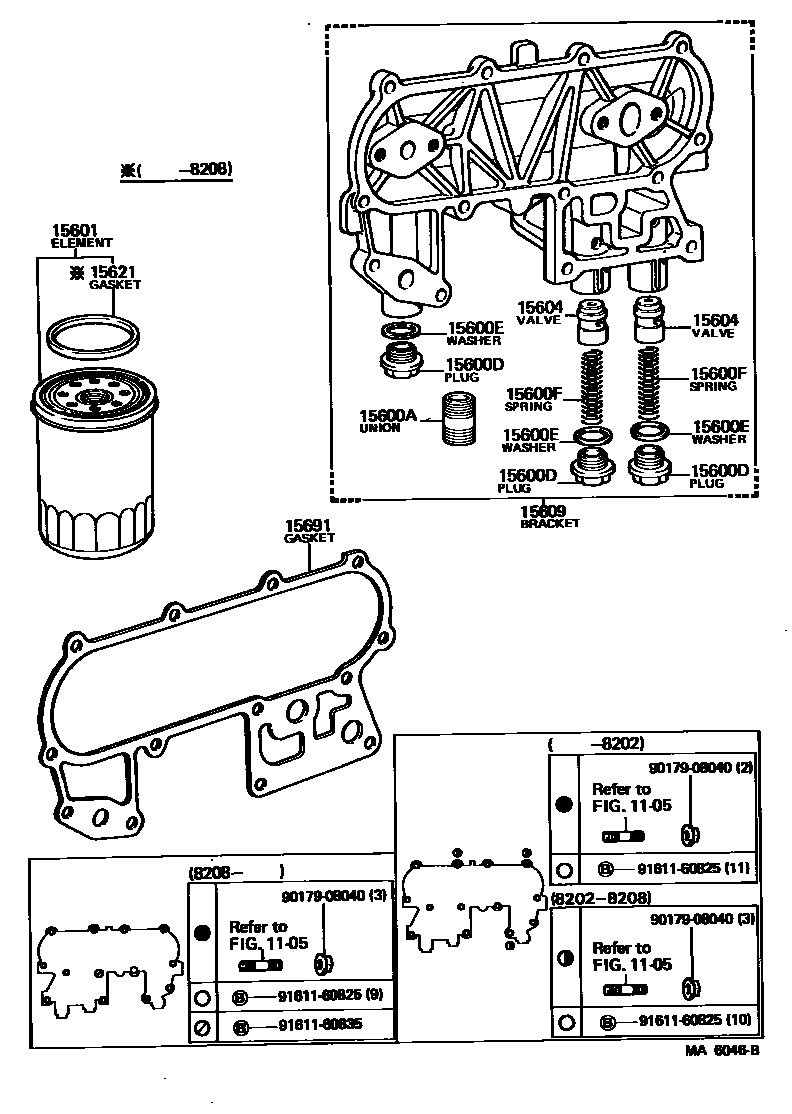

Toyota HILUX Oil Filter EPC diagram — MA6046B
Oil Filter — MA6046B (197909 – 999999)

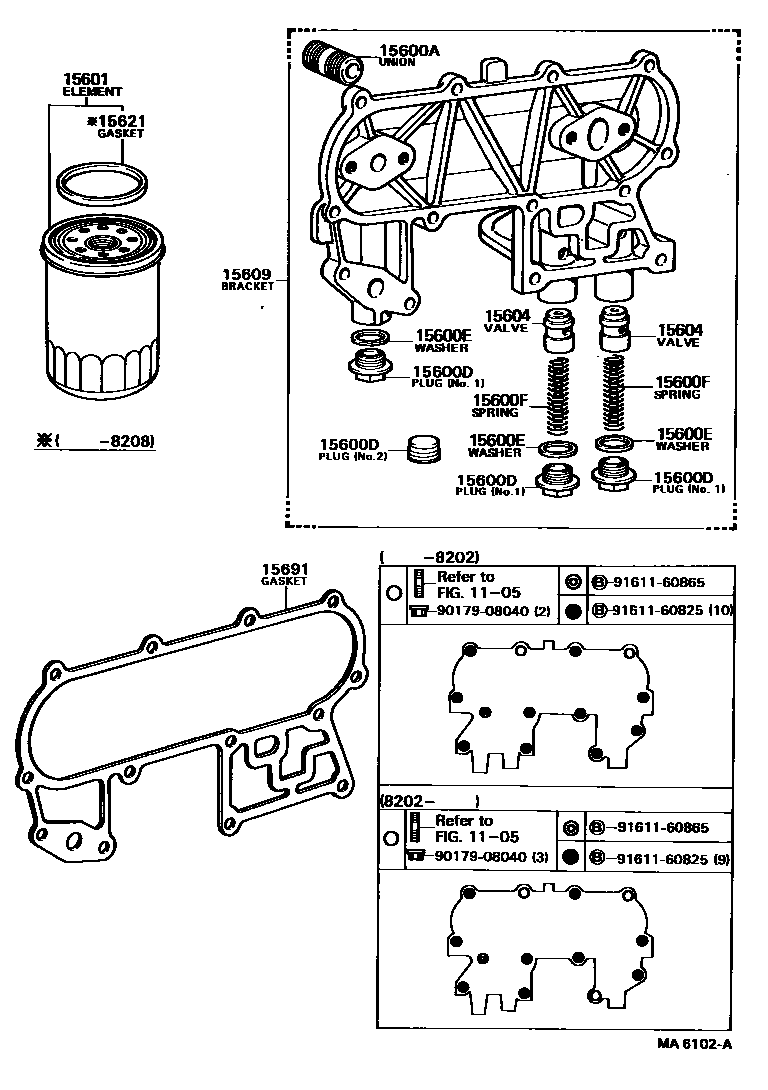

Toyota HILUX Oil Filter EPC diagram — MA6102A
Oil Filter — MA6102A (198102 – 198307)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)15116-54010
15600DScrew plug (for oil filter)90341-18001 · 90341-18015 · 90344-54003
15600EGasket (for oil filter)90430-18001
15600FCompression spring (for oil filter)90501-16026
15601Oil filter sub-assembly15600-41010 · 15601-33010 · 15601-33020 · 15601-33021
15604Oil safety valve sub-assembly15131-54010
15609Oil filter bracket sub-assembly15609-31030 · 15609-33011 · 15609-54010 · 15609-54011 · 15609-54020
15621Oil filter body gasket15621-22010 · 15621-41010
15691oil filter gasket15691-31010 · 15691-33010 · 15691-54010 · 15691-54011 · 15691-54012
