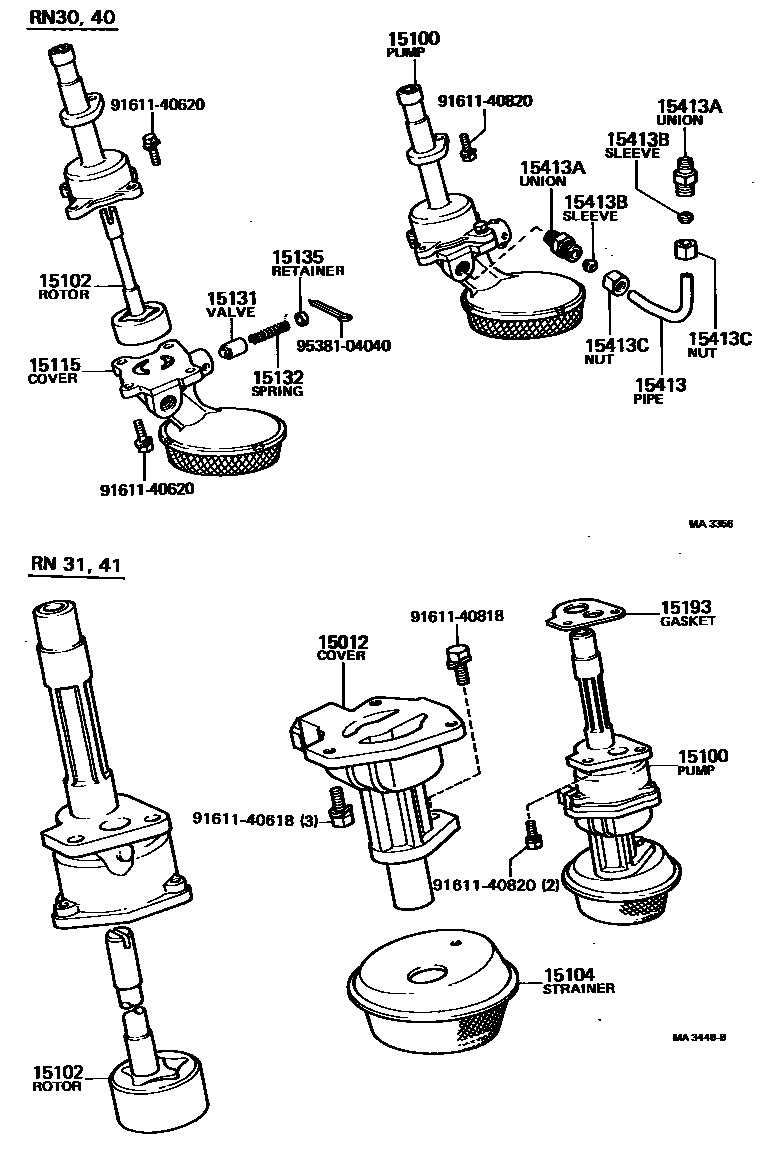

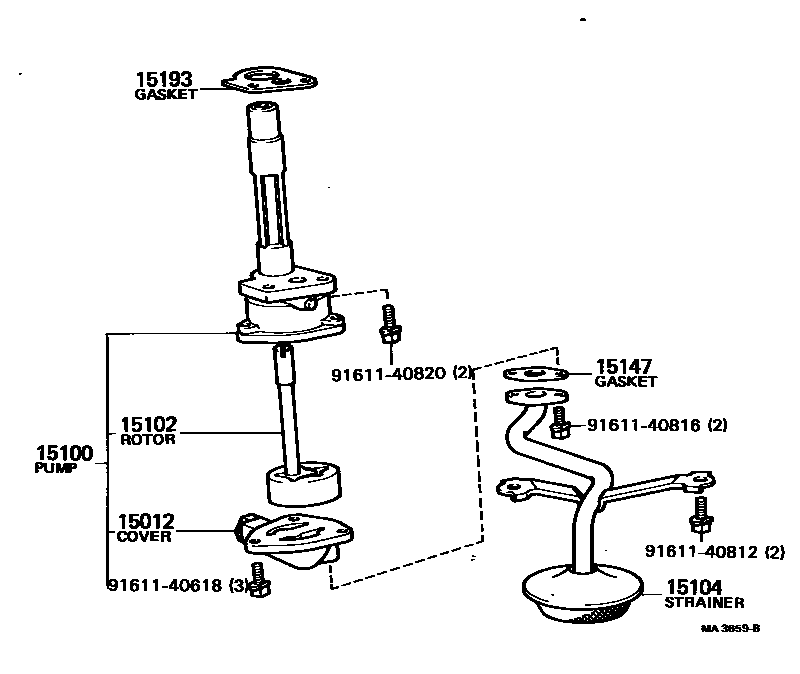

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-33011 · 15012-34020 |
| 15100 | Oil pump assembly | 15100-31040 · 15100-33011 · 15100-33012 · 15100-34020 · 15100-34021 |
| 15102 | Oil pump rotor assembly | 15101-31010 · 15102-36010 · 15102-36011 |
| 15104 | Oil filter sub-assembly | 15104-33011 · 15104-34010 · 15104-54040 · 15104-54041 · 15104-54042 · 15104-54043 · 15104-54050 · 15104-54051 |
| 15104C | Gasket (for oil filter) | 15149-54010 · 15149-54011 |
| 15104E | Stud bolts (for oil filter) | 92122-40816 |
| 15115 | oil pump cover | 15012-31040 · 15115-54010 · 15115-54011 |
| 15121 | Oil pump driving gear | 15121-38020 · 15121-54010 |
| 15122 | Oil pump driven gear | 15122-38020 · 15122-54010 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-40010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-13010 |
| 15147 | Oil filter gasket | 15147-38020 |
| 15193 | oil pump gasket | 15193-33011 |
| 15413 | Oil pump outlet pipe | 15413-31010 |
| 15413A | Connector (for oil pump outlet pipe) | 90404-16008 |
| 15413B | Ball sleeve (for oil pump outlet pipe) | 90410-11005 |
| 15413C | Connector nut (for oil pump outlet pipe) | 90402-16042 |
