Toyota HILUX Camshaft & Valve — Figure 1302

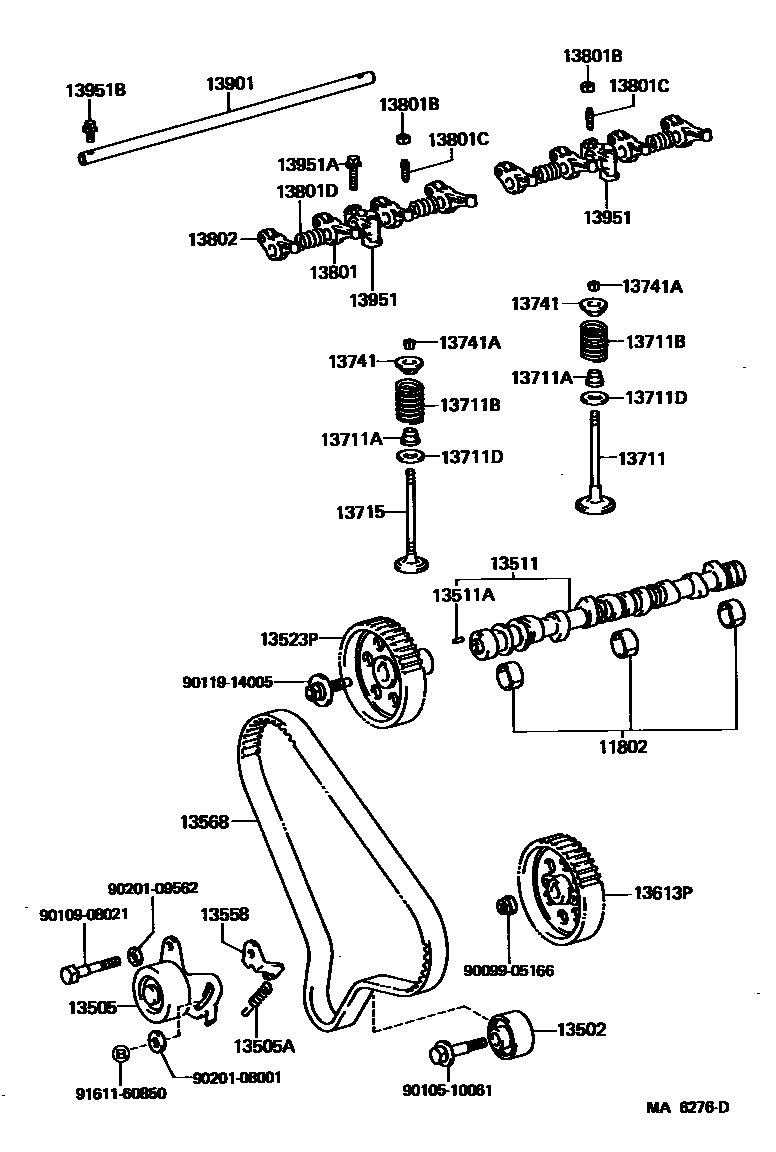

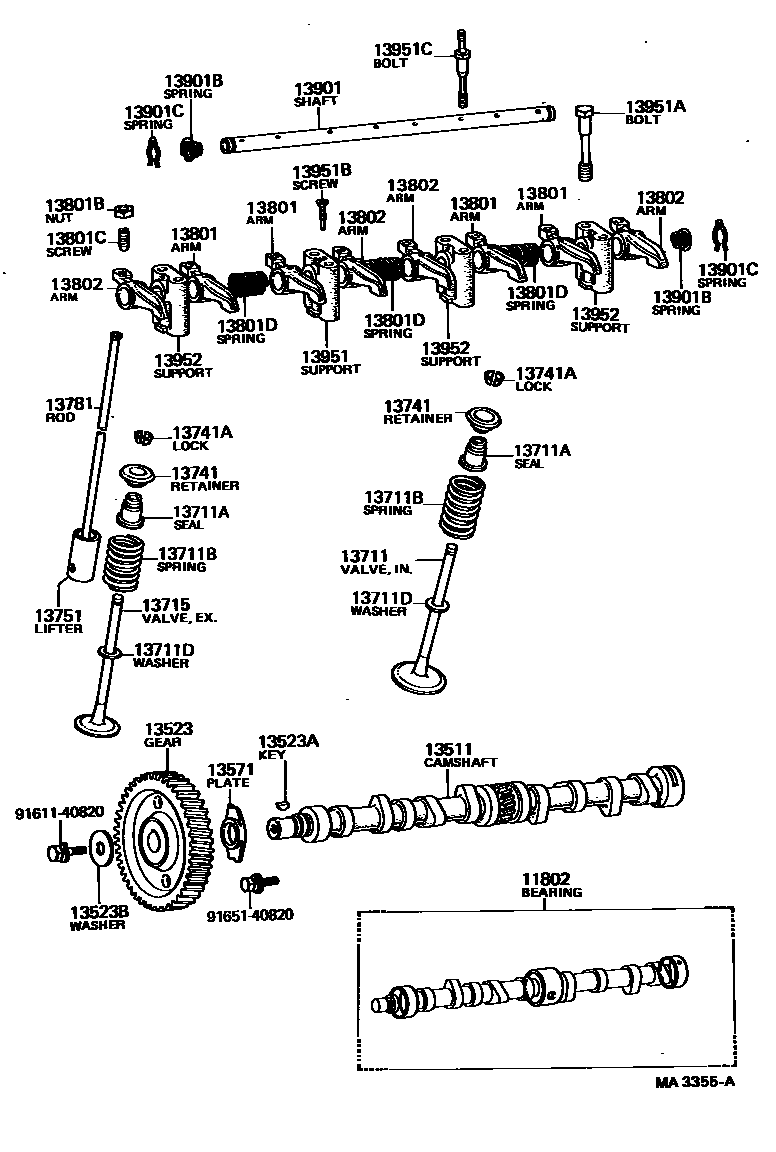

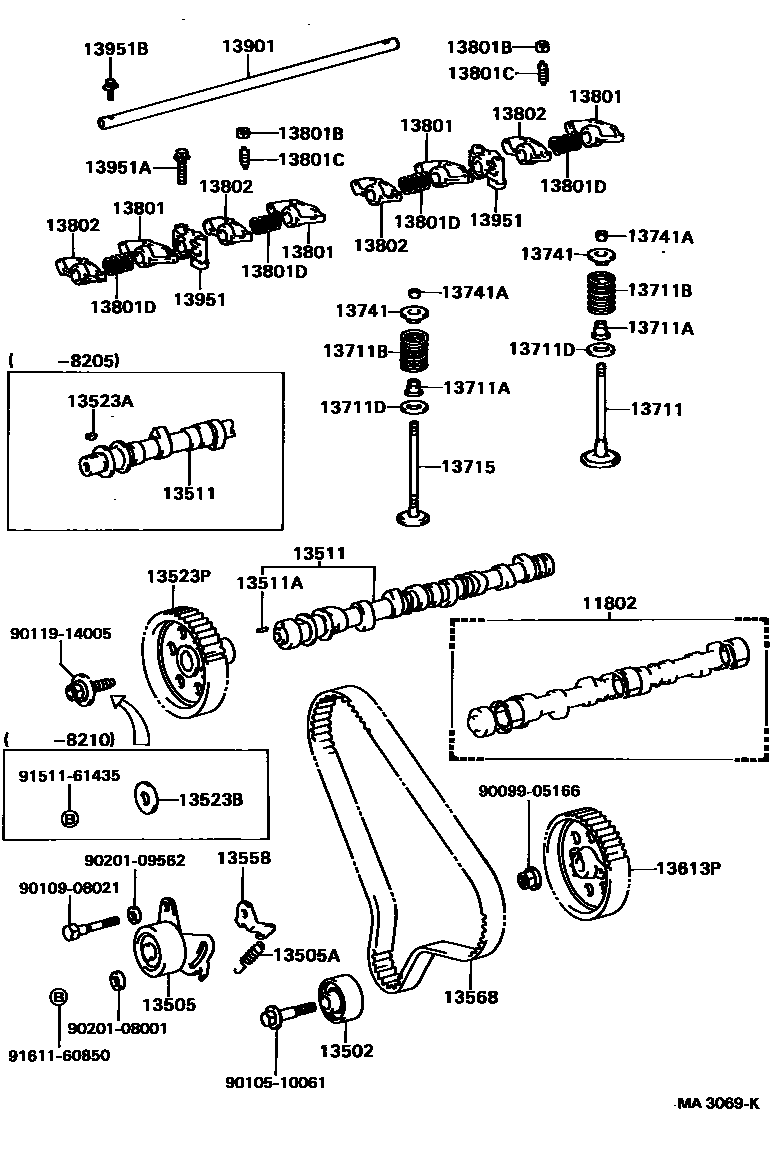

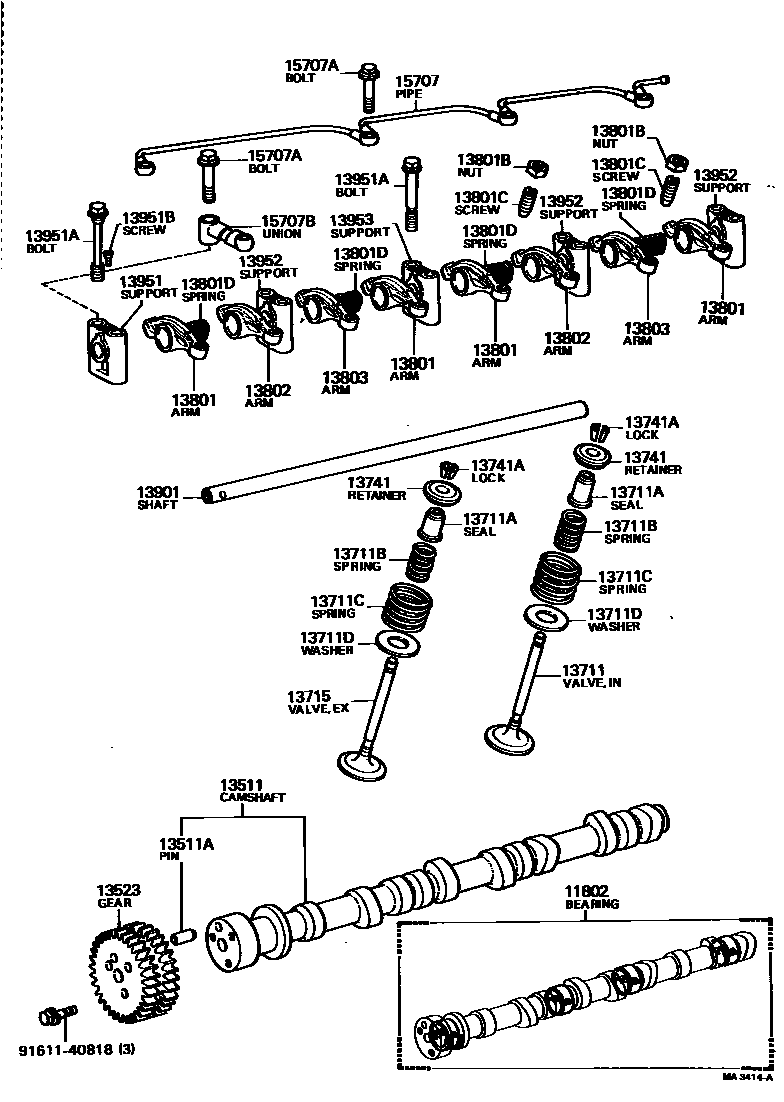

Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-31010 · 11802-33010 · 11802-54010 · 11803-54010 · 11804-31010 · 11804-33010 · 11804-54010 · 11805-31010 · 11805-33010 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-54010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-54010 |
| 13505A | Tension spring (for idler pulley) | 90506-12001 · 90506-14038 |
| 13511 | camshaft | 13501-54020 · 13501-54030 · 13511-31020 · 13511-33905 · 13511-33906 · 13511-54010 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 · 90250-08074 |
| 13523 | Camshaft timing gear or sprocket | 13523-31011 · 13523-33010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05008 · 95161-10519 |
| 13523B | Flat washer (for timing gear) | 90201-08120 · 90201-14007 |
| 13523P | Camshaft timing pulley | 13523-54010 · 13523-54020 |
| 13558 | Spring bracket (for idler pulley) | 13558-54010 |
| 13568 | timing belt | 13568-59015 · 13568-59025 |
| 13571 | Camshaft thrust plate | 13571-31010 |
| 13613P | Fuel injection pump drive pulley | 13613-54010 · 13613-54020 |
| 13711 | intake valve | 13711-31050 · 13711-36021 · 13711-54010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02016 · 90913-02033 · 90913-02036 · 90913-02054 · 90913-02060 |
| 13711B | Compression spring (for inner side) | 90501-26398 · 90501-44002 · 90501-45005 |
| 13711C | Compression spring (for outside) | 90501-45012 · 90501-45459 |
| 13711D | Flat washer (for valve spring seat) | 90201-13308 · 90201-15387 · 90201-20579 |
| 13715 | exhaust valve | 13715-31070 · 13715-34013 · 13715-34022 · 13715-54010 |
| 13741 | Valve spring seat ring | 13741-25012 · 13741-33010 · 13741-54010 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03014 · 90913-03016 |
| 13751 | valve lifter | 13751-31020 · 13755-31020 |
| 13781 | valve pushrod | 13781-31022 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-54010 · 13801-54011 · 13801-54012 · 13801-54020 · 13811-31022 · 13811-33014 · 13811-33020 |
| 13801B | Hex nut (for valve adjustment) | 90170-08094 · 90170-08210 · 90170-10116 |
| 13801C | valve adjustment screw | 90913-05011 · 90913-05013 · 90913-05016 · 90913-05019 · 90913-05020 |
| 13801D | Compression spring (for rocker arm) | 90501-16098 · 90501-16163 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13802-54010 · 13802-54011 · 13802-54020 · 13812-31022 · 13812-33014 · 13812-33020 |
| 13803 | No. 3 valve rocker arm sub-assembly | 13813-33014 · 13813-33020 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-31020 · 13901-33011 · 13901-54010 |
| 13901B | Conical spring (for valve rocker arm shaft) | 90502-16004 |
| 13901C | Stop spring (for valve rocker arm shaft) | 90524-15008 |
| 13951 | No. 1 valve rocker arm bracket | 13951-31020 · 13951-36010 · 13951-54010 · 13951-54020 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90105-08016 · 90119-08191 · 90910-01007 · 90910-01010 |
| 13951B | Locking screw or locking bolt (for valve rocker arm shaft) | 90151-40010 · 91611-60614 · 91611-60620 |
| 13951C | Stud bolts (for rocker arm bracket) | 13959-31010 |
| 13952 | No. 2 valve rocker arm bracket | 13952-31010 · 13952-36010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-36010 |
| 15707 | Oil pipe sub-assembly | 15707-33010 |
| 15707A | Joint bolt (for oil pipe) | 90401-10050 · 90401-10051 |
| 15707B | Connector (for oil pipe) | 90406-08008 |
