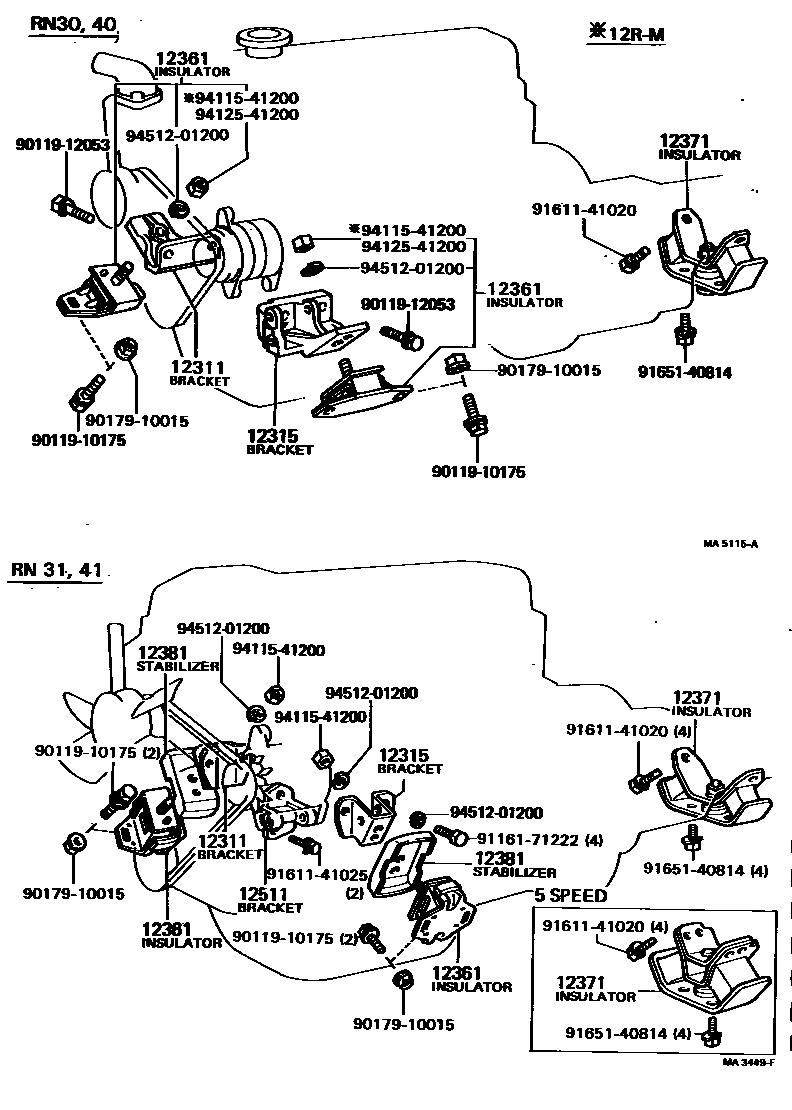

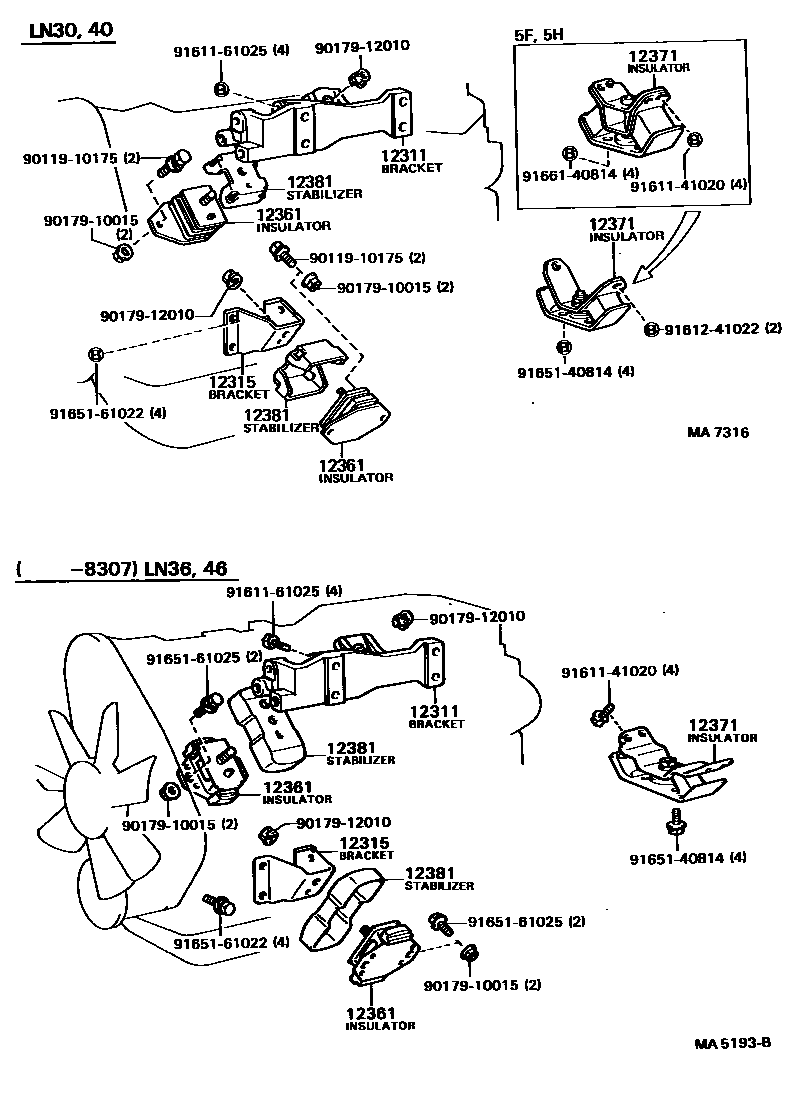

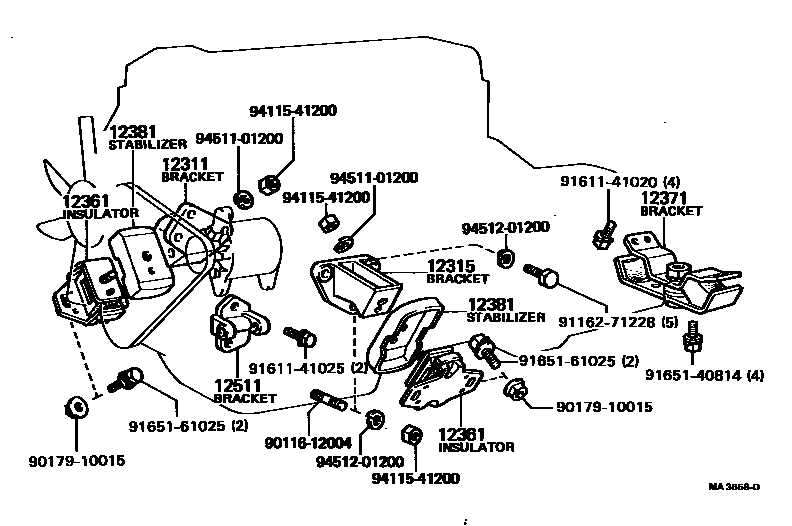

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-30010 · 12311-33011 · 12311-34010 · 12311-54020 · 12311-54051 · 12311-54090 |
| 12315 | Engine No. 1 left front suspension bracket | 12312-54020 · 12315-31011 · 12315-33011 · 12315-34010 |
| 12361 | Engine front mounting vibration isolation pad | 12361-38060 · 12361-38100 · 12361-38140 · 12361-39018 · 12361-54020 · 12361-54070 · 12361-54071 · 12361-54080 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-31040 · 12371-34030 · 12371-38020 · 12371-54050 |
| 12381 | engine mount stabilizer bar | 12381-34020 · 12381-34021 · 12381-38011 · 12381-54010 · 12381-54020 |
| 12511 | No. 1 generator bracket | 12511-33011 |
