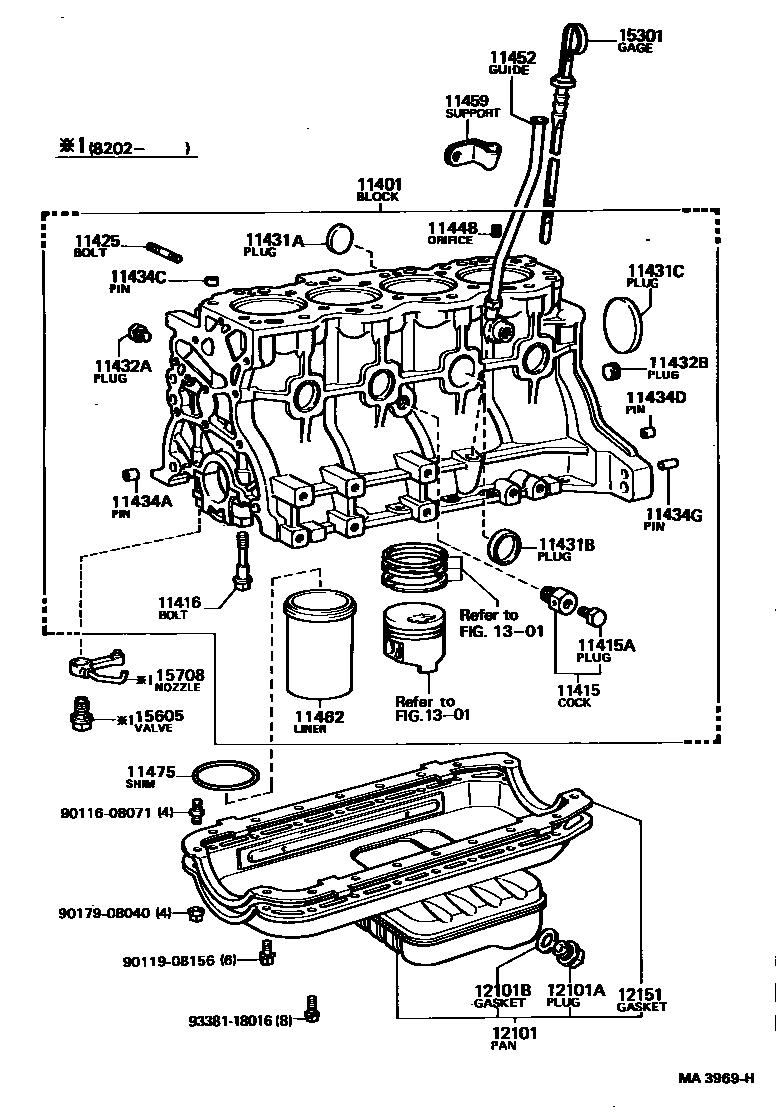

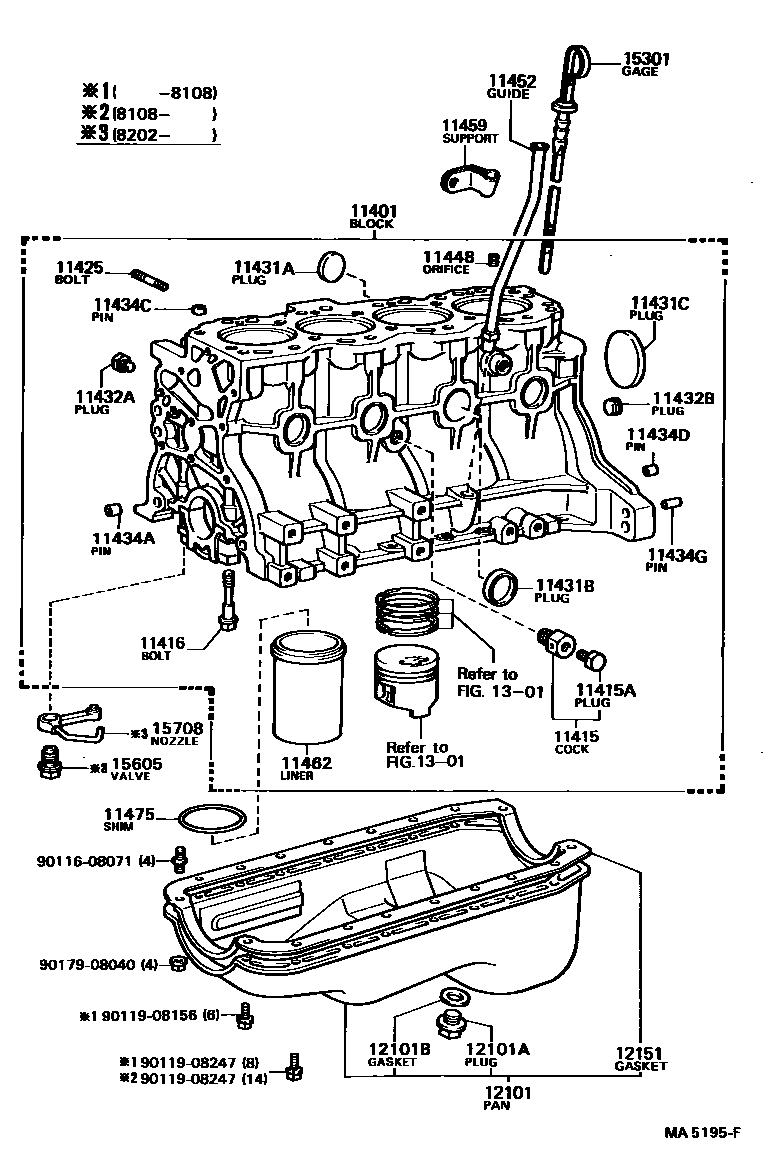

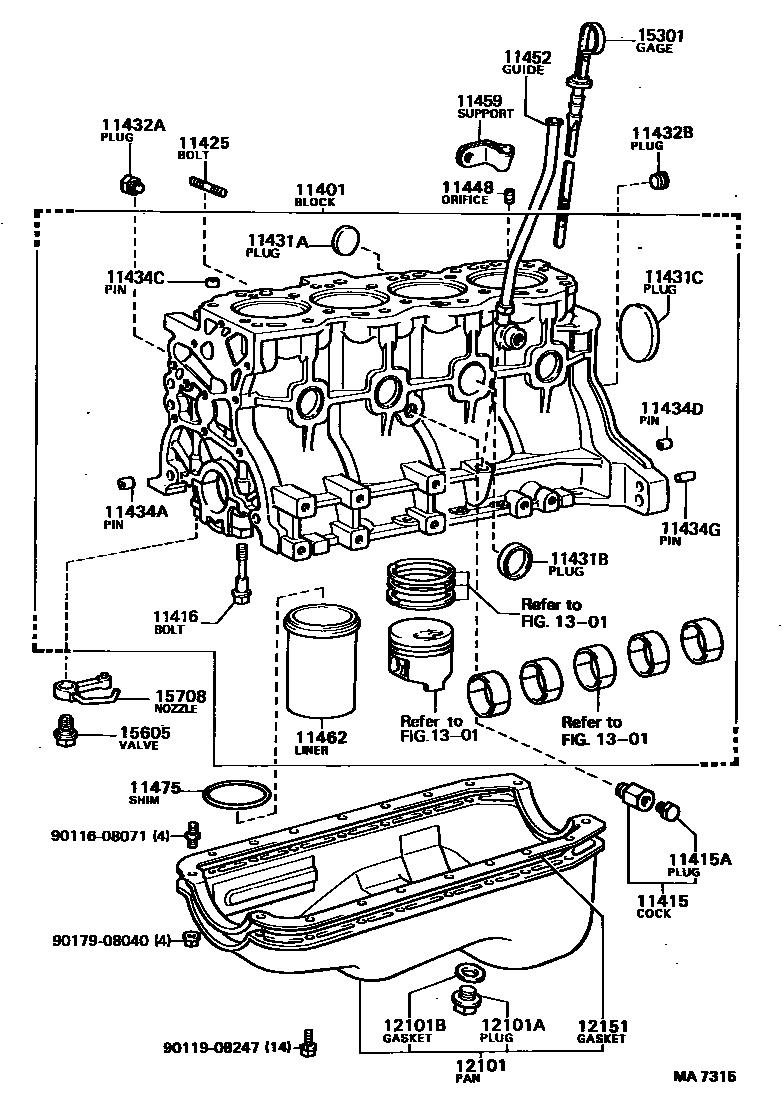

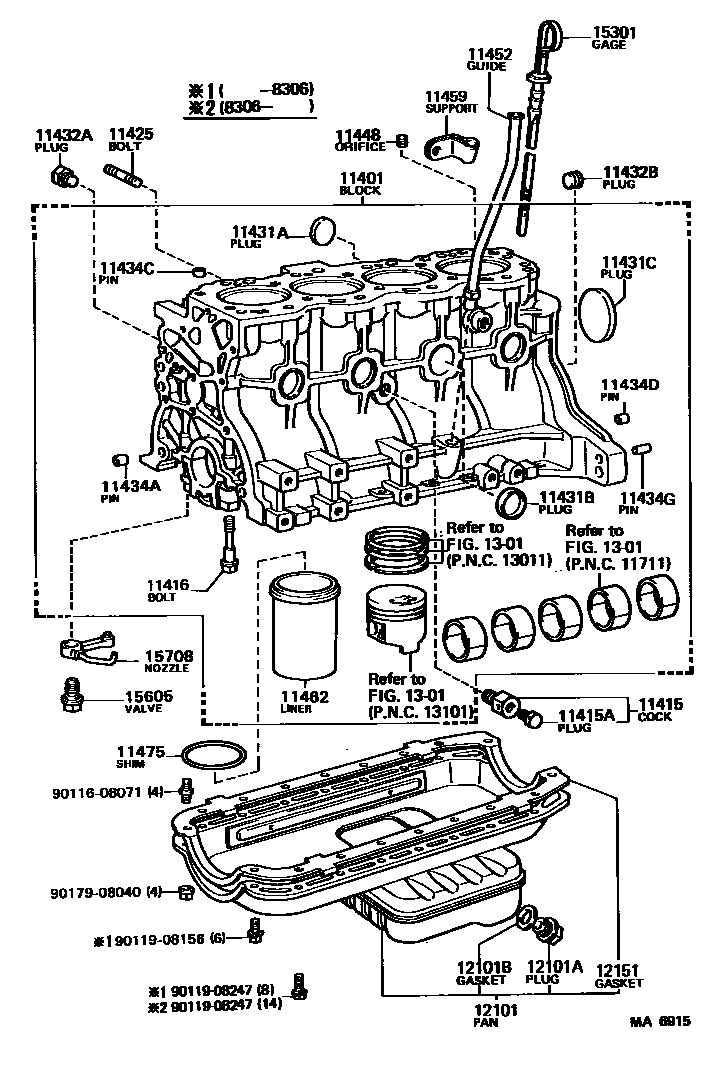

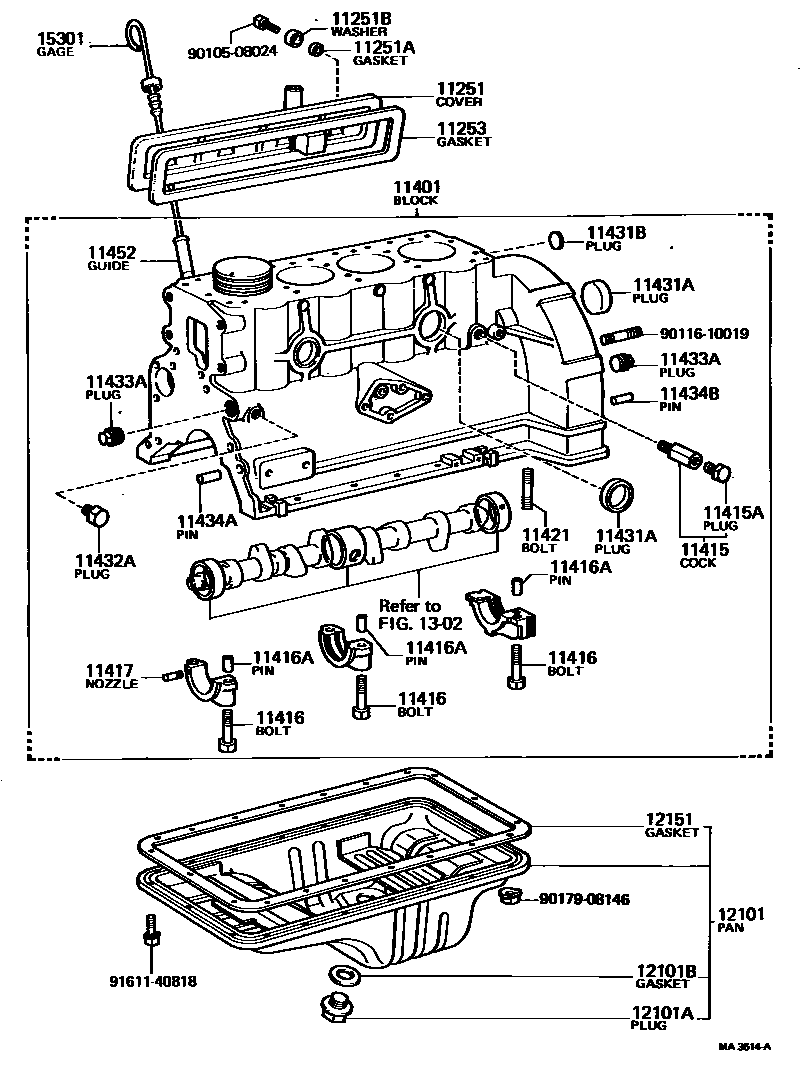

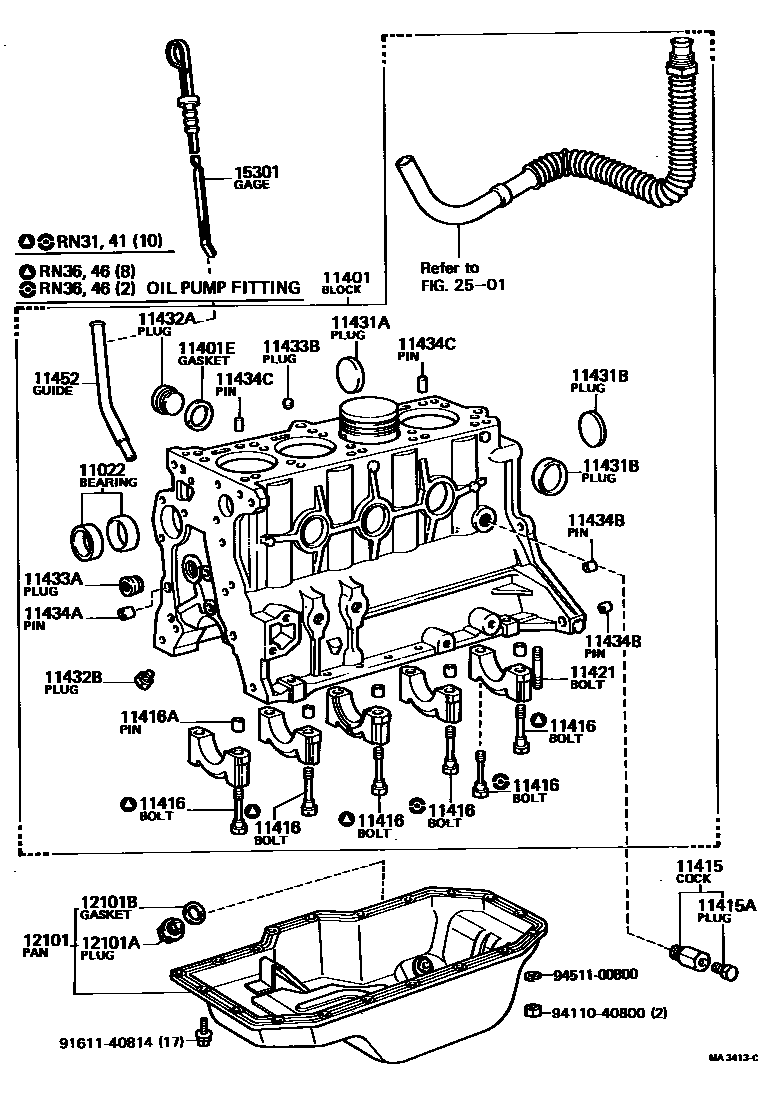

Toyota HILUX Cylinder Block — Figure 1105
Toyota HILUX EPC diagram 1105, Cylinder Block, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11022 | Pump drive shaft bearing assembly | 11022-33010 |
| 11251 | Valve push rod cover | 11203-31011 |
| 11251A | Gasket (for valve pushrod cover bolt) | 90430-07002 |
| 11251B | Gasket (for valve pushrod cover bolt) | 90210-08006 |
| 11253 | Valve pushrod cover gasket | 11253-31011 |
| 11401 | Cylinder block sub-assembly | 11401-39127 · 11401-39285 · 11401-39286 · 11401-39287 · 11401-39288 · 11401-39305 · 11401-39306 · 11401-39307 · 11401-59066 · 11401-59067 · 11401-59106 · 11401-59107 · 11401-59185 · 11401-59235 |
| 11401E | Gasket (for cylinder block plug) | 90430-32003 · 90430-32052 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09074 · 96431-03833 |
| 11415A | Water drain switch screw plug (for cylinder block) | 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90109-12012 · 90910-02042 · 90910-02061 · 90910-02064 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-15005 · 90253-16014 |
| 11417 | oil nozzle | 90915-01002 |
| 11421 | Stud bolts (for oil pan) | 90116-08229 · 92122-40814 |
| 11425 | Studs (for oil filter) | 90116-08053 · 90116-08157 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-44500 · 96411-45000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-43500 · 96411-44000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-45000 |
| 11432A | No. 1 headed tapered thread plug | 90341-32038 · 90345-51006 · 90345-51025 |
| 11432B | No. 2 headed tapered thread plug | 90072-34107 · 90344-53002 · 90344-53011 |
| 11433A | No. 1 straight screw plug | 90344-53002 · 90344-53008 · 90344-53011 |
| 11433B | No. 2 straight screw plug | 90334-09015 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-10192 · 90253-11001 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10192 · 90253-17012 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-15005 |
| 11434D | Direct sales (for engine rear oil seal) | 90253-11001 |
| 11434G | Direct sales (for end plates) | 90250-10192 |
| 11448 | Cylinder block oil orifice | 11448-54010 · 11448-54020 |
| 11452 | Engine oil level gauge guide | 11452-31020 · 11452-34010 · 11452-40010 · 11452-54010 |
| 11459 | Oil level gauge guide bracket | 90461-10271 |
| 11462 | cylinder liner | 11461-54010 |
| 11475 | Cylinder liner gasket | 11475-54010 · 11476-54010 |
| 12101 | Oil pan sub-assembly | 12101-39225 · 12101-39245 · 12101-39275 · 12101-59105 · 12101-59165 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-18244 |
| 12151 | oil pan gasket | 12151-30010 · 12151-54020 |
| 15301 | Engine oil level scoring assembly | 15301-31050 · 15301-33013 · 15301-34021 · 15301-54030 |
| 15605 | Oil check valve sub-assembly | 15605-54010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-54010 |
