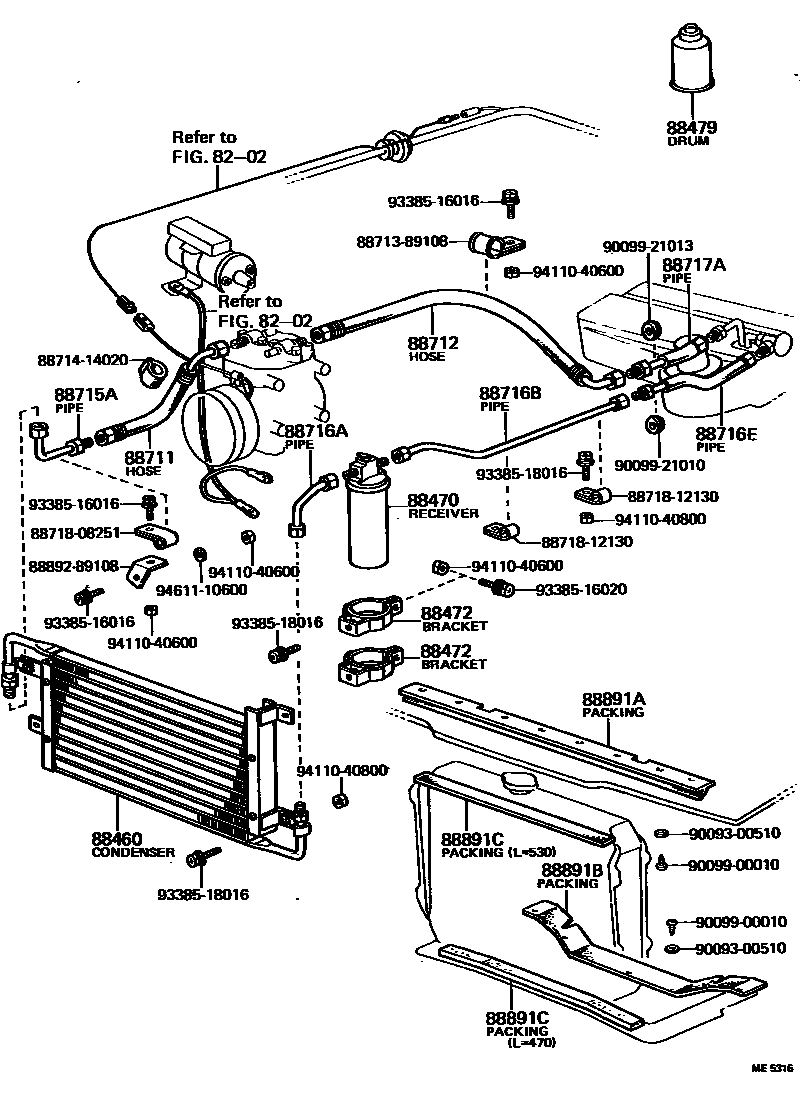

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-89106 |
| 88470 | Cooler reservoir and dryer assembly | 88470-10010 · 88470-12021 |
| 88472 | No. 1 liquid storage tank bracket | 88472-89103 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 88434-30010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-89108 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-20080 · 88712-20200 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-89102 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-89116 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-89117 · 88716-89118 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-89113 · 88716-89114 |
| 88717A | Cooler refrigerant suction pipe A | 88717-89106 · 88717-89107 |
| 88891A | Seal A (for cooler) | 88893-89110 |
| 88891B | Seal B (for cooler) | 88893-89107 |
| 88891C | Seal C (for cooler) | 88893-89111 · 88893-89112 |
