Toyota HILUX 后视镜 — Figure 8701

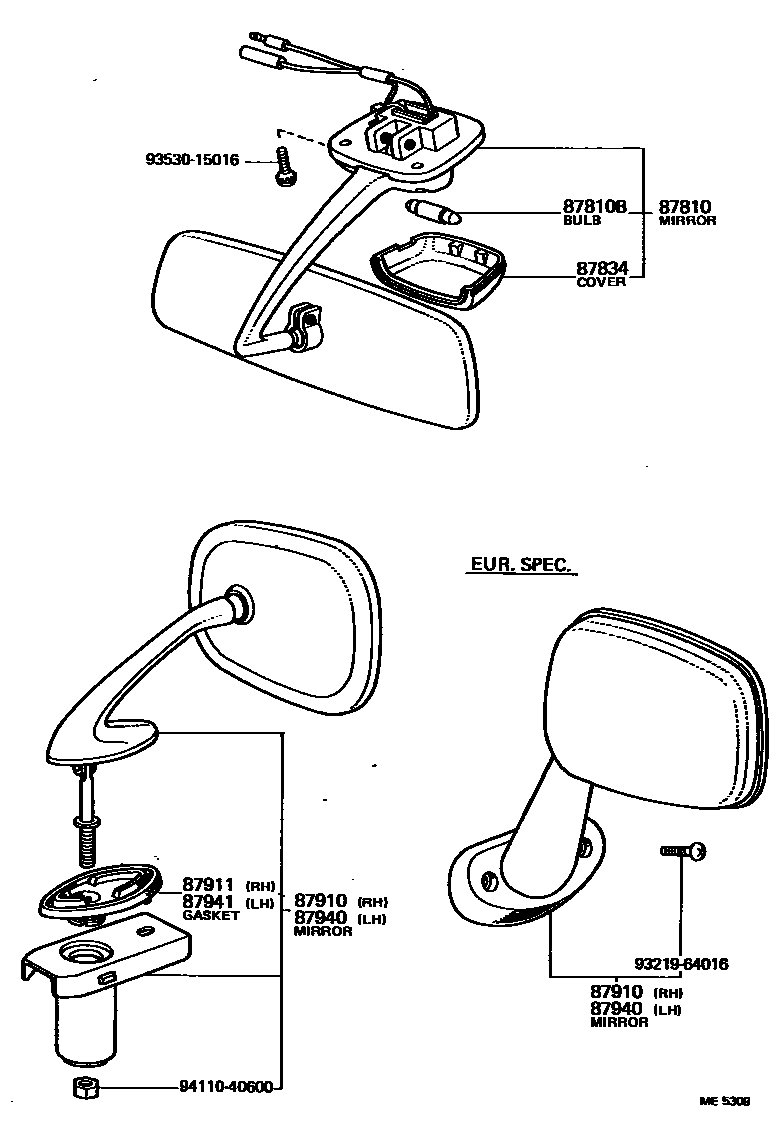

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-89104 · 87810-89105 · 87810-89106 |
| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87834 | Interior rearview mirror stay fixing cover | 87814-12020 |
| 87910 | Right exterior rearview mirror assembly | 87910-89103 · 87910-89104 · 87910-89105 · 87910-89106 · 87910-89107 |
| 87911 | Right exterior mirror pad | 87911-89101 · 87911-89102 |
| 87940 | Left exterior rearview mirror assembly | 87940-89102 · 87940-89104 · 87940-89105 · 87940-89106 · 87940-89107 |
| 87941 | Left exterior mirror pad | 87911-89101 · 87911-89102 |
