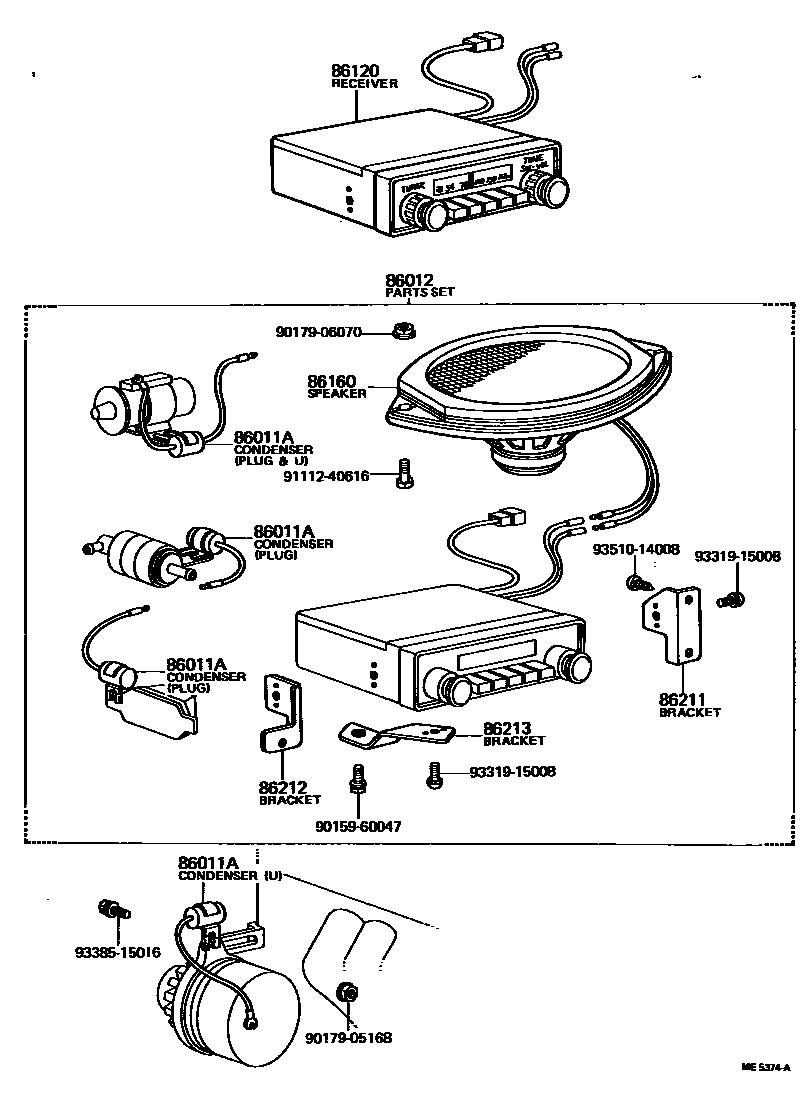

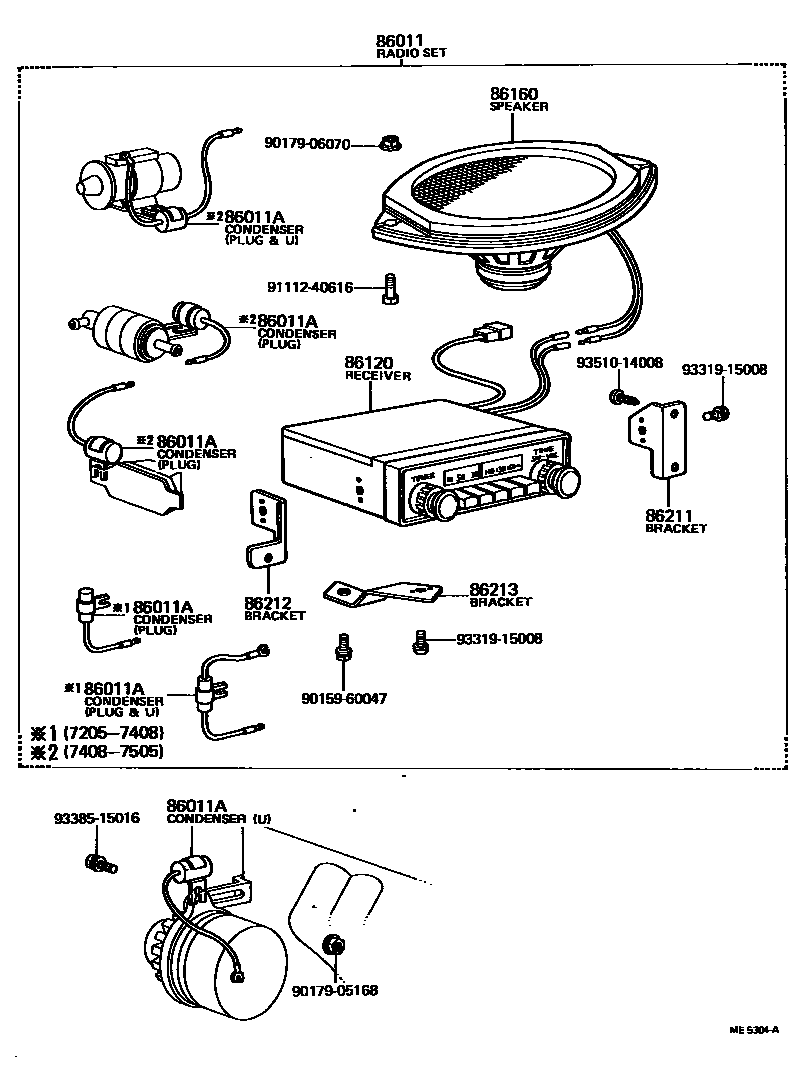

Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601
Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011 | Radio and set parts assemblies | 86011-89104 · 86011-89106 · 86011-89108 · 86011-89111 |
| 86011A | radio settings phase modulator | 90980-04011 · 90980-04017 · 90980-04018 · 90980-04022 |
| 86012 | radio set parts assemblies | 86012-39025 |
| 86120 | Radio assembly | 86120-35024 · 86120-35025 · 86120-89103 |
| 86160 | No. 1 front speaker assembly | 86160-35010 · 86160-35011 · 86160-95402 |
| 86211 | No. 1 radio bracket | 86211-89101 · 86211-89102 |
| 86212 | No. 2 radio bracket | 86212-89101 · 86212-89102 |
| 86213 | No. 3 radio bracket | 86215-89103 · 86215-89106 · 86215-89107 |
