Toyota HILUX 挡风玻璃清洗器 — Figure 8503

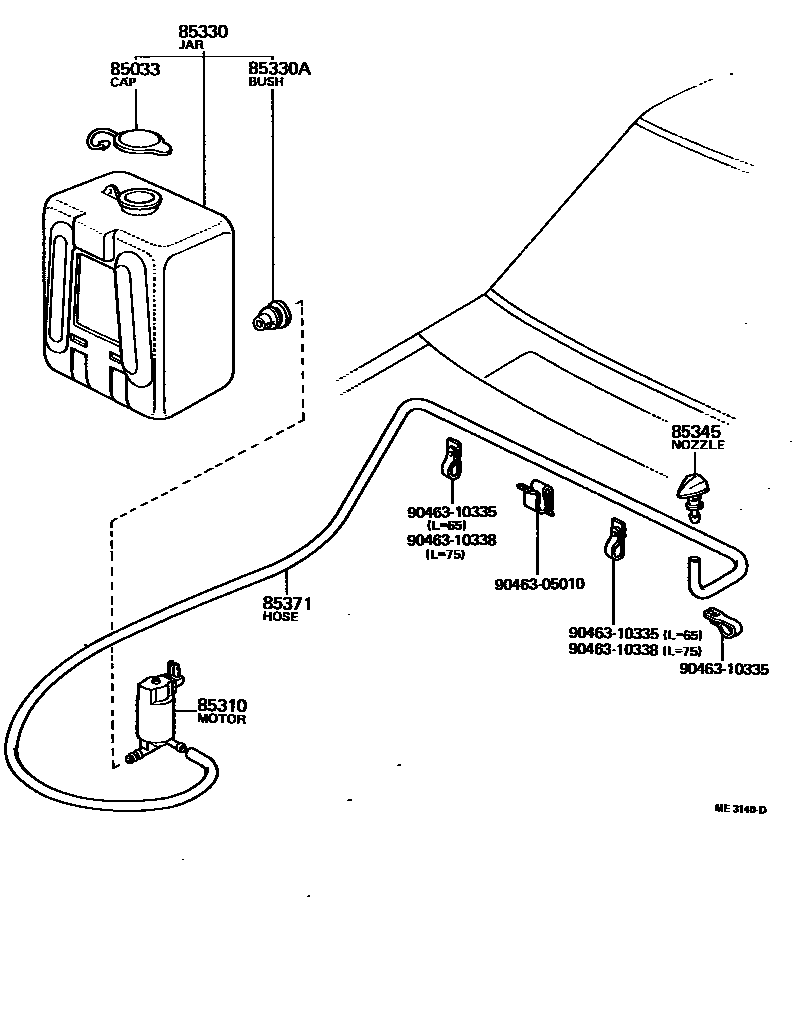

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85033-20070 · 85332-30050 |
| 85310 | Windshield washer motor and pump assembly | 85310-12020 · 85310-20100 |
| 85330 | Windshield washer fluid tank assembly | 85330-89101 · 85330-89104 |
| 85330A | Windshield washer fluid tank bushing | 90099-32057 · 90099-32089 |
| 85345 | windshield washer nozzle | 85035-14010 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33283 |
