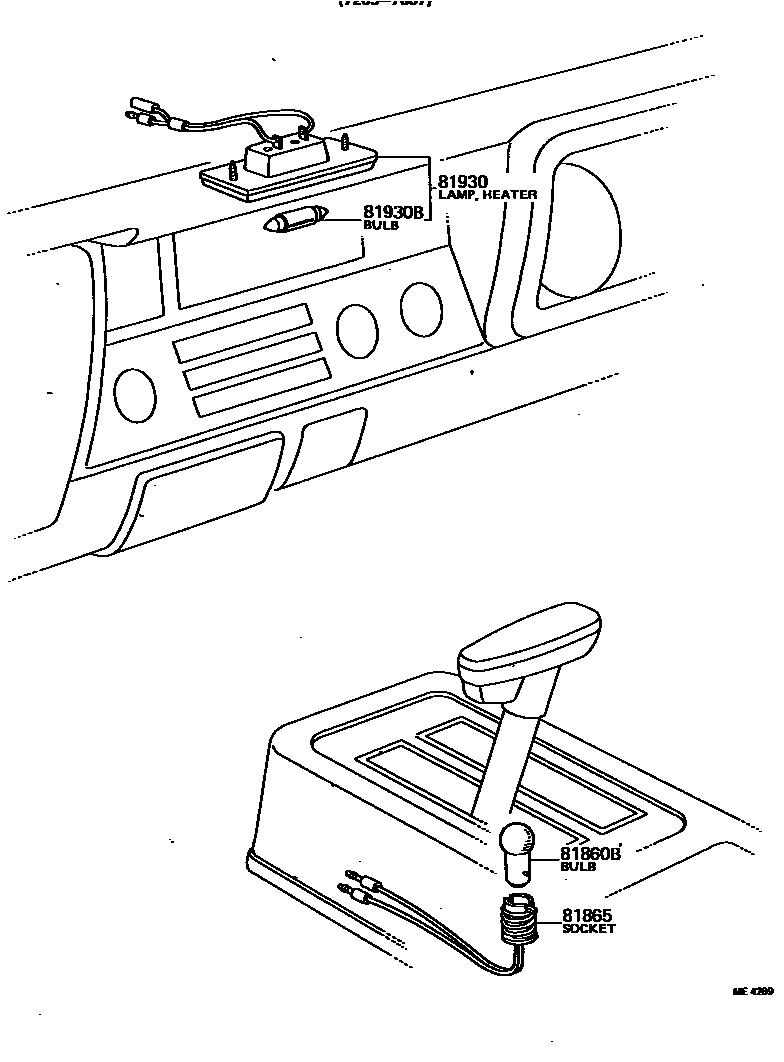

Toyota HILUX indicator light — Figure 8302
Toyota HILUX EPC diagram 8302, indicator light, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81860B | Transmission indicator light bulb | 99132-11034 |
| 81865 | Transmission indicator light holder and wiring harness | 35906-12010 |
| 81930 | No. 1 heater control indicator light assembly | 81930-89102 · 81930-89104 |
| 81930B | Heater control indicator light bulb | 90981-11010 |
