Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

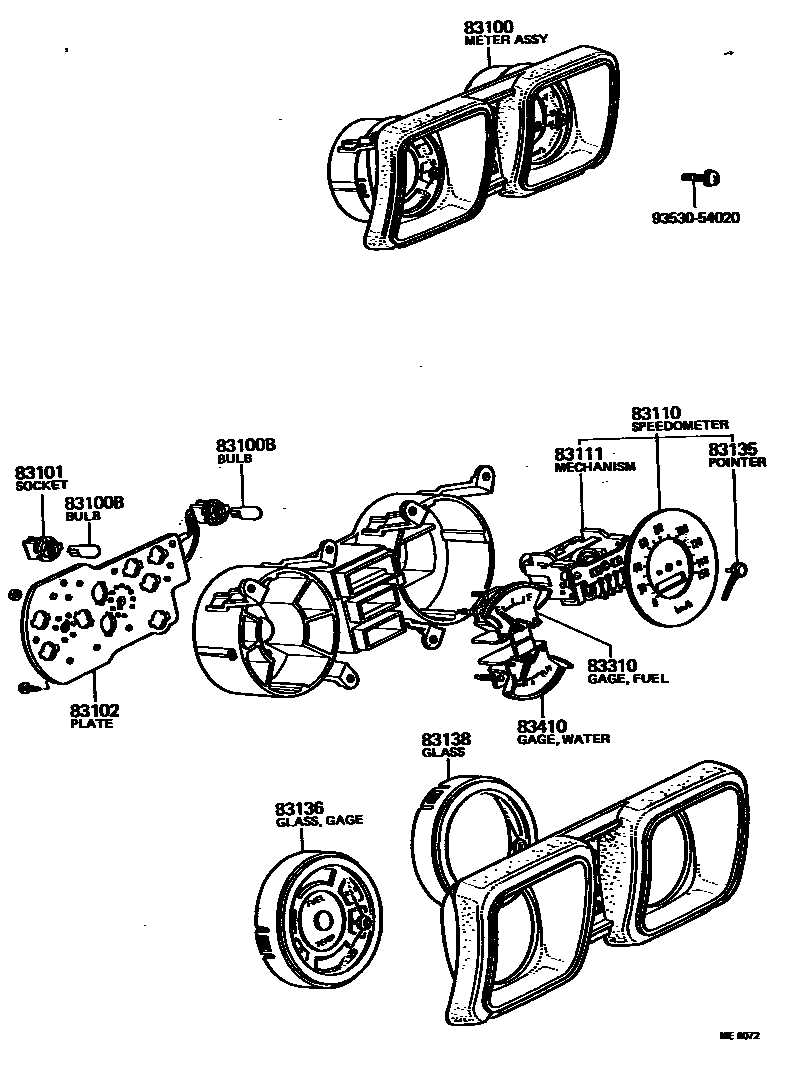

| 83100 | Combined instrument assembly | 83100-89110 · 83100-89111 · 83100-89114 · 83100-89116 · 83100-89122 · 83100-89123 · 83100-89129 |
| 83100B | Combination instrument bulb No. 1 | 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-12010 · 83101-20040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83102-89103 · 83102-89122 |
| 83110 | Speedometer assembly | 83110-89106 · 83110-89108 · 83110-89111 · 83110-89113 · 83110-89122 · 83110-89123 · 83110-89124 |
| 83111 | Speedometer mechanism | 83112-26014 · 83112-89123 · 83114-89111 · 83114-89113 |
| 83135 | Speedometer pointer | 83135-89102 |
| 83136 | Measuring instrument glass | 83141-89101 · 83141-89102 |
| 83138 | speedometer glass | 83138-89102 |
| 83310 | Fuel gauge assembly | 83310-89102 · 83310-89103 |
| 83410 | Water temperature meter assembly | 83410-89102 |

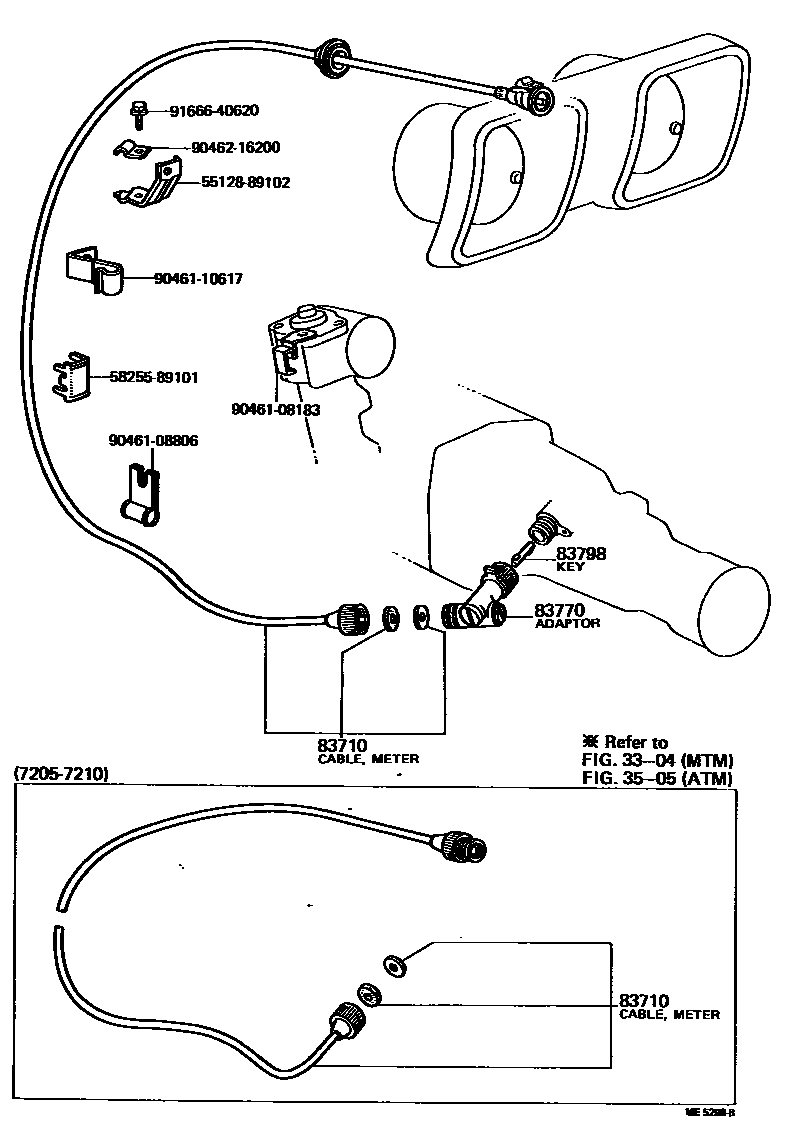

| 83710 | No. 1 speedometer transmission cable assembly | 83710-89803 · 83710-89804 · 83710-89805 · 83710-89806 · 83710-89810 · 83710-89812 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-22030 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-22010 |
