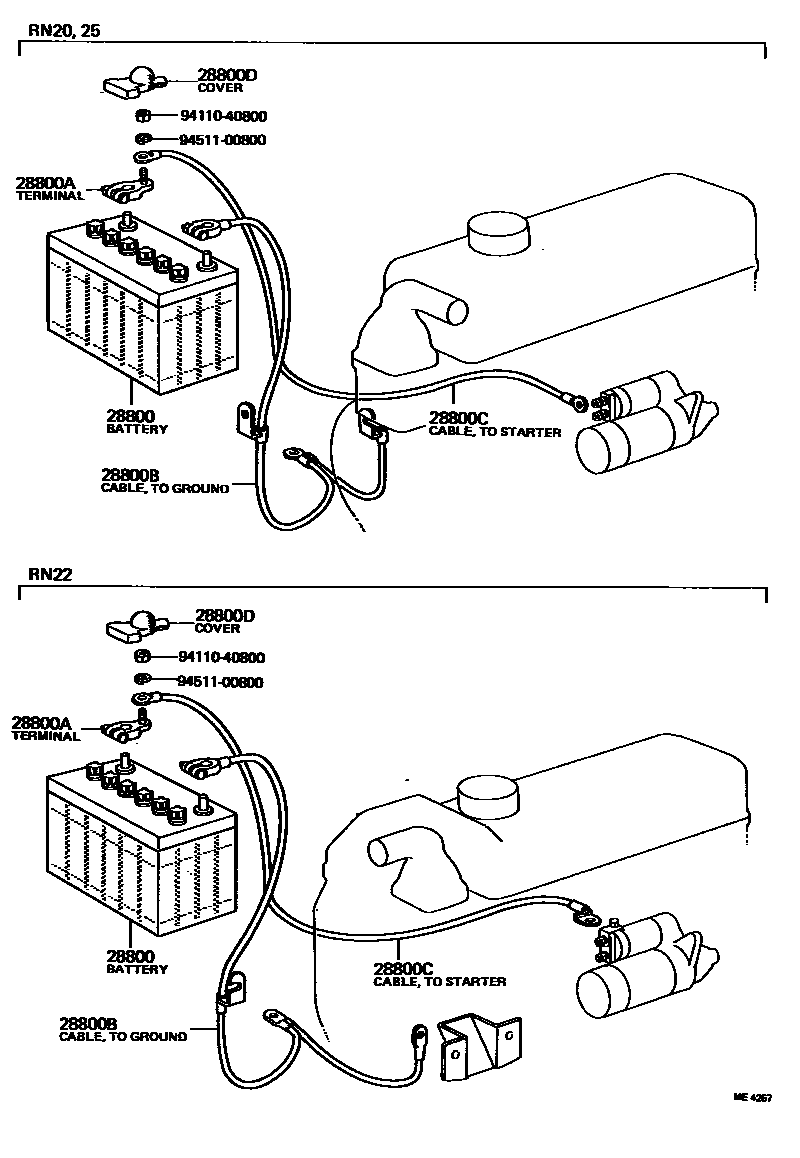

Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201
Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-21021 · 28800-26040 · 28800-30100 · 28800-30131 · 28800-31021 · 28800-31031 · 28800-41010 |
| 28800A | battery positive terminal | 90982-05004 · 90982-05005 · 90982-05006 · 90982-05007 |
| 28800B | Cable between battery and ground | 90982-02059 · 90982-02085 · 90982-02087 · 90982-02090 · 90982-02111 |
| 28800C | Cable between battery and starter (for battery to main switch) | 90982-01149 · 90982-01254 |
| 28800D | Connector cover (for battery terminals) | 82821-12030 |
