Toyota HILUX 后牌照灯 — Figure 8113

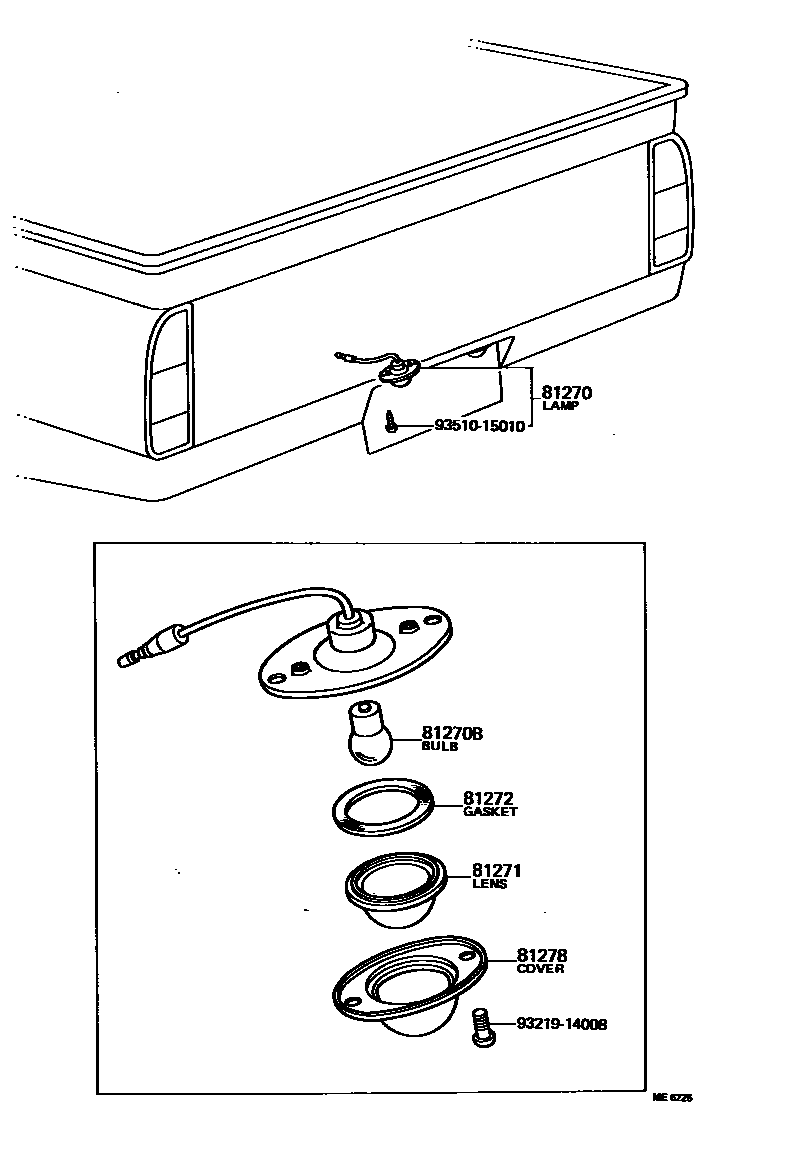

Toyota HILUX EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-89802 · 81270-89804 · 81270-89805 · 81270-89807 · 81270-89808 |
| 81270B | Bulb (for license plate light) | 90981-12005 · 99132-11100 |
| 81271 | license plate lamp shade | 81271-10010 · 81271-89102 |
| 81272 | License plate lamp shade gasket | 81272-10010 |
| 81278 | license plate light cover | 81276-89106 · 81278-30040 |
