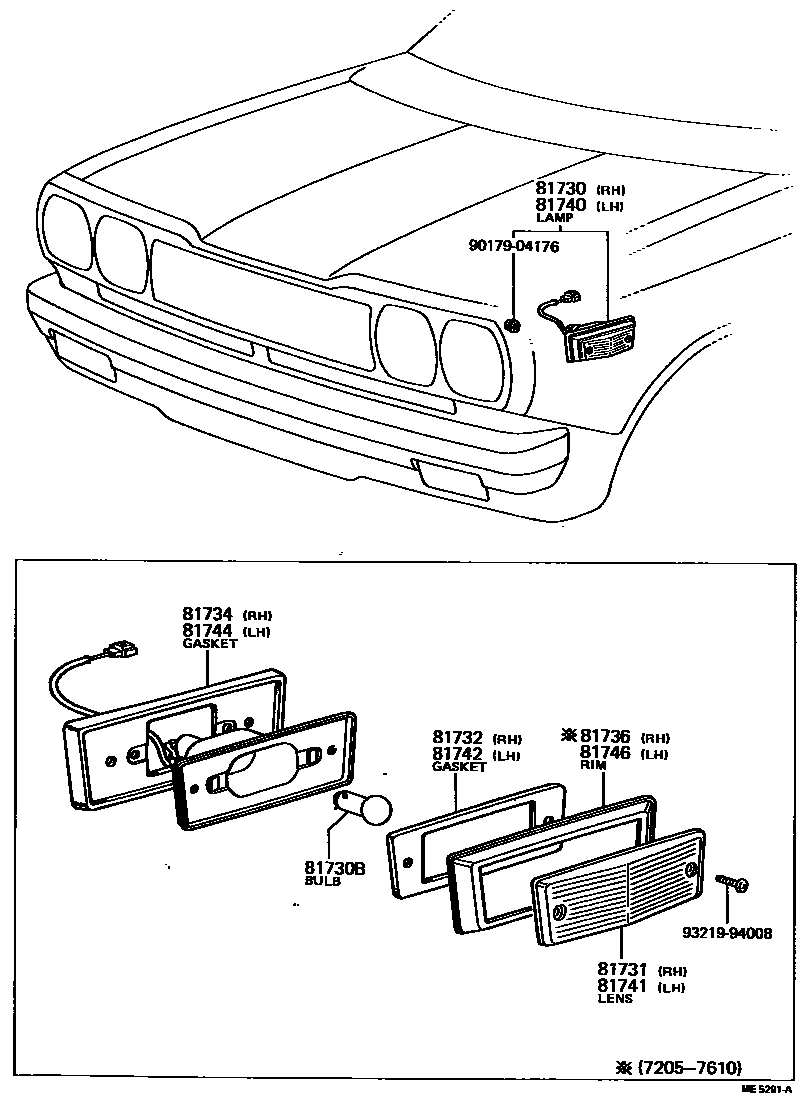

Toyota HILUX Side Turn Signal & Outer Mirror Lamp — Figure 8106
Toyota HILUX EPC diagram 8106, Side Turn Signal & Outer Mirror Lamp, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81730 | Right side turn signal light assembly | 81730-19085 · 81730-89803 · 81730-89804 · 81730-89805 |
| 81730B | Bulb (for side turn signal lights) | 90981-12005 · 99132-13060 |
| 81731 | Right side turn signal lamp cover | 81731-14030 |
| 81732 | Right side turn signal light housing gasket | 81732-14030 |
| 81734 | Right side turn signal light body gasket | 81734-14030 · 81734-89101 |
| 81736 | Right side turn signal light frame | 81736-14030 |
| 81740 | Left side turn signal light assembly | 81740-19065 · 81740-89803 · 81740-89804 · 81740-89805 |
| 81741 | Left side turn signal lamp cover | 81741-14030 |
| 81742 | Left side turn signal light housing gasket | 81732-14030 |
| 81744 | Left side turn signal light body gasket | 81744-14030 · 81744-89101 |
| 81746 | Left side turn signal light frame | 81746-14030 |
