Toyota HILUX 燃油箱和燃油管 — Figure 7751

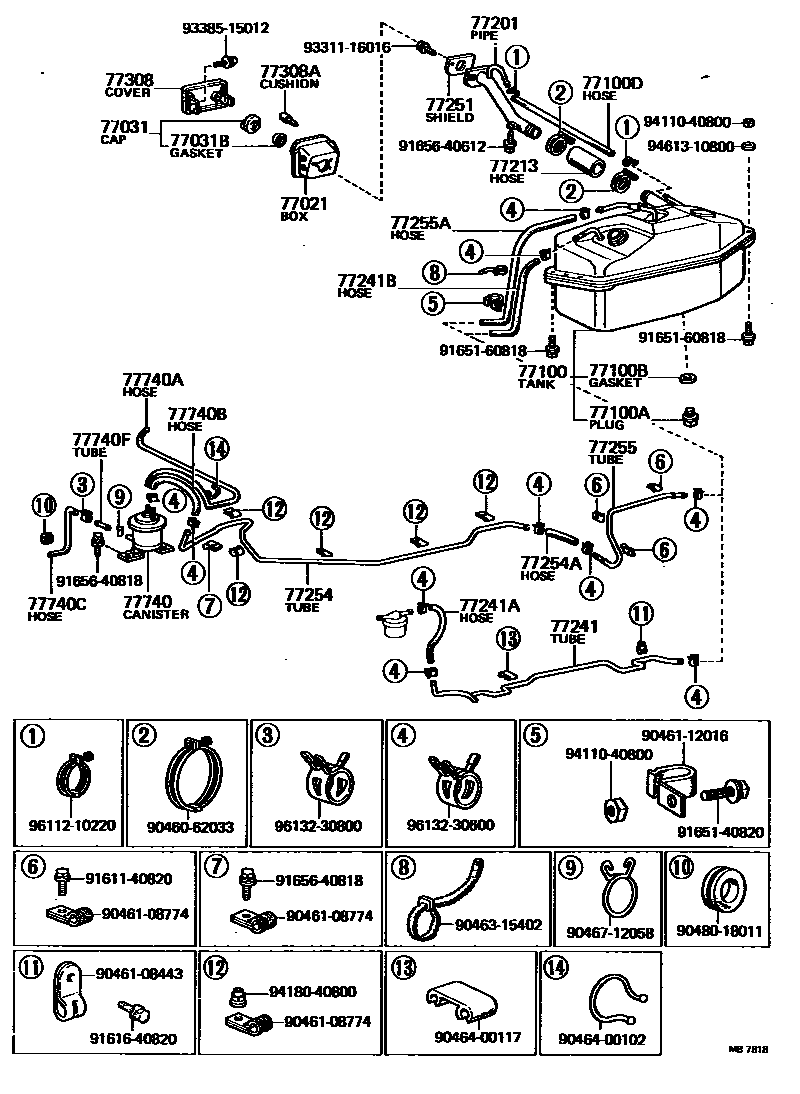

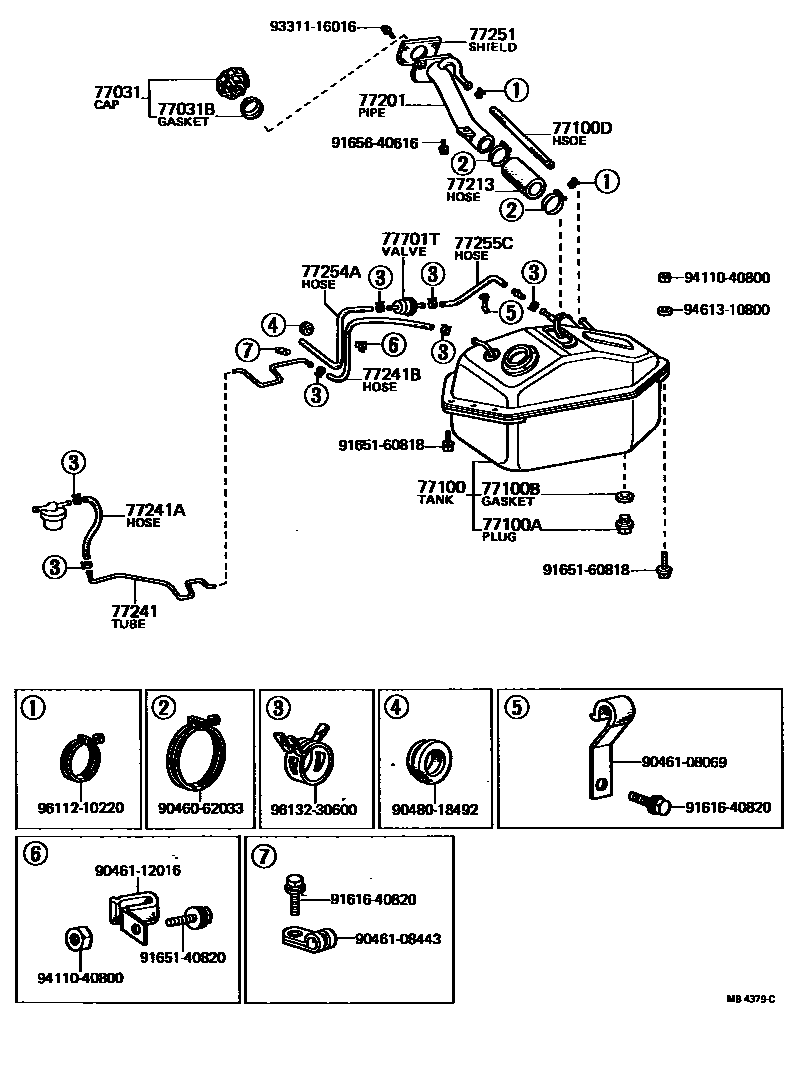

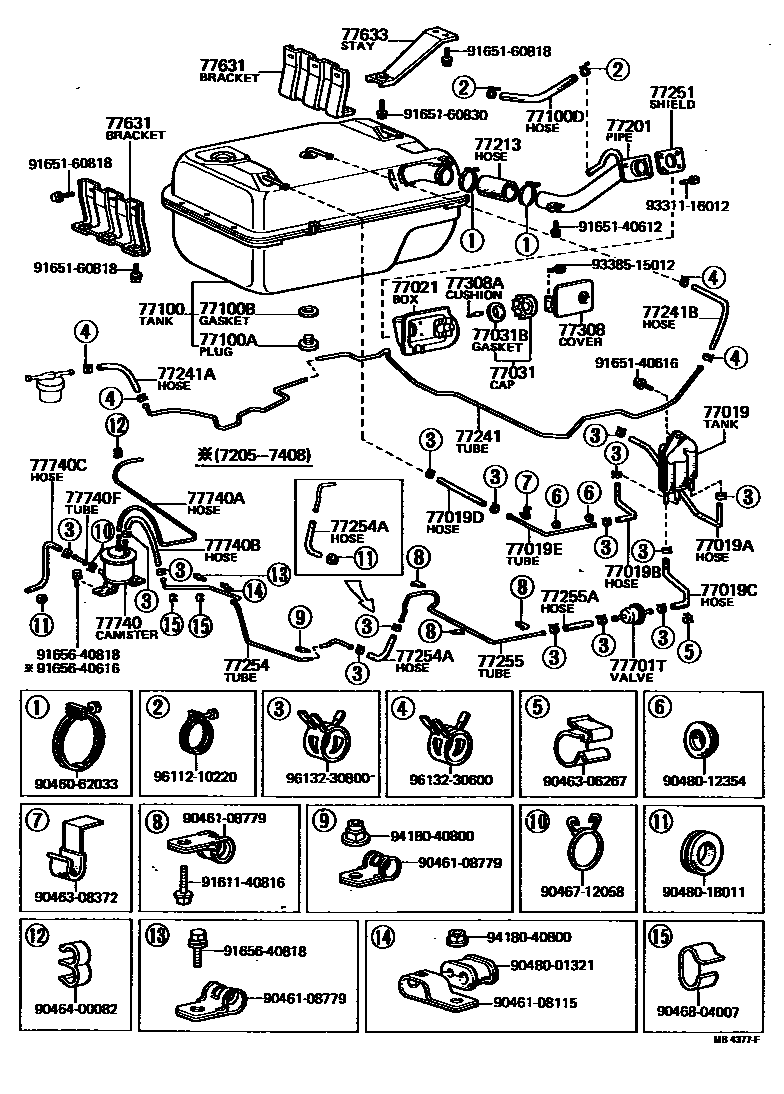

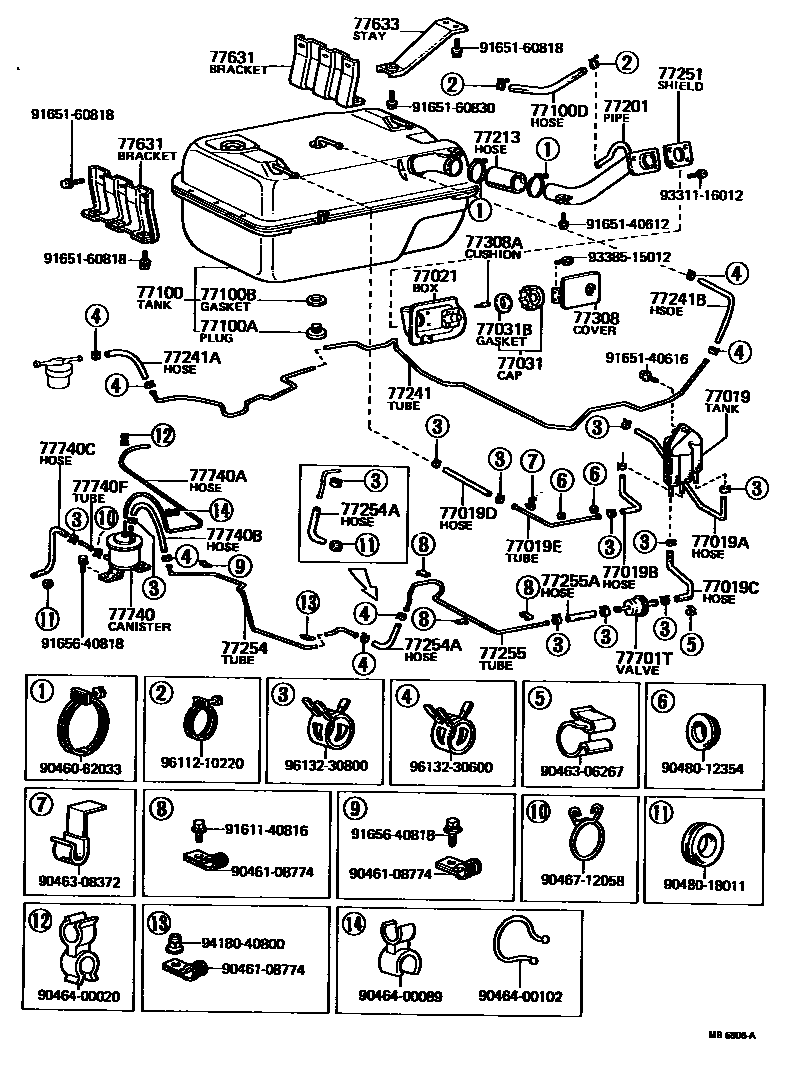

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77019 | Fuel expansion tank sub-assembly | 77193-35010 |
| 77019A | No. 1 fuel hose (for fuel expansion tank) | 77226-35020 |
| 77019B | No. 2 fuel hose (for fuel expansion tank) | 77225-35020 |
| 77019C | No. 3 fuel hose (for fuel expansion tank) | 77224-35010 |
| 77019D | No. 4 fuel hose (for fuel expansion tank) | 95332-08024 |
| 77019E | No. 1 fuel pipe (for fuel expansion tank) | 77244-35010 |
| 77021 | Fuel tank inlet box assembly | 65507-89102 · 65507-89105 |
| 77031 | Fuel tank cap assembly | 77310-12041 · 77310-14070 · 77310-89105 |
| 77031B | Gasket (for fuel tank cap) | 77316-12040 · 77316-12050 |
| 77100 | fuel tank assembly | 77001-35909 · 77001-35915 · 77001-35918 · 77001-35920 · 77001-35922 |
| 77100A | Screw plug (for fuel tank) | 90105-12018 · 90341-24036 |
| 77100B | Gasket (for fuel tank) | 90430-12038 · 90430-12245 · 90430-24047 |
| 77100D | No. 1 fuel hose (for fuel tank) | 90445-21883 · 90445-22904 · 90445-22907 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35060 · 77201-35071 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77214-35030 · 77214-35031 · 77214-35050 |
| 77241 | No. 1 main fuel pipe | 77252-35080 · 77252-35090 · 77252-35100 · 77252-35120 · 77252-35121 · 77252-35130 · 77252-35131 · 77252-35140 · 77252-35141 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 95331-06026 · 95331-08022 · 95332-06028 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 95331-08015 · 95331-08030 · 95332-06030 · 95332-06046 · 95332-06050 |
| 77251 | No. 1 fuel tank inlet mask | 77262-35011 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77254-35021 · 77254-35022 · 77254-35023 · 77254-35024 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 77754-35010 · 77754-35040 · 77754-35050 · 95331-08024 · 95332-06015 · 95332-06024 |
| 77255 | No. 2 fuel evaporation exhaust pipe | 77245-35010 · 77245-35020 · 77255-35030 · 77255-35040 · 77263-35010 |
| 77255A | No. 1 fuel hose (for No. 2 drain pipe) | 95331-06065 · 95331-08005 |
| 77255C | No. 3 fuel hose (for No. 2 drain pipe) | 95331-08034 · 95332-06028 |
| 77308 | Fuel inlet cap sub-assembly | 77308-89101 |
| 77308A | Cushion (for fuel inlet cap) | 90541-05080 |
| 77631 | No. 1 fuel tank bracket | 77631-35061 |
| 77633 | fuel tank stay | 77633-35010 · 77633-35011 |
| 77701T | Check valve (for main fuel tank) | 90917-10004 · 90917-10012 · 90917-10020 |
| 77740 | Carbon canister assembly | 77740-35022 · 77740-35023 · 77740-35024 · 77740-35025 |
| 77740A | No. 1 fuel hose (for canister) | 90445-07338 · 95411-19960 |
| 77740B | No. 2 fuel hose (for charcoal canister) | 95331-06026 · 95331-08026 · 95332-06024 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 77754-35020 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77246-35010 |
