Toyota HILUX 工具箱和牌照支架 — Figure 7554

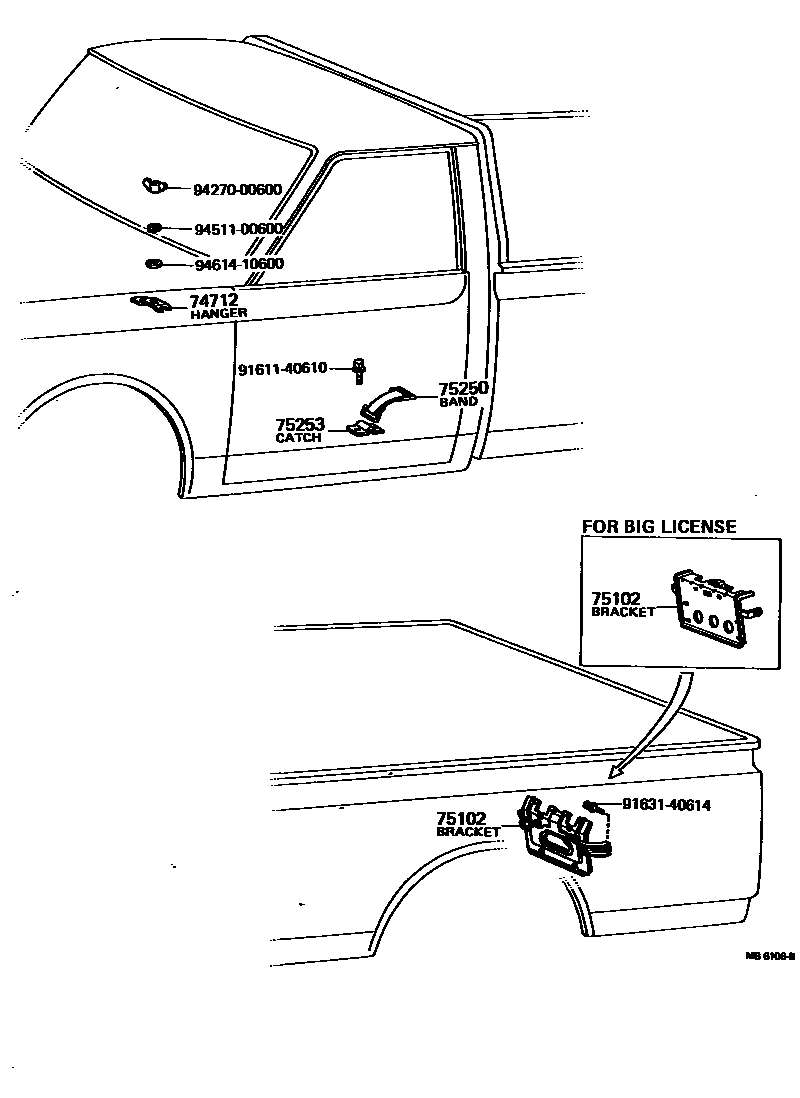

Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74712 | Jack fixed frame hanger | 74714-89102 |
| 75102 | Rear license plate bracket sub-assembly | 75102-89108 · 75102-89109 |
| 75250 | No. 1 tool box places the strap assembly | 74702-89101 |
| 75253 | Tool box storage strap buckle | 74733-89101 |
