Toyota HILUX 车身镶条 — Figure 7553

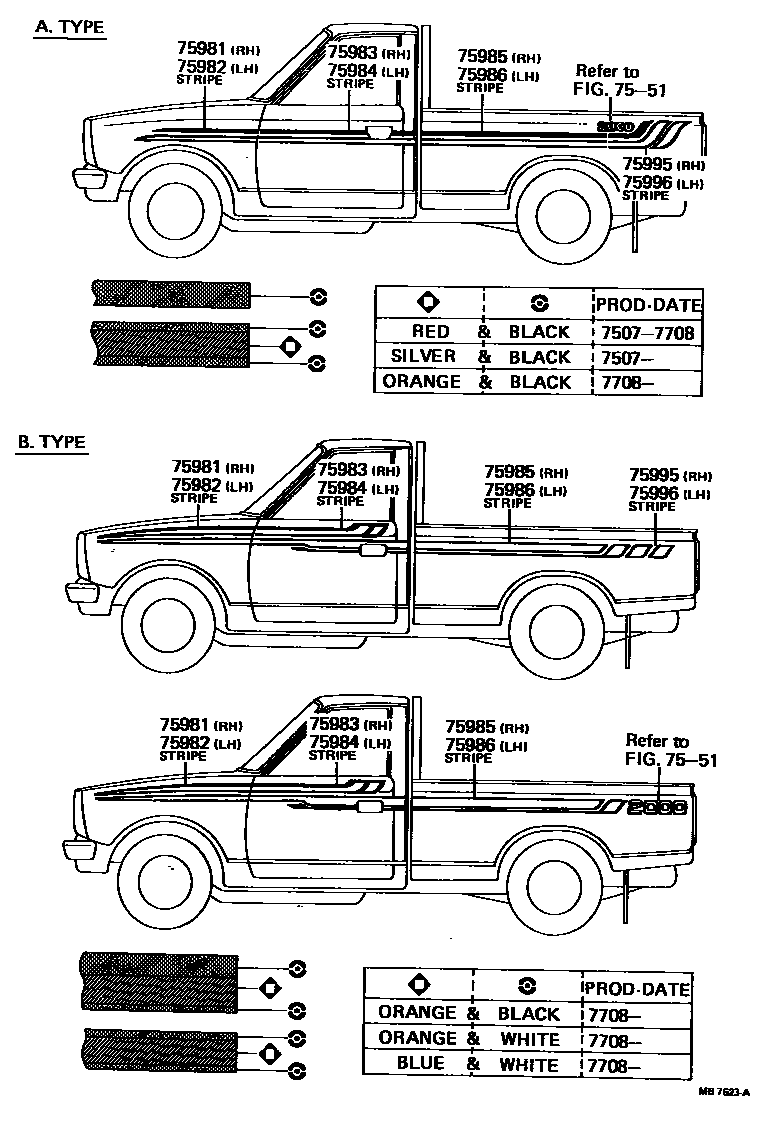

Toyota HILUX EPC diagram 7553, 车身镶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75981 | No. 1 right front fender panel | 75981-89103 · 75981-89104 · 75981-89105 · 75981-89106 · 75981-89903 · 75981-89908 · 75981-89909 |
| 75982 | No. 1 left front fender panel | 75982-89102 · 75982-89103 · 75982-89104 · 75982-89105 · 75982-89902 · 75982-89908 · 75982-89909 |
| 75985 | Right front door trim | 75994-89101 · 75994-89102 · 75994-89901 · 75994-89902 · 75994-89903 · 75994-89904 · 75995-89101 · 75995-89102 · 75995-89105 · 75995-89106 · 75995-89111 · 75995-89112 · 75995-89114 · 75995-89901 · 75995-89902 · 75995-89904 |
| 75986 | Left front door trim | 75995-89101 · 75995-89102 · 75995-89105 · 75995-89106 · 75995-89109 · 75995-89110 · 75995-89111 · 75995-89112 · 75995-89114 · 75995-89901 · 75995-89902 · 75995-89904 · 75995-89905 · 75995-89906 · 75995-89907 · 75995-89908 |
| 75995 | front roof molding | 75996-89101 · 75996-89102 · 75996-89103 · 75996-89105 · 75996-89901 · 75996-89902 · 75996-89903 |
| 75996 | Rear bumper molding | 75997-89101 · 75997-89102 · 75997-89103 · 75997-89105 · 75997-89901 · 75997-89902 · 75997-89903 |
