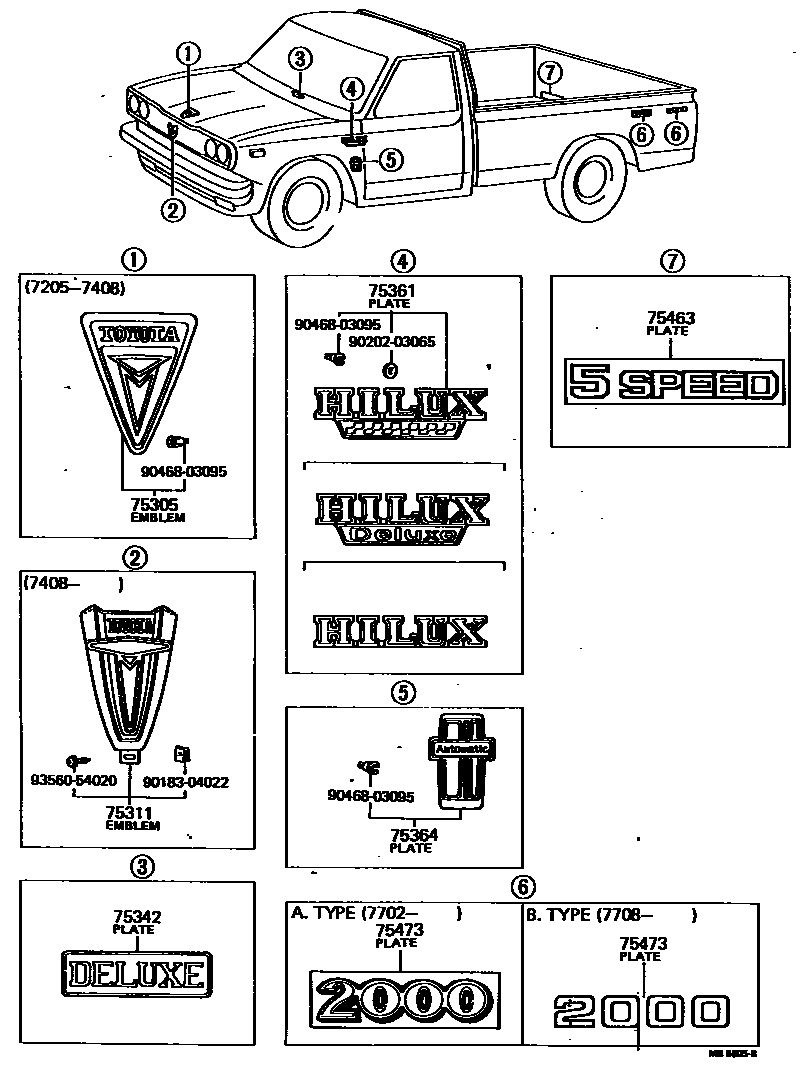

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75331-89101 |
| 75311 | Radiator grille (or front panel) plate | 75311-89803 · 75311-89804 |
| 75342 | Instrument panel No. 2 nameplate (grade mark) | 75341-89101 |
| 75361 | Front fender No. 1 nameplate (model mark) | 75361-89105 · 75361-89106 · 75361-89109 · 75361-89110 · 75361-89113 |
| 75364 | Front fender No. 2 nameplate (grade mark) | 75362-89103 |
| 75473 | No. 3 nameplate on the rear body (for displacement description) | 75473-89104 · 75473-89904 · 75996-89104 · 75996-89904 · 75996-89905 · 75997-89104 · 75997-89904 · 75997-89905 |
