Toyota HILUX 扶手和遮阳板 — Figure 7451

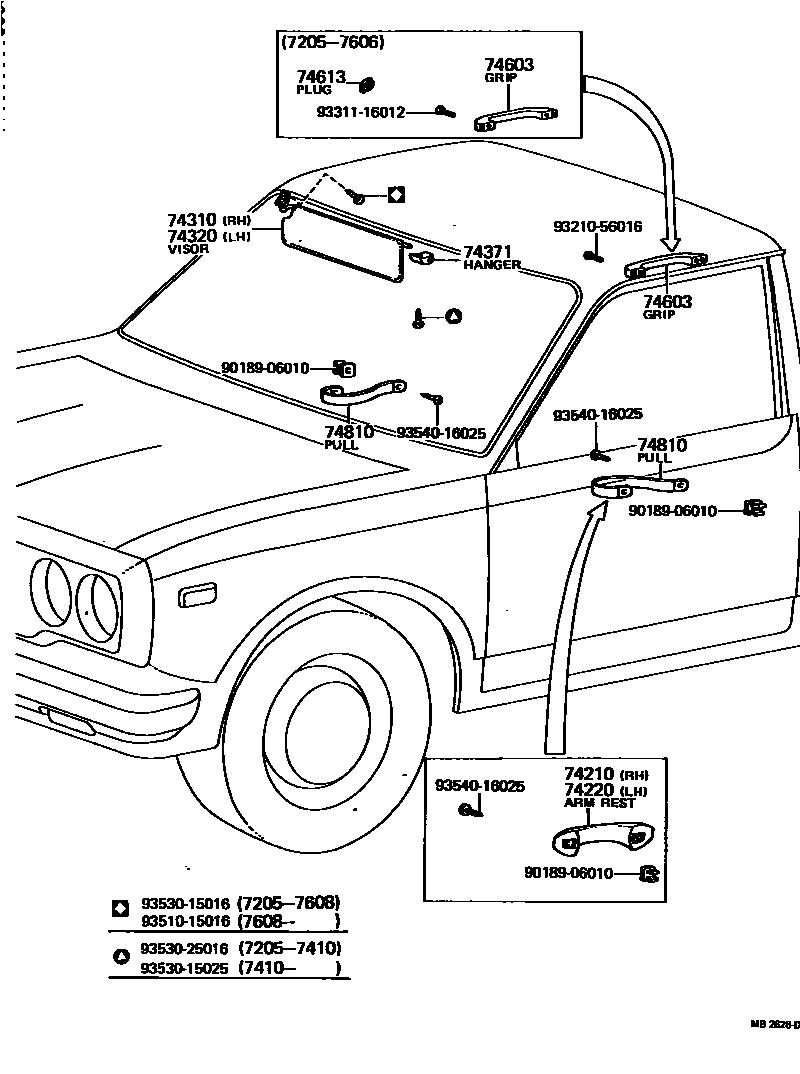

Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74310 | Right sun visor assembly | 74310-89106 · 74310-89107 · 74310-89108 |
| 74320 | Left sun visor assembly | 74310-89106 · 74310-89107 · 74310-89108 |
| 74371 | sun visor hanger | 74371-89101 · 74371-89102 |
| 74603 | Front auxiliary handle sub-assembly | 74611-89101 |
| 74810 | Car door inner handle assembly | 74810-10010 |
