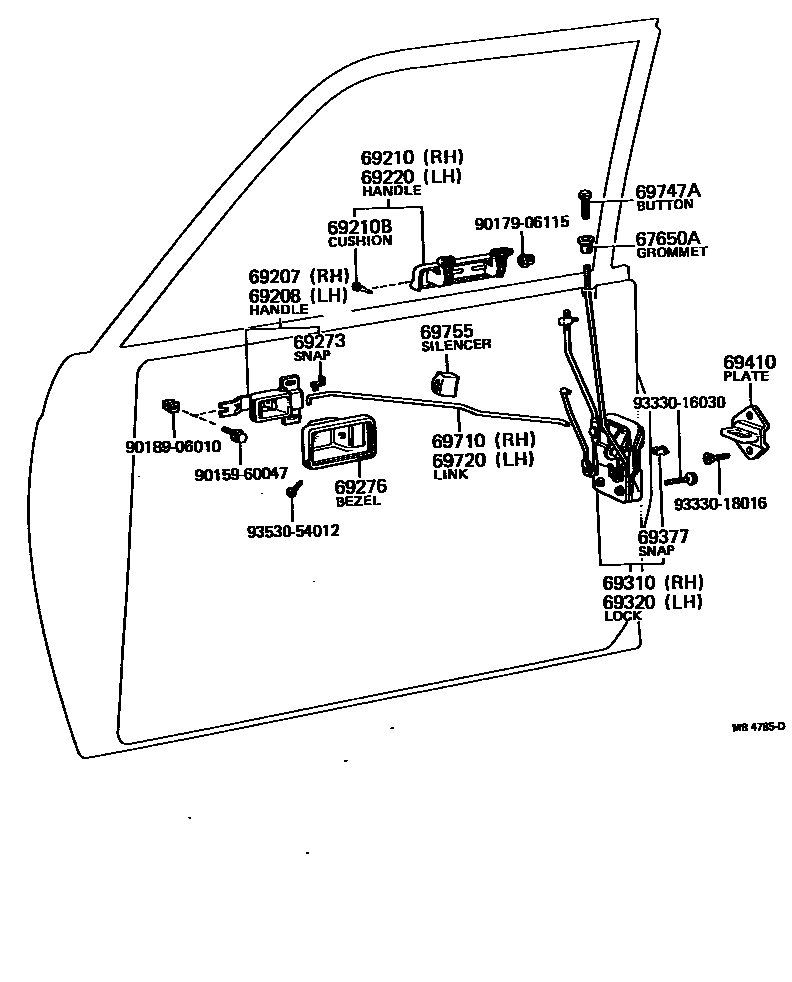

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67650A | Seal (for door panel locking button) | 90480-10102 |
| 69207 | Right front door inner handle sub-assembly | 69207-20030 · 69207-22020 |
| 69208 | Left front door inner handle sub-assembly | 69208-20020 · 69208-22020 |
| 69210 | Right front door outer handle assembly | 69210-89104 · 69210-89105 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03062 |
| 69220 | Left front door outer handle assembly | 69220-89104 · 69220-89105 |
| 69273 | Inner door handle lever buckle | 69273-30020 |
| 69276 | Front door inner handle frame | 69276-22020 |
| 69310 | Right front door lock assembly | 69310-89106 |
| 69320 | Left front door lock assembly | 69320-89106 |
| 69377 | Front door lock control link buckle | 69377-30020 |
| 69410 | Front door lock plate assembly | 69410-12020 · 69410-12021 · 69410-89102 |
| 69710 | Right front door opening control linkage assembly | 69715-89104 |
| 69720 | Left front door opening control linkage assembly | 69716-89104 |
| 69747A | Door lock button (for front doors) | 69747-20020 · 69747-30012 |
| 69755 | Front door lock link silencer | 69759-12011 · 69759-20010 · 69759-89101 |
