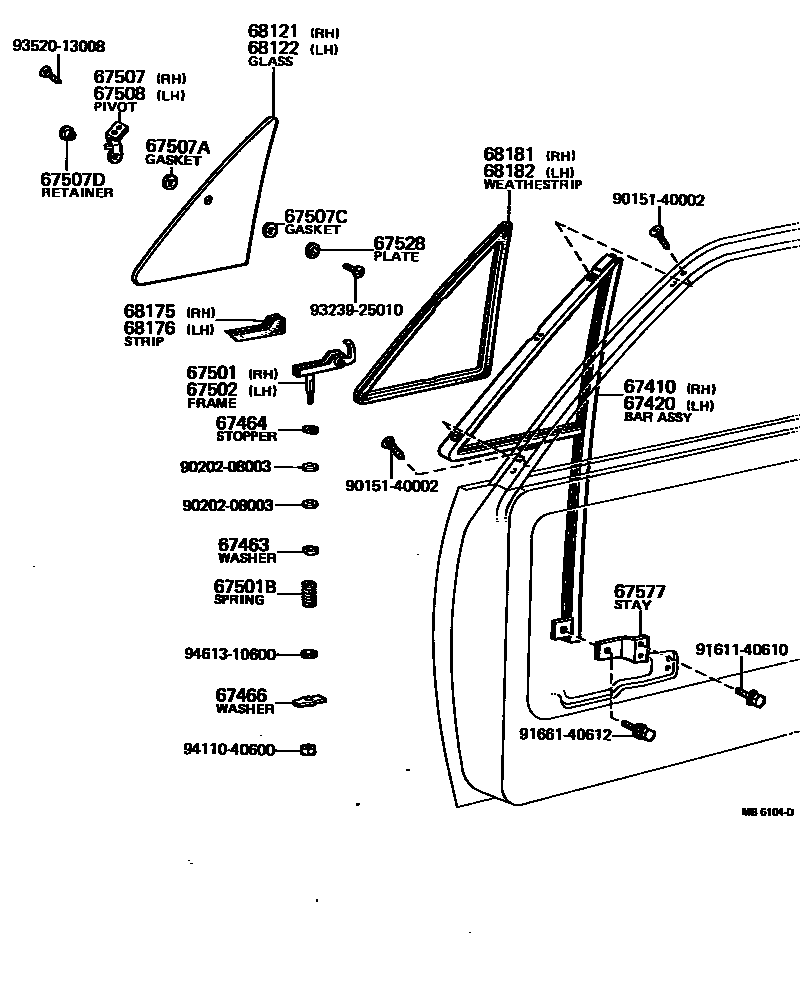

Toyota HILUX 前门通风车窗 — Figure 6752
Toyota HILUX EPC diagram 6752, 前门通风车窗, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67410 | Right front door window divider assembly | 67401-89103 |
| 67420 | Left front door window divider assembly | 67402-89103 |
| 67463 | Front door ventilation triangle window lower pivot gasket | 67463-20010 |
| 67464 | Front door ventilation triangle window opening stop | 67464-89102 |
| 67466 | Locking washers (for ventilation triangular glazing frames) | 67466-89101 |
| 67501 | Right ventilated triangular window glass frame sub-assembly | 67505-89101 |
| 67502 | Left ventilated triangular window glass frame sub-assembly | 67506-89101 |
| 67507 | Right ventilation triangular window upper pivot sub-assembly | 67507-89101 |
| 67507A | No. 1 Ventilation Triangular Window Pivot Upper Pad | 90430-07001 |
| 67507C | No. 2 Ventilation Triangular Window Pivot Upper Pad | 90430-04003 |
| 67507D | Ventilation triangular window upper pivot fixing | 62735-89101 |
| 67508 | Left ventilation triangle window upper pivot sub-assembly | 67508-89101 |
| 67528 | Ventilation triangular window upper pivot plate | 67528-89101 |
| 67577 | Ventilation triangular window slot lower bracket | 67576-89101 |
| 68121 | Right ventilated triangular window glass | 68121-89106 |
| 68122 | Ventilation triangle window left | 68122-89104 |
| 68175 | Right ventilation triangular window frame sealing strip | 68175-89102 |
| 68176 | Left ventilation triangular window frame sealing strip | 68175-89103 |
| 68181 | Right ventilating triangle window No. 1 sealing strip | 68181-89103 |
| 68182 | No. 1 sealing strip of left ventilation triangle window | 68182-89103 |
