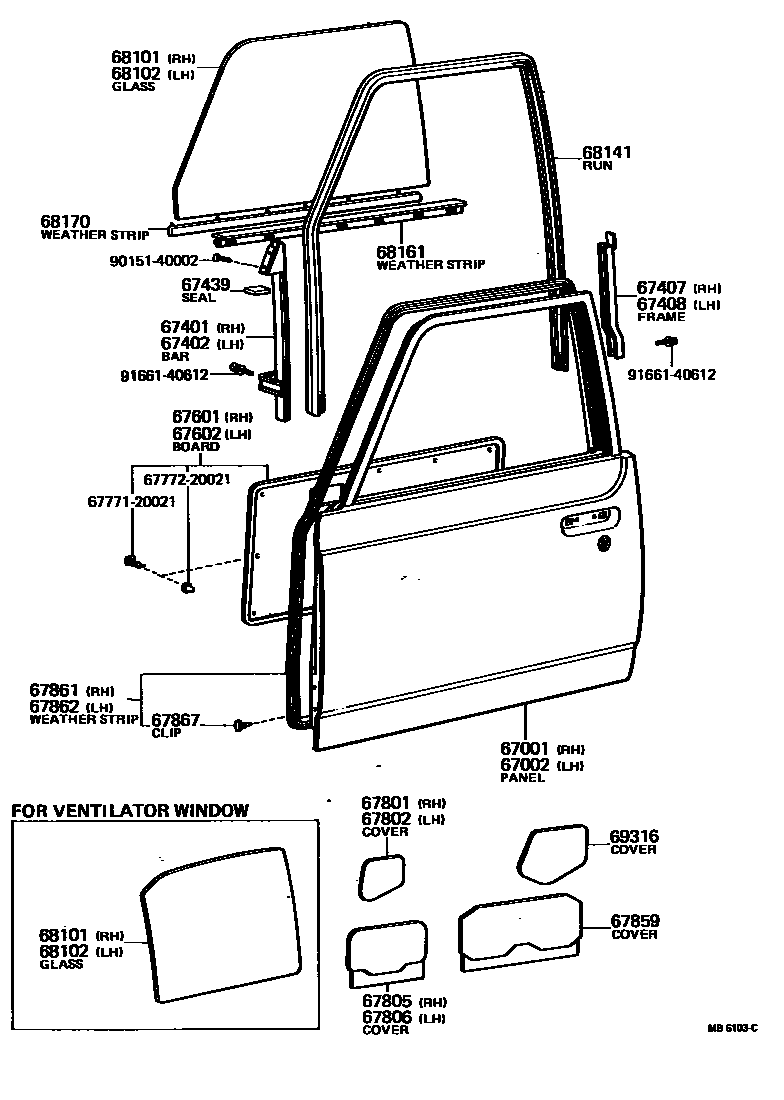

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-89106 · 67001-89108 · 67001-89111 · 67001-89112 |
| 67002 | Left front door panel sub-assembly | 67002-89107 · 67002-89108 · 67002-89113 · 67002-89114 |
| 67401 | Right front door window front stay sub-assembly | 67401-89102 |
| 67402 | Left front door window front stay sub-assembly | 67402-89102 |
| 67407 | Right front door rear lower door frame sub-assembly | 67407-89101 |
| 67408 | Left front door rear lower door frame sub-assembly | 67408-89101 |
| 67439 | front joint seal | 67439-89101 |
| 67801 | Right front door No. 1 hole cover sub-assembly | 67839-89101 · 67839-89102 |
| 67802 | Left front door No. 1 hole cover sub-assembly | 67839-89101 · 67839-89102 |
| 67805 | Right front door No. 2 hole cover sub-assembly | 67805-89101 · 67805-89103 · 67805-89104 |
| 67806 | Left front door No. 2 hole cover sub-assembly | 67806-89101 · 67806-89103 · 67806-89104 |
| 67859 | Front door glass slot access hole cover | 67801-89102 · 67802-89102 |
| 67861 | Right front door seal | 67861-89102 |
| 67862 | Left front door seal | 67862-89101 |
| 67867 | Car door seal strip clip | 67867-12010 |
| 68101 | Right front door glass sub-assembly | 68111-89104 · 68111-89106 |
| 68102 | Left front door glass sub-assembly | 68112-89103 · 68112-89105 |
| 68141 | Front door glass lift chute | 68141-89103 · 68141-89104 |
| 68161 | Front door glass outer seal strip | 68160-89102 · 68160-89103 |
| 68170 | Front door glass inner sealing strip assembly | 68170-89103 · 68171-89111 · 68172-89101 |
| 69316 | Front door lock cover | 67836-89101 · 67836-89102 |
