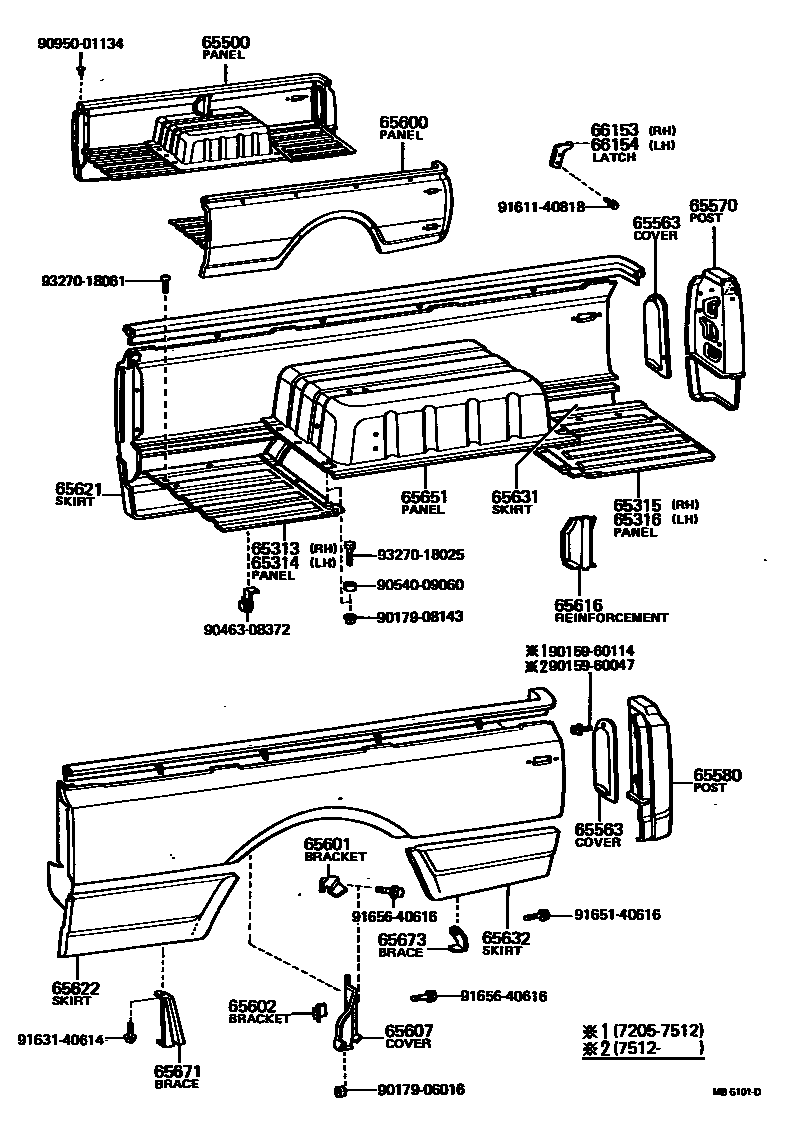

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65313 | Front floor right corner panel | 65313-89104 · 65313-89105 · 65313-89106 |
| 65314 | Front floor left corner panel | 65314-89106 · 65314-89107 · 65314-89108 |
| 65315 | Rear floor right corner panel | 65315-89104 · 65315-89105 |
| 65316 | Rear floor left corner panel | 65316-89104 · 65316-89105 |
| 65500 | Right rear body side panel assembly | 65500-89110 · 65500-89111 · 65500-89120 |
| 65563 | Rear combination light cover | 65563-89101 |
| 65570 | Right side panel rear end column assembly | 65550-89102 · 65550-89104 |
| 65580 | Left side panel rear end column assembly | 65560-89102 · 65560-89104 |
| 65600 | Left rear body side panel assembly | 65600-89113 · 65600-89114 · 65600-89123 |
| 65601 | No. 1 fuel expansion tank bracket sub-assembly | 65628-89102 |
| 65602 | No. 2 fuel expansion tank bracket | 65629-89102 |
| 65607 | Fuel expansion tank cap sub-assembly | 65620-89102 |
| 65616 | Side panel reinforcement | 65616-89102 |
| 65621 | Right front side panel skirt | 65621-89103 · 65621-89104 · 65621-89105 |
| 65622 | Left front side panel skirt | 65622-89103 · 65622-89104 · 65622-89105 |
| 65631 | Right rear side panel skirt | 65631-89103 · 65631-89104 |
| 65632 | Left rear side panel skirt | 65632-89103 · 65632-89104 |
| 65651 | wheel arch plate | 65651-89103 · 65652-89105 |
| 65671 | Front side panel skirt bracket | 65671-89102 |
| 65673 | Rear side panel skirt bracket | 65673-89102 · 65674-89102 |
| 66115 | Railing hinge pin | 90243-08028 |
| 66153 | Recessed lock bolt on right side of rear door | 66153-89102 |
| 66154 | Rear door left recessed latch | 66154-89102 |
