Toyota HILUX 后车身地板和翼子板 — Figure 6552

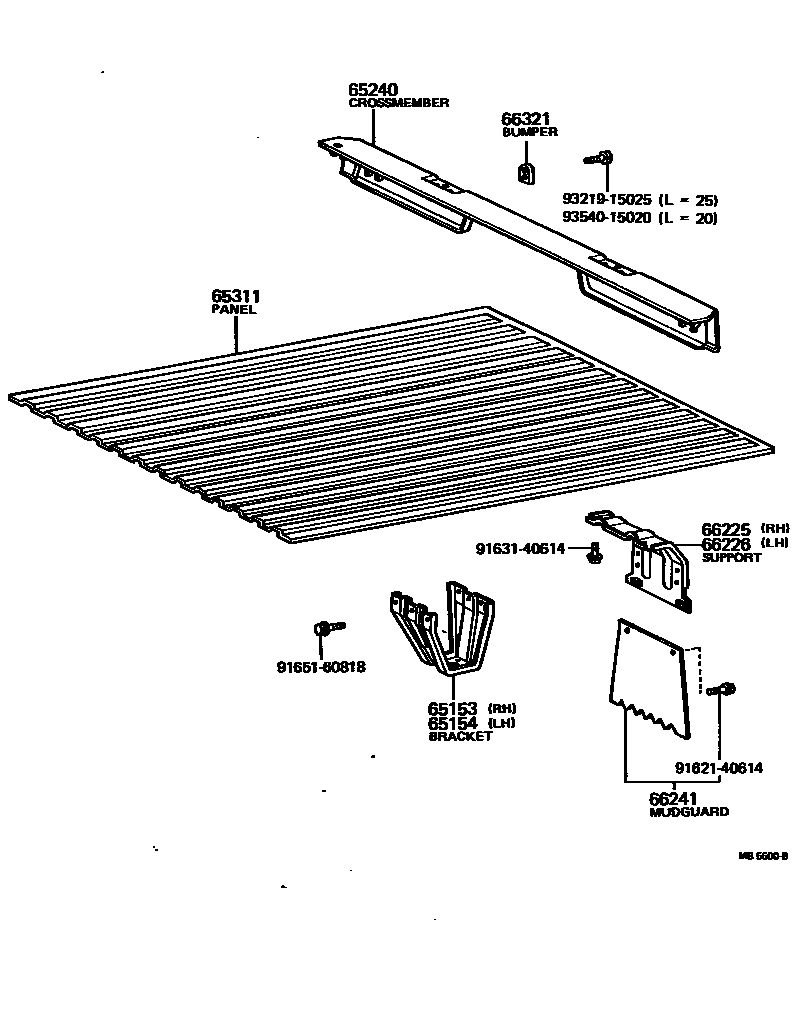

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65153 | No. 1 right side mounting bracket | 65103-89101 · 65103-89102 · 65153-89103 · 65153-89105 |
| 65154 | No. 1 left mounting bracket | 65103-89101 · 65103-89102 · 65153-89103 · 65153-89105 |
| 65240 | Rear body floor cross member | 65240-89105 · 65240-89106 |
| 65311 | central floor | 65311-89104 · 65311-89105 · 65311-89106 |
| 66225 | Rear fender right bracket | 66225-89102 |
| 66226 | Rear fender left bracket | 66225-89102 |
| 66241 | rear fender | 66241-89801 · 66241-89803 · 66241-89804 |
| 66321 | Railing rubber buffer block | 66321-89104 · 66321-89105 |
