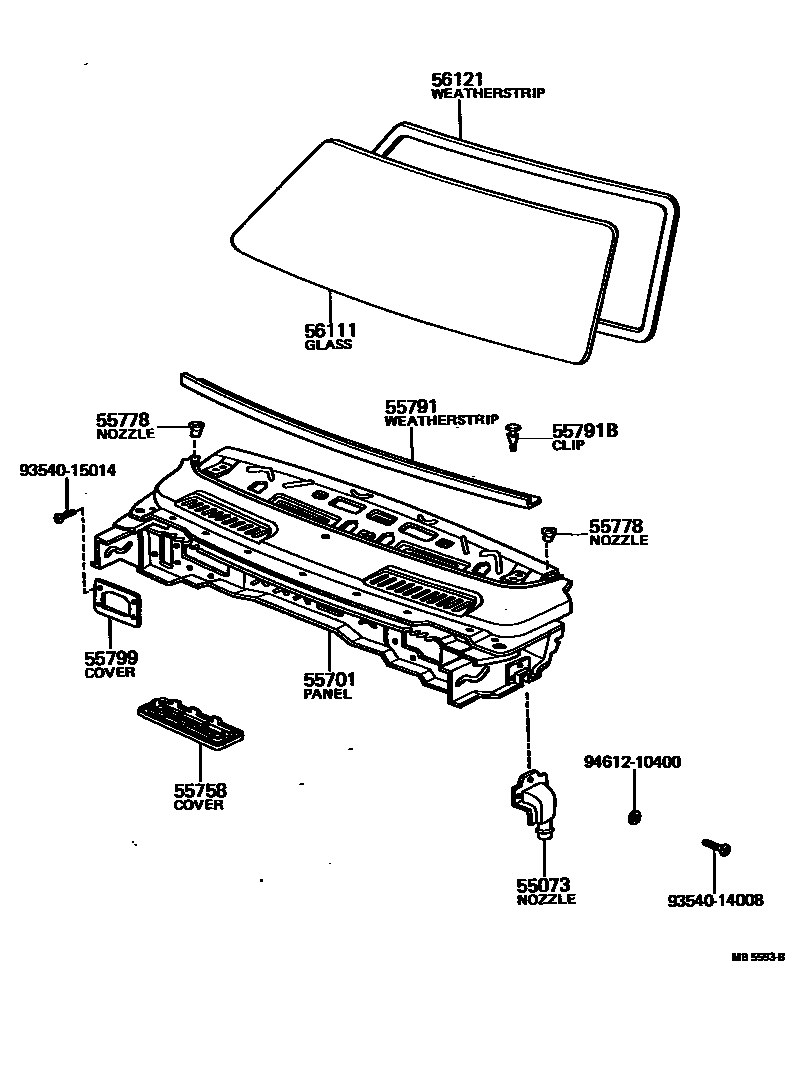

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55073 | Front wall water pumping nozzle sub-assembly | 55073-20010 |
| 55701 | Front apron sub-assembly | 55701-89101 · 55701-89102 · 55701-89104 · 55701-89105 · 55701-89106 |
| 55758 | heater duct cover | 55759-89101 |
| 55778 | Front water pumping device nozzle | 55798-89102 |
| 55791 | Sealing strip from engine cover to cowl upper cover | 53383-89103 |
| 55791B | Clamp (for sealing strip from engine cover to cowl upper cover) | 90467-07050 |
| 55799 | wiper motor cover | 55071-20010 |
| 56111 | windshield | 56111-89108 · 56111-89110 · 56111-89112 |
| 56121 | windshield seal | 56121-89109 · 56121-89110 |
