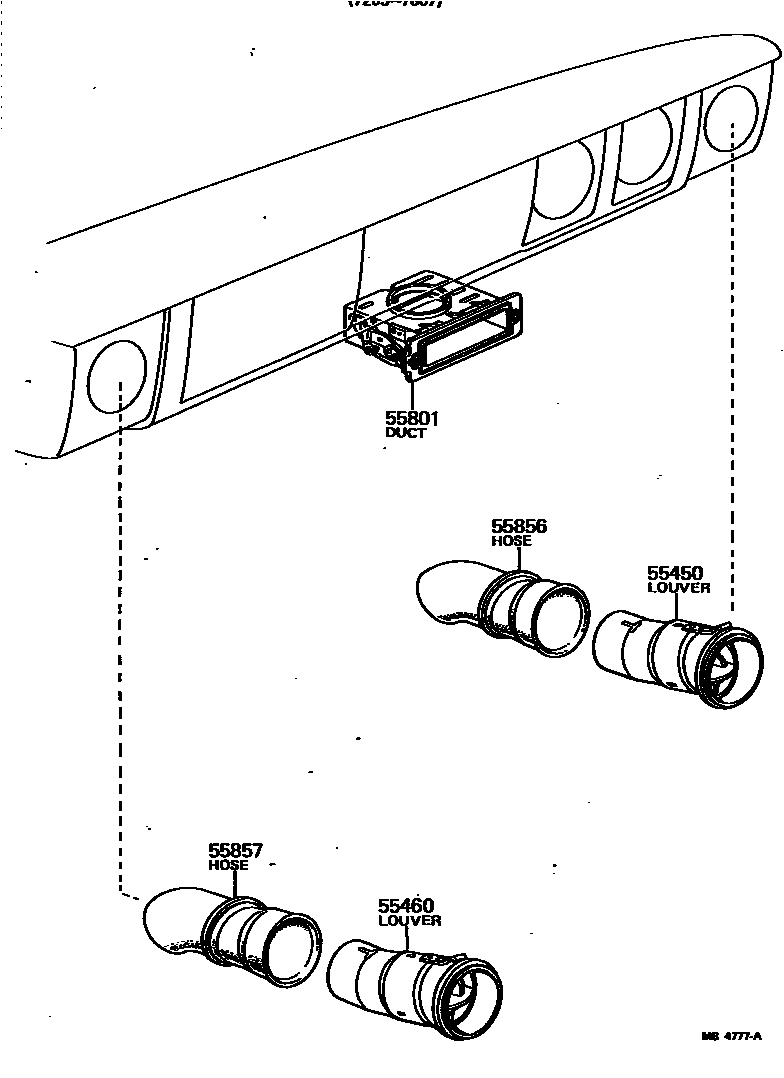

Toyota HILUX 前通风装置 — Figure 5552
Toyota HILUX EPC diagram 5552, 前通风装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55450 | Right ventilation grille assembly | 55402-10011 · 55402-89101 · 55402-89102 |
| 55460 | Left ventilation grille assembly | 55402-10011 · 55402-89101 · 55402-89102 |
| 55801 | Front ventilation duct assembly | 55810-89112 |
| 55856 | Right front ventilation duct hose | 55856-89101 |
| 55857 | Left front ventilation duct hose | 55856-89101 |
