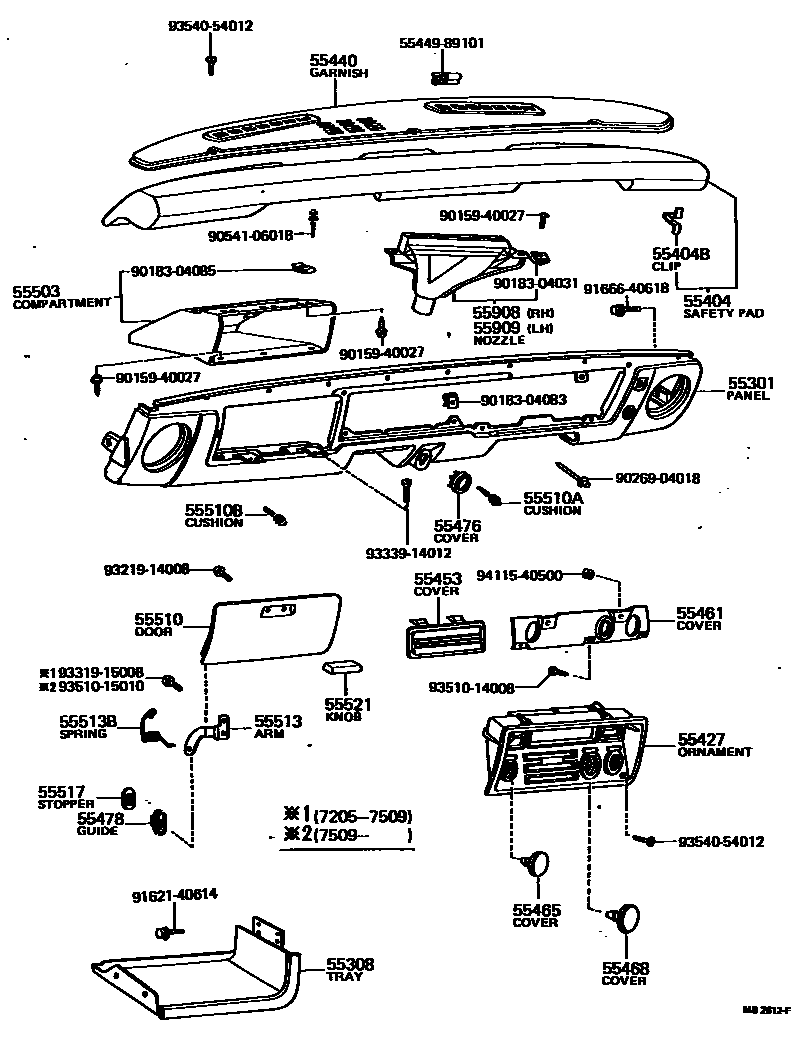

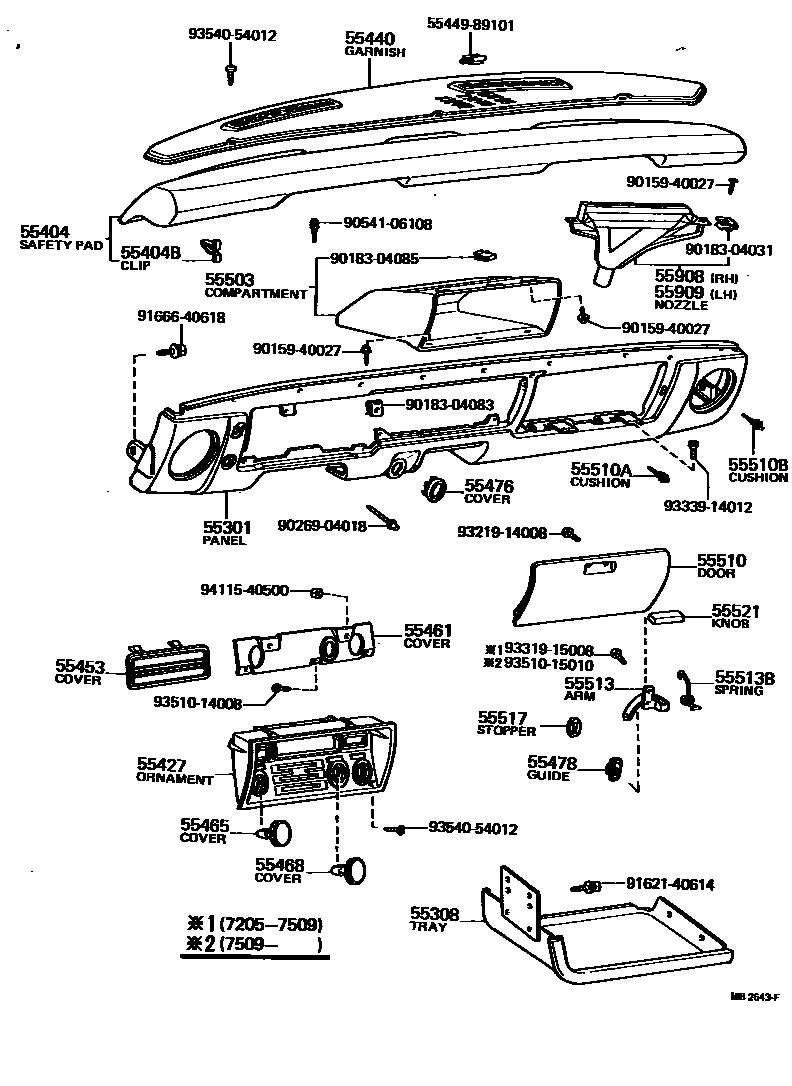

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55301 | Instrument panel sub-assembly | 55301-89107 · 55301-89108 · 55301-89109 · 55301-89110 · 55301-89112 |
| 55308 | Instrument panel bottom support sub-assembly | 55308-89102 · 55308-89103 · 55308-89104 · 55308-89105 · 55308-89106 |
| 55404B | Safety pad fixing clip | 75395-30010 |
| 55427 | Center instrument panel trim | 55416-89101 · 55416-89102 · 55416-89105 · 55416-89106 |
| 55440 | Center instrument panel trim | 55443-89101 |
| 55453 | Radio tuner opening cover | 55463-89103 |
| 55461 | Heater controller hole cover | 55912-89102 |
| 55465 | Dashboard hole cover | 55465-89101 |
| 55468 | Heater switch hole cover | 55468-10021 |
| 55476 | Cigarette lighter hole cover | 55476-89101 |
| 55478 | Glove box cover stopper arm hole guide | 55478-12011 |
| 55503 | Glove box sub-assembly | 55503-89102 |
| 55510 | Glove box cover assembly | 55501-89103 |
| 55510A | Cushion (for glovebox lid) | 90541-05080 |
| 55510B | Cushion (for glovebox lid) | 90541-06108 |
| 55513 | Glove box cover stopper arm | 55513-89103 · 55513-89104 |
| 55513B | Torsion spring (for glovebox lid stopper arm) | 90508-29347 · 90508-29348 |
| 55517 | Glove box cover arm stop | 55517-20010 |
| 55521 | Glove box lid handle | 55521-12012 |
| 55908 | Right defroster nozzle sub-assembly | 55951-89102 |
| 55909 | Left defroster nozzle sub-assembly | 55952-89102 |
