Toyota HILUX 后保险杠及附件 — Figure 5253

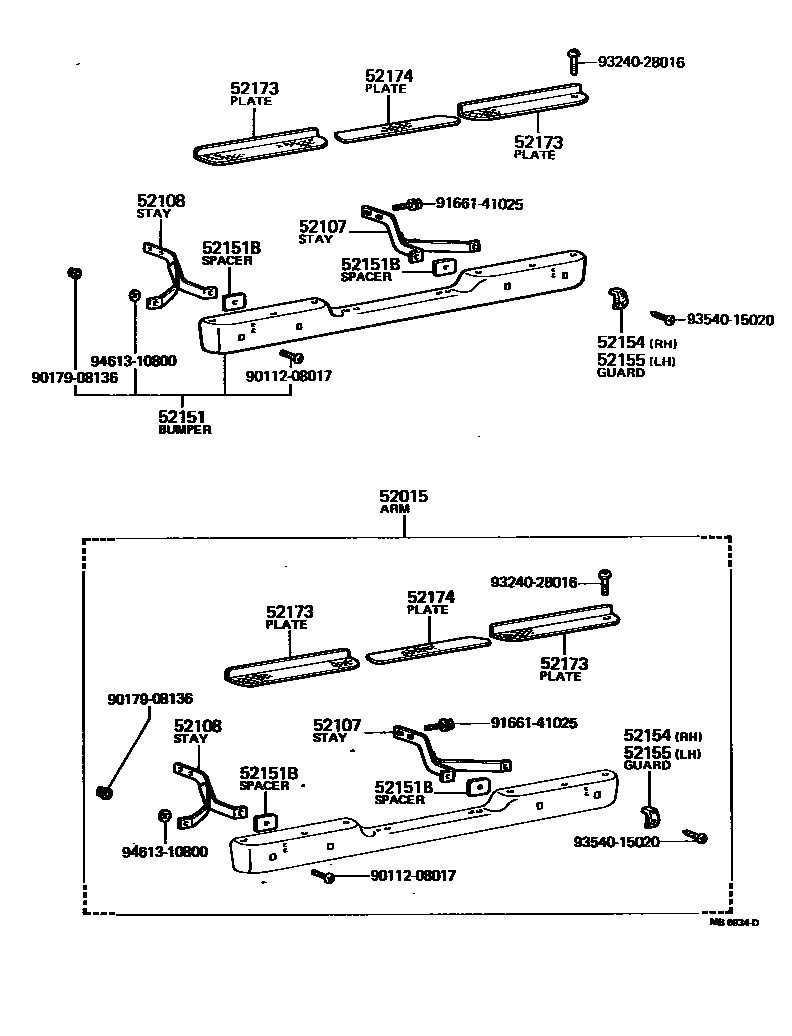

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015 | Rear bumper arm sub-assembly | 52015-89801 · 52015-89802 |
| 52107 | Rear bumper right side stay sub-assembly | 52015-89102 · 52015-89103 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-89102 · 52016-89103 |
| 52151 | Rear bumper assembly | 52151-89801 |
| 52151B | Spacer (for rear bumper assembly) | 52188-89101 |
| 52154 | Rear bumper right anti-collision bar | 52461-89101 |
| 52155 | Rear bumper left anti-collision bar | 52461-89101 |
| 52173 | Rear bumper side fenders | 52179-89101 |
| 52174 | Rear bumper center panel | 52179-89102 |
