Toyota HILUX 车架 — Figure 5151

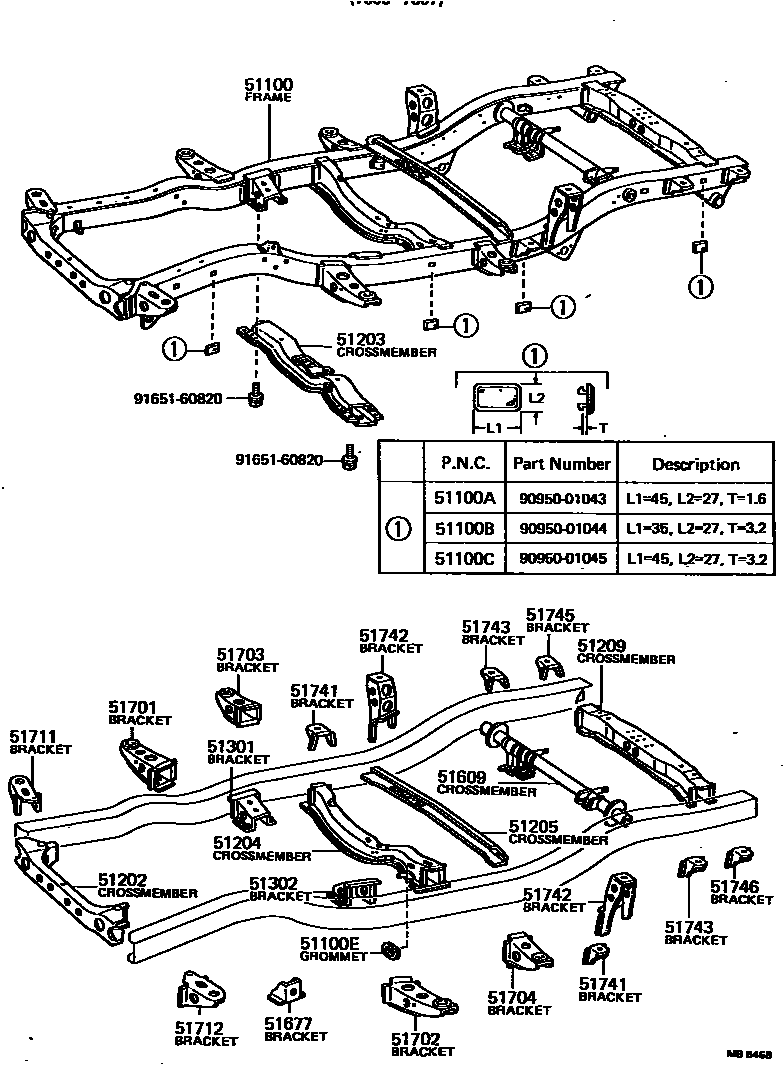

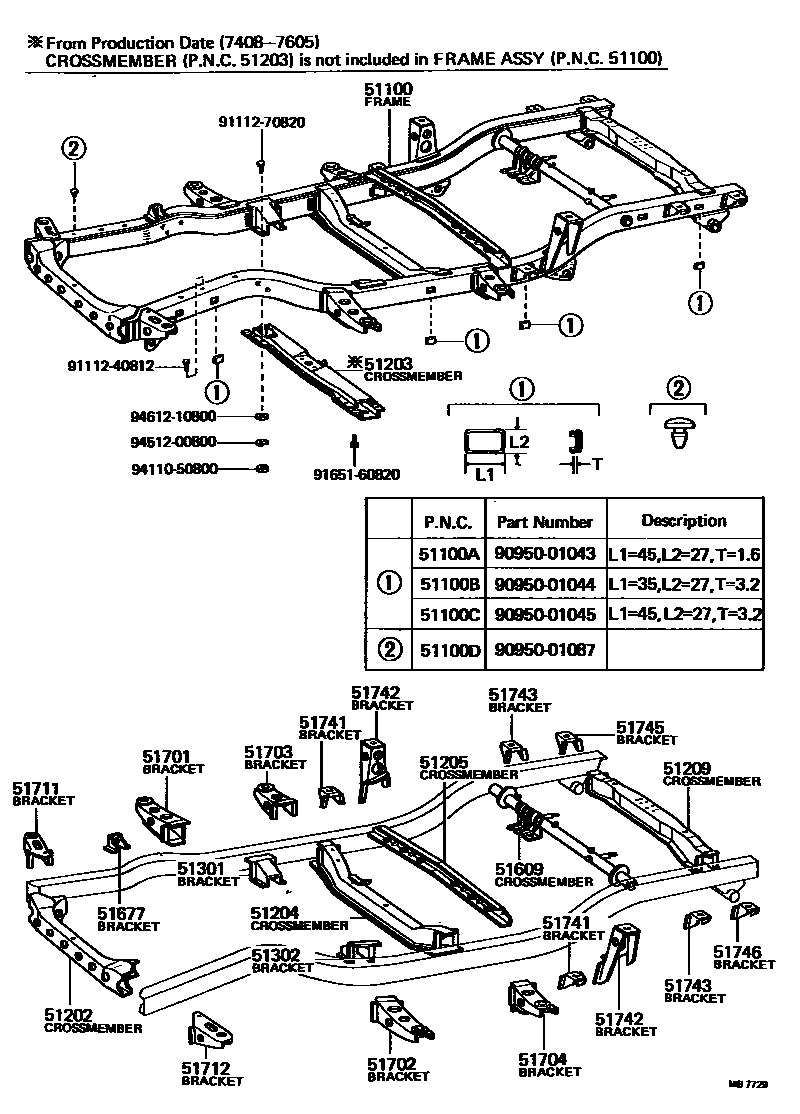

Toyota HILUX EPC diagram 5151, 车架, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100 | Frame assembly | 51001-35470 · 51001-35480 · 51001-35481 · 51001-35520 · 51001-35521 · 51001-35531 · 51001-35540 · 51001-35541 · 51001-35542 · 51001-35560 · 51001-35561 · 51001-35562 · 51001-35571 · 51001-35610 · 51001-35611 · 51001-35620 · 51001-35621 · 51001-35630 · 51001-35640 · 51001-35650 · 51001-35903 · 51001-35904 · 51001-35906 · 51001-35907 · 51001-35927 · 51001-35928 |
| 51100A | Hole plug (for frame) | 90950-01043 |
| 51100B | Hole plug (for frame) | 90950-01044 |
| 51100C | Hole plug (for frame) | 90950-01045 |
| 51100D | Hole plug (for frame) | 90950-01087 |
| 51100E | Gasket (for frame) | 90480-01019 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-35050 · 51201-35060 |
| 51203 | Frame No. 2 cross member sub-assembly | 51203-35060 · 51203-35070 · 51203-35080 · 51203-35100 · 51203-35101 · 51203-35110 · 51203-35111 · 51203-35131 · 51203-35140 · 51203-35141 |
| 51204 | Frame No. 3 beam sub-assembly | 51204-35040 · 51204-35050 · 51204-35060 · 51204-35080 · 51204-35081 · 51204-35090 · 51204-35091 · 51204-35092 · 51204-35101 · 51204-35112 · 51204-35120 |
| 51205 | Frame No. 4 beam sub-assembly | 51038-35010 · 51038-35020 · 51038-35040 |
| 51209 | Frame No. 8 beam sub-assembly | 51209-35050 · 51209-35060 · 51291-35060 · 51291-35061 |
| 51301 | Frame No. 2 crossbeam right side bracket | 51331-35040 · 51331-35041 · 51331-35051 |
| 51302 | Frame No. 2 cross member left bracket | 51332-35040 · 51332-35041 · 51332-35051 |
| 51609 | Rear shock absorber support beam sub-assembly | 51205-35020 · 51205-35030 · 51205-35040 · 51205-35041 · 51205-35060 · 51205-35071 · 51205-35072 |
| 51677 | Steering case bracket | 51677-35010 · 51677-35020 · 51677-35021 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35040 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51702-35040 · 51702-35050 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51704-35030 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-35030 |
| 51711 | Front body right side support or mounting bracket | 51711-35040 · 51711-35050 |
| 51712 | Front body left side support or mounting bracket | 51711-35040 · 51712-35020 |
| 51741 | Rear body No. 1 mounting bracket | 51741-35040 · 51741-35050 |
| 51742 | Body No. 2 mounting bracket | 51742-35021 · 51742-35030 · 51743-35041 · 51743-35050 |
| 51743 | Body No. 3 mounting bracket | 51741-35040 · 51741-35050 |
| 51745 | Body No. 5 mounting bracket | 51741-35040 · 51741-35050 |
| 51746 | Body No. 6 mounting bracket | 51741-35040 · 51741-35050 |
