Toyota HILUX Front Axle Hub — Figure 4801

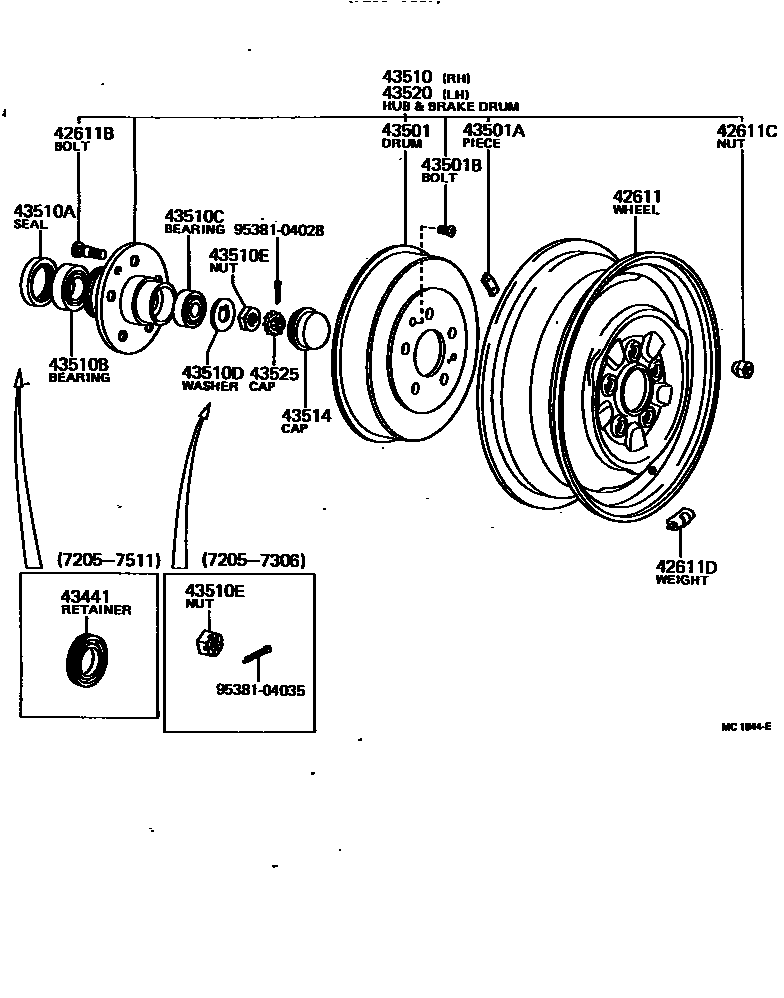

Toyota HILUX EPC diagram 4801, Front Axle Hub, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42611 | spoke wheel | 42601-26110 · 42601-35080 · 42601-35081 · 42601-35121 |
| 42611B | Hub bolts (for front axle) | 90942-02017 · 90942-02037 |
| 42611C | Hub nut (for front axle) | 90942-01007 · 90942-01021 |
| 42611D | Balance weight (for front spoke wheels) | 90942-03010 · 90942-03011 · 90942-03012 · 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 |
| 43441 | Steering knuckle grease retaining ring | 43441-30020 |
| 43501 | Front brake drum sub-assembly | 42431-35030 |
| 43501A | Balance weight (for front brake drum) | 90937-01100 · 90937-01117 · 90937-01118 · 90937-01119 · 90937-01146 |
| 43501B | Fixing bolt (for fixing front brake drum) | 90113-10035 |
| 43510 | Right front axle hub and brake drum assembly | 43510-35031 · 43510-39025 |
| 43510A | Oil seal (for front axle hub) | 90311-50136 |
| 43510B | Roller tapered bearing (for front axle inner bearing) | 90368-31005 · 90368-34039 |
| 43510C | Roller tapered bearing (for front axle outer bearing) | 90368-19004 · 90368-21065 |
| 43510D | Jaw washer (for steering knuckle washer) | 90214-20007 |
| 43510E | Nut (for steering knuckle) | 90170-19185 · 90171-19035 |
| 43514 | Front hub grease cap | 43514-30010 · 43514-35010 |
| 43520 | Left front axle hub and brake drum assembly | 43510-35031 · 43510-39025 |
| 43525 | Front wheel adjustment lock cover | 43525-22010 |
