Toyota HILUX 制动助力器和真空管 — Figure 4703

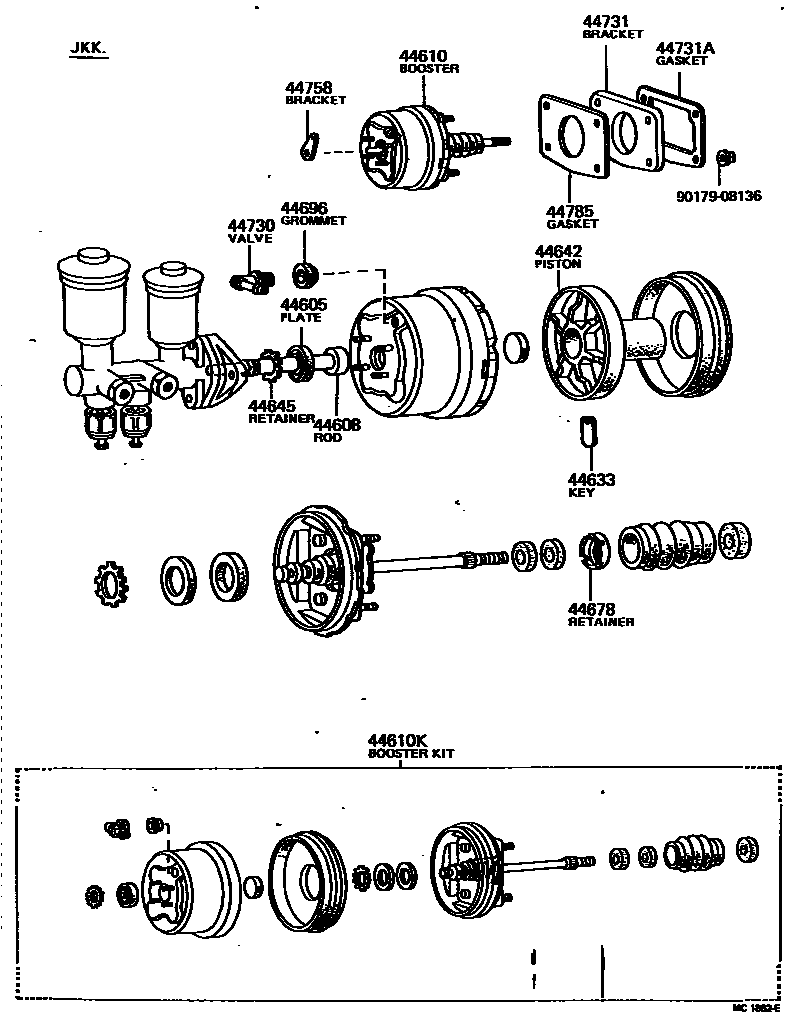

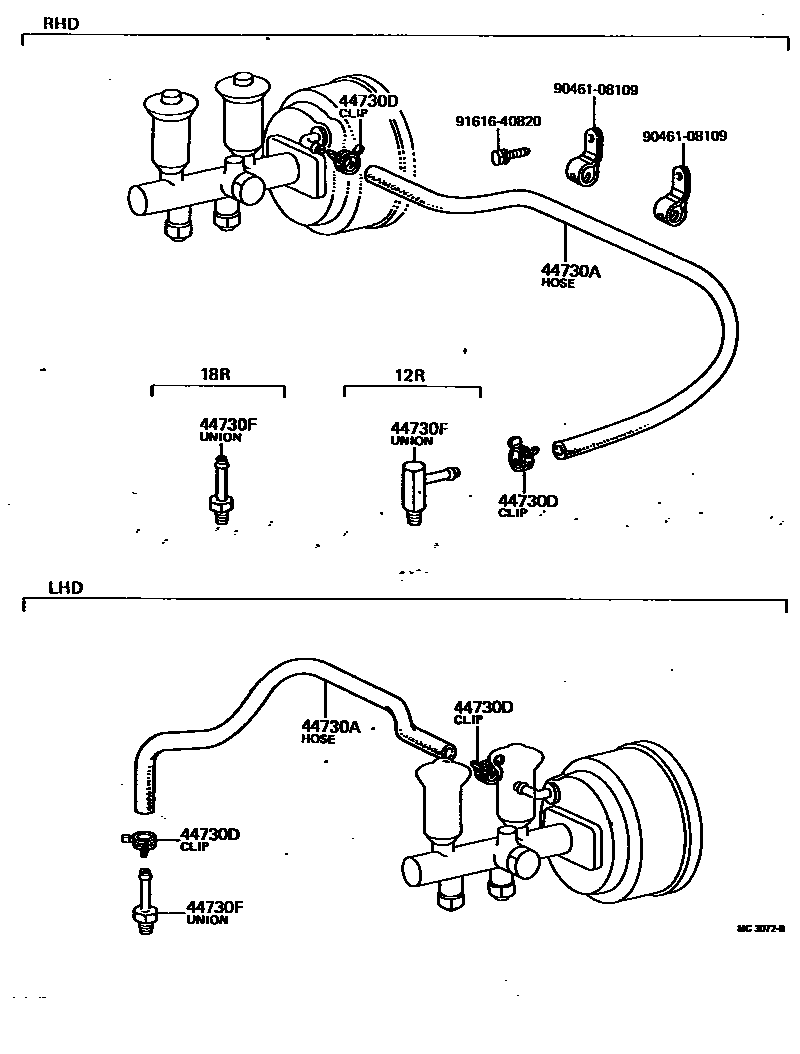

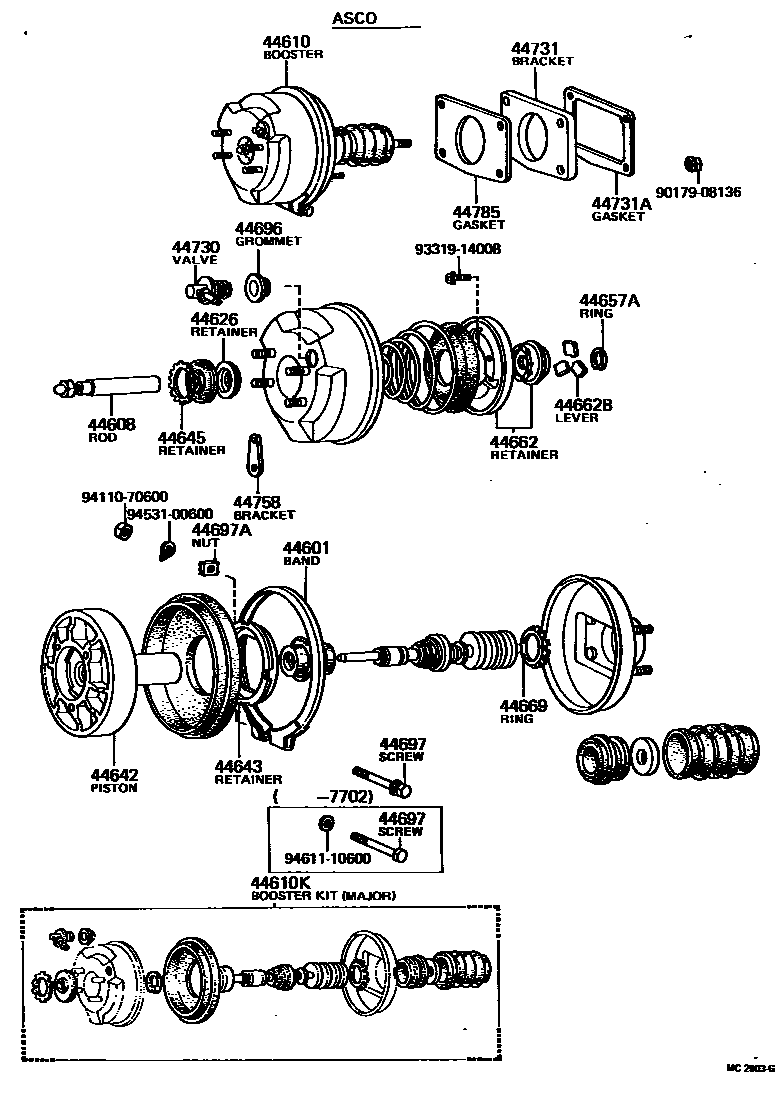

Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44601 | Booster body strap sub-assembly | 44605-60010 |
| 44605 | Booster plate and sealing ring sub-assembly | 44605-22021 |
| 44608 | Booster push rod sub-assembly | 44606-30050 · 44608-14040 |
| 44610 | brake booster assembly | 44610-35031 · 44610-35041 · 44610-35061 |
| 44610K | brake booster components | 04443-35020 · 04443-35030 |
| 44626 | Booster rod cup fixing piece | 44626-60010 |
| 44633 | booster valve plunger key | 44633-22020 |
| 44642 | brake booster piston | 44642-25010 · 44642-25021 |
| 44643 | Diaphragm retaining ring | 44643-60010 |
| 44645 | Booster push rod sealing ring | 44628-60010 · 44645-22020 |
| 44657A | Snap ring (for booster air valve stop) | 96150-01600 |
| 44662 | No. 1 reaction retaining ring | 44609-30100 · 44609-35060 |
| 44662B | reaction lever | 44661-60010 |
| 44669 | Ring inner ring (for air filter element stop) | 44669-60010 |
| 44678 | Booster air filter retaining ring | 44678-22020 |
| 44696 | One-way valve seal | 90480-24438 · 90480-24439 · 90480-24517 |
| 44697 | Booster strap fixing screw | 44681-30170 · 44681-60011 |
| 44697A | Nut (for booster strap assembly) | 44686-30030 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-22050 · 44730-22060 |
| 44730A | No. 1 vacuum hose | 44773-35020 · 44773-35040 · 44773-35050 · 44773-35060 · 90445-17858 · 90445-17859 |
| 44730D | Clamp (for vacuum hose No. 1) | 90467-16141 · 96112-10180 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51007 · 90404-51237 · 90407-09058 |
| 44731 | Front brake booster bracket | 44731-35030 |
| 44731A | Brake booster bracket pad | 44785-35010 |
| 44758 | Vacuum check valve bracket | 44758-20060 · 44758-35010 |
| 44785 | brake booster pad | 44785-35010 |
