Toyota HILUX 前转向齿轮和连杆 — Figure 4505

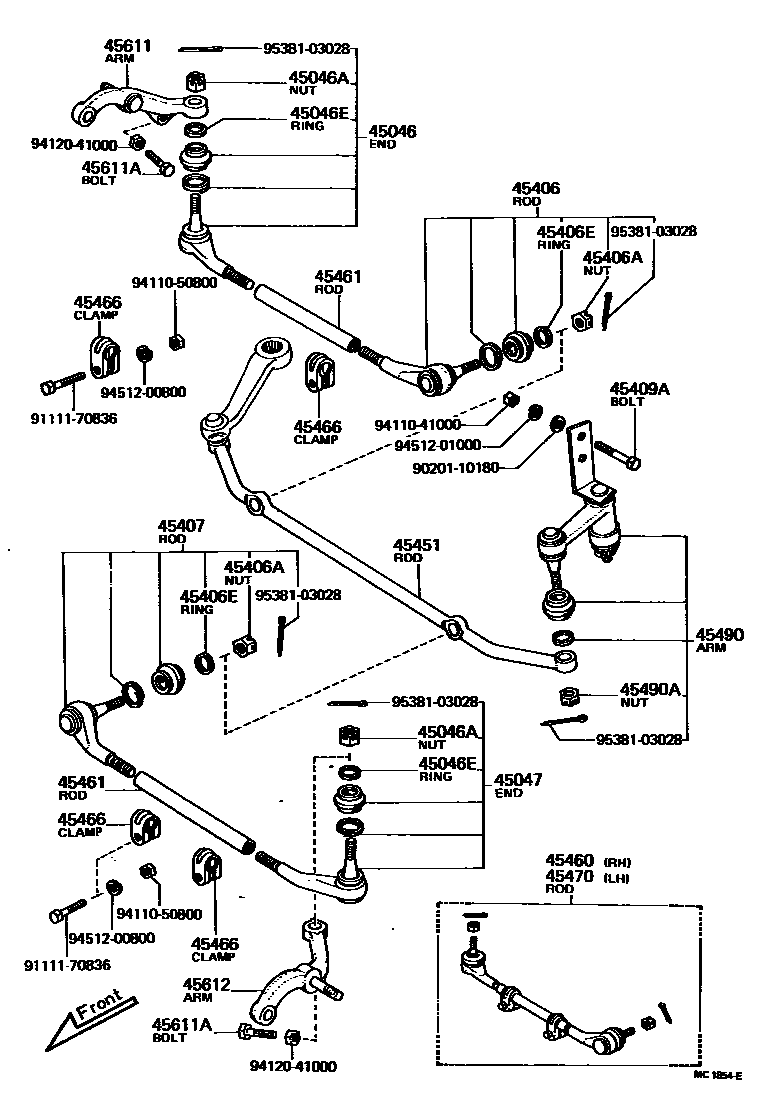

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-39085 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45046E | O-ring (for dust-proof sealing ring at tie rod end) | 90562-16107 |
| 45047 | Left tie rod end sub-assembly | 45047-39055 |
| 45406 | Right tie rod sub-assembly | 45406-39065 |
| 45406A | Castle nuts (for tie rods) | 90171-14042 |
| 45406E | O-ring (for tie rod dust seal) | 90562-16107 |
| 45407 | Left tie rod sub-assembly | 45406-39065 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 91112-51085 · 91112-51090 |
| 45451 | Steering intermediate tie rod | 45451-35050 · 45451-35051 · 45451-35060 · 45451-35070 |
| 45460 | Right tie rod assembly | 45460-39065 |
| 45461 | steering tie rod | 45465-35010 |
| 45466 | Tie rod end clamp | 45466-30020 |
| 45470 | Left tie rod assembly | 45470-39035 |
| 45490 | Steering follower arm assembly | 45490-39085 · 45490-39086 · 45490-39095 · 45490-39096 · 45490-39105 · 45490-39115 · 45490-39175 |
| 45490A | Castle nut (for follower arm) | 90171-14042 |
| 45611 | Right steering knuckle arm | 45601-35040 · 45601-35041 · 45601-35050 |
| 45611A | Steering knuckle limit bolt | 90106-10032 |
| 45612 | Left steering knuckle arm | 45606-35020 · 45606-35021 · 45606-35030 |
