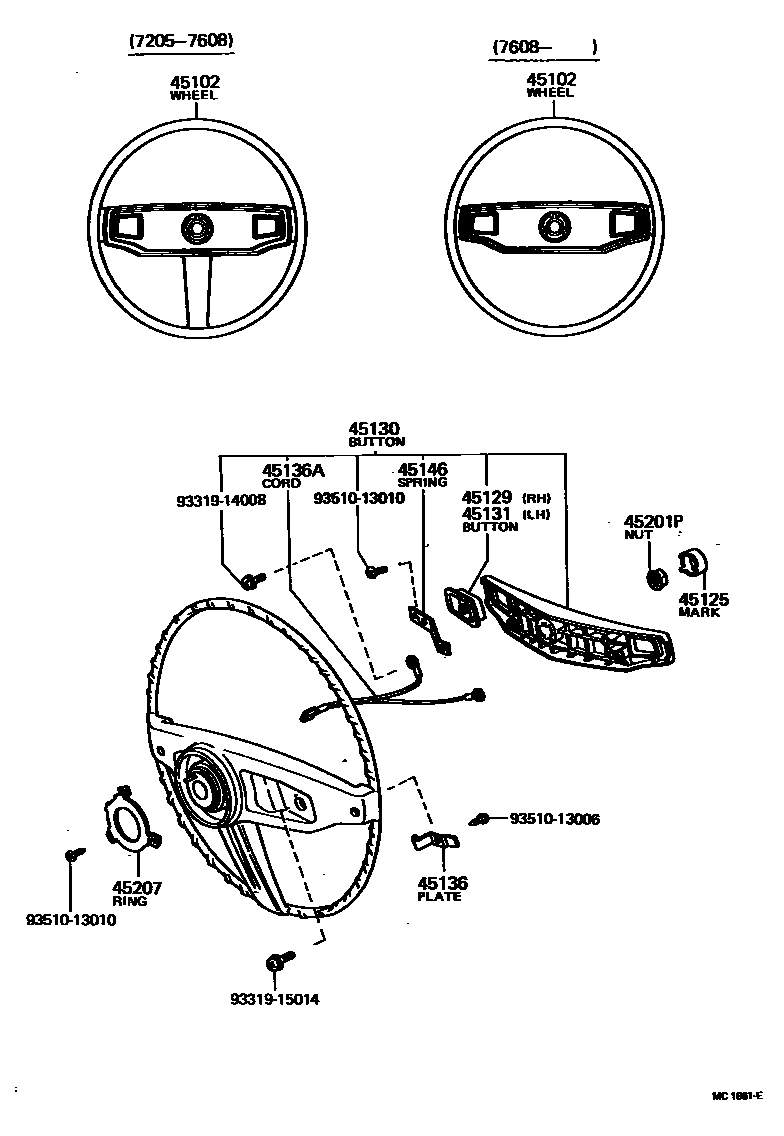

Toyota HILUX Steering Wheel — Figure 4504
Toyota HILUX EPC diagram 4504, Steering Wheel, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45102 | Steering wheel sub-assembly | 45100-35080 · 45100-35090 · 45100-35120 · 45100-35121 · 45100-35130 · 45100-35131 |
| 45125 | Steering wheel trim cover markings | 45125-35020 |
| 45129 | Speaker button No. 2 | 45131-35050 · 45131-35060 |
| 45130 | Speaker button assembly | 45130-35060 · 45130-35090 |
| 45131 | Speaker button No. 1 | 45131-35050 · 45131-35060 |
| 45136 | horn button contact piece | 45136-35020 · 45136-35021 · 45137-35020 |
| 45136A | Wire (for speaker contact ring) | 90945-02013 |
| 45146 | Horn button contact spring | 45146-35020 |
| 45201P | Steering wheel fixing nut | 90179-12086 |
| 45207 | Speaker contact ring | 45176-35010 |
