Toyota HILUX 车轮和车轮盖 — Figure 4103

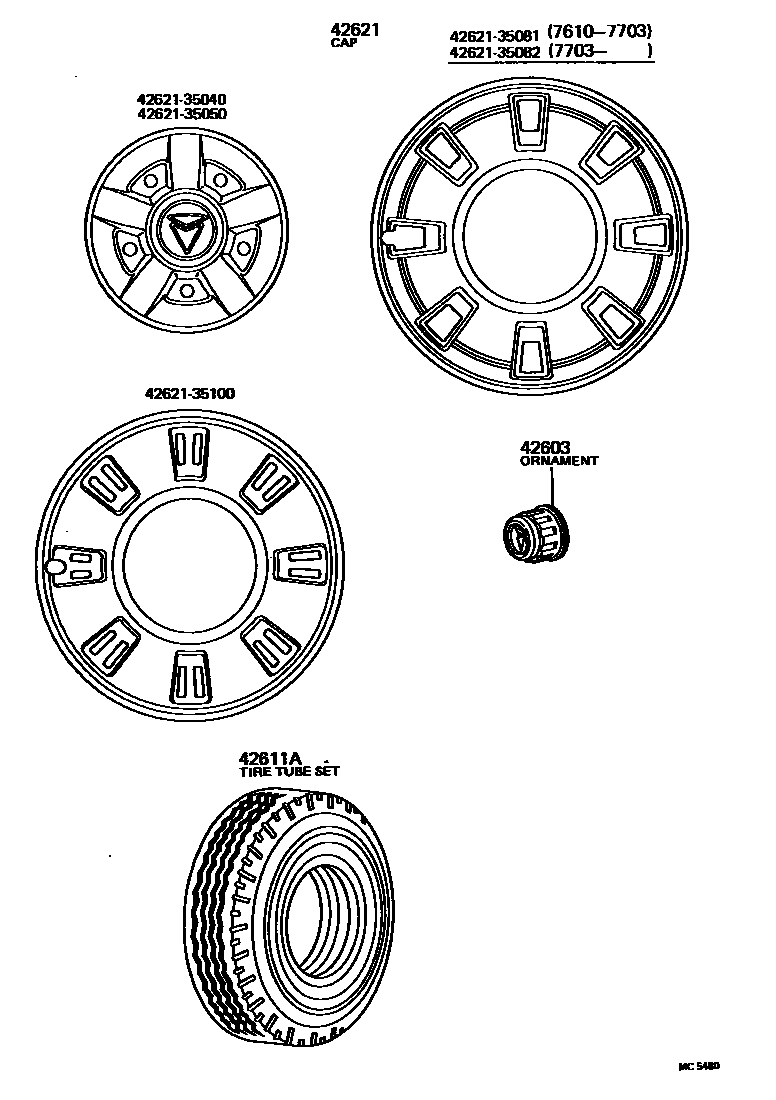

Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42603 | Wheel hub decorative parts sub-assembly | 42603-26010 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-35010 · 98031-73140 · 98061-60143 · 98061-60144 · 98061-65144 · 98061-67144 · 98063-60143 · 98063-60144 · 98063-65144 · 98064-60143 · 98064-60144 |
| 42621 | wheel cover | 42621-35040 · 42621-35050 · 42621-35081 · 42621-35082 · 42621-35100 |
