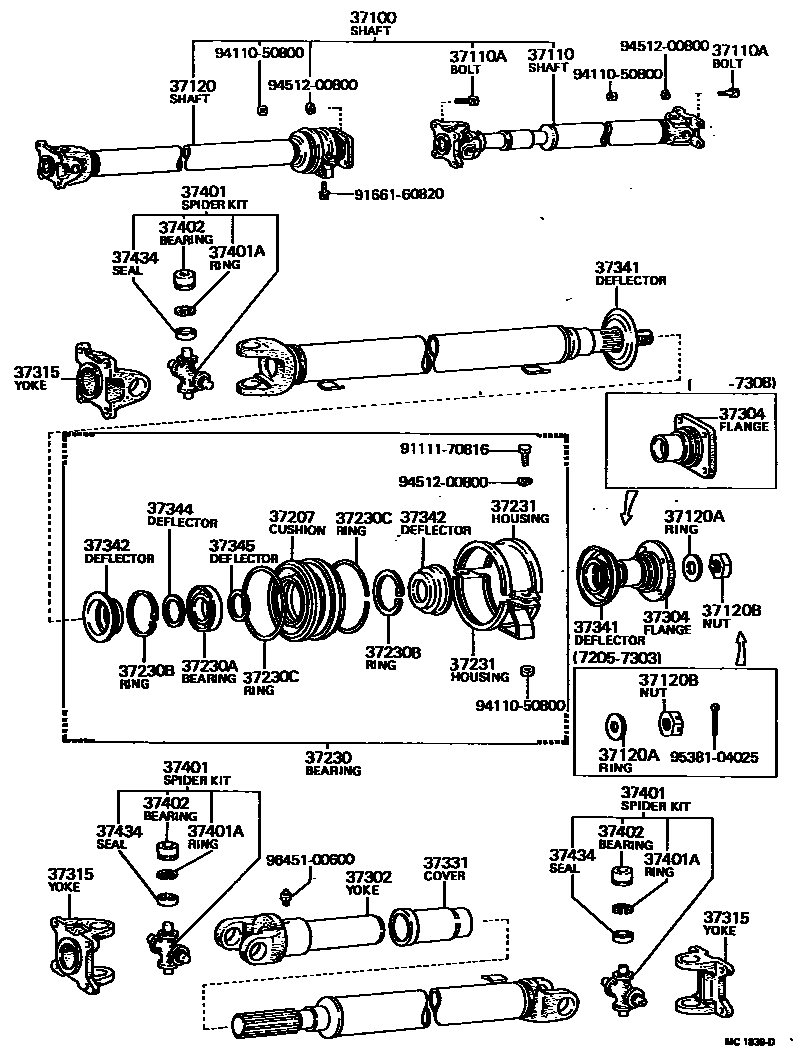

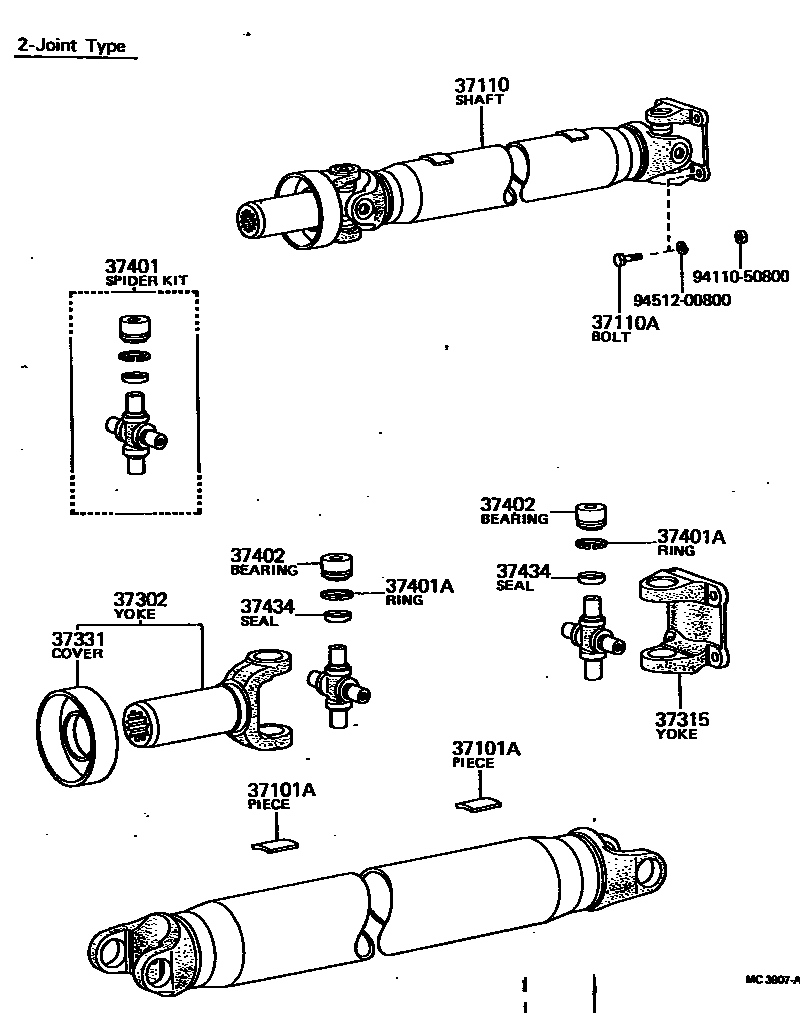

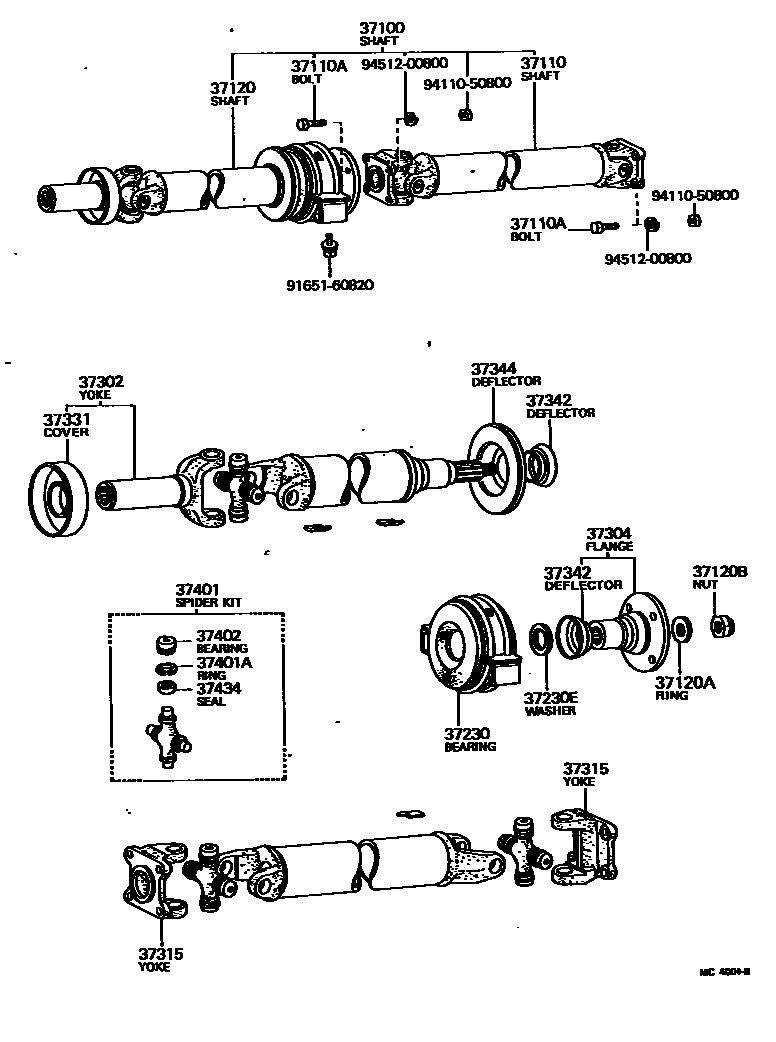

Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701
Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 37100 | Drive shaft assembly with central bearing | 37100-35060 · 37100-35061 · 37100-35100 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01003 · 90937-01004 · 90937-01005 · 90937-01010 · 90937-01011 · 90937-01012 · 90937-01022 · 90937-01029 · 90937-01030 · 90937-01031 · 90937-01132 · 90937-01136 · 90937-01140 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 |
| 37110 | Drive shaft assembly | 37110-35050 · 37110-35051 · 37110-35060 · 37110-35090 |
| 37110A | Bolt (for drive shaft) | 90101-08214 |
| 37120 | Intermediate drive shaft assembly | 37120-35030 · 37120-35031 · 37120-35070 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-19117 · 90201-20005 · 90201-20329 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90171-19035 · 90179-20001 · 90179-20061 |
| 37207 | No. 1 intermediate support bearing buffer pad sub-assembly | 37207-35011 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-35013 · 37230-40030 · 37230-40031 |
| 37230A | No. 1 bearing (for intermediate support) | 90363-30029 |
| 37230B | No. 1 snap ring (for intermediate support bearing) | 90521-66077 |
| 37230C | No. 1 positioning ring (for intermediate support bearing cushion) | 90522-97013 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-28001 |
| 37231 | Intermediate support bearing shell | 37231-35012 · 37232-35012 |
| 37302 | Universal joint fork assembly | 37302-25010 · 37302-35010 |
| 37304 | Universal joint flange sub-assembly | 37304-35020 · 37304-35021 · 41251-26021 · 41251-26022 |
| 37315 | Universal joint flange fork | 37315-35021 |
| 37331 | Sliding shaft dust cover | 37305-25010 · 37331-30010 |
| 37341 | No. 1 drive shaft dust cover | 37341-35011 |
| 37342 | No. 2 drive shaft dust cover | 37342-30010 · 37342-35010 |
| 37344 | No. 3 drive shaft dust cover | 37344-35010 · 37344-35020 |
| 37345 | No. 4 drive shaft dust cover | 37345-35010 |
| 37401 | Universal joint cross shaft assembly | 04371-30011 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90521-27001 · 90521-27002 · 90521-27003 · 90521-27004 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-35031 |
| 37434 | Universal joint cross shaft bearing seal | 37343-25010 |
