Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

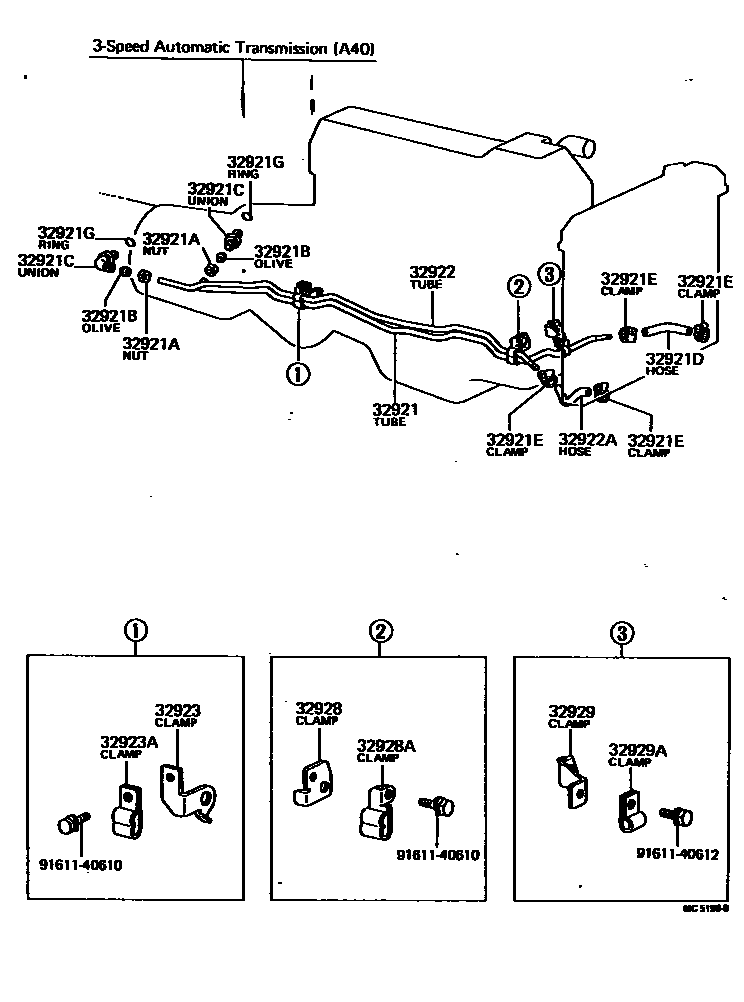

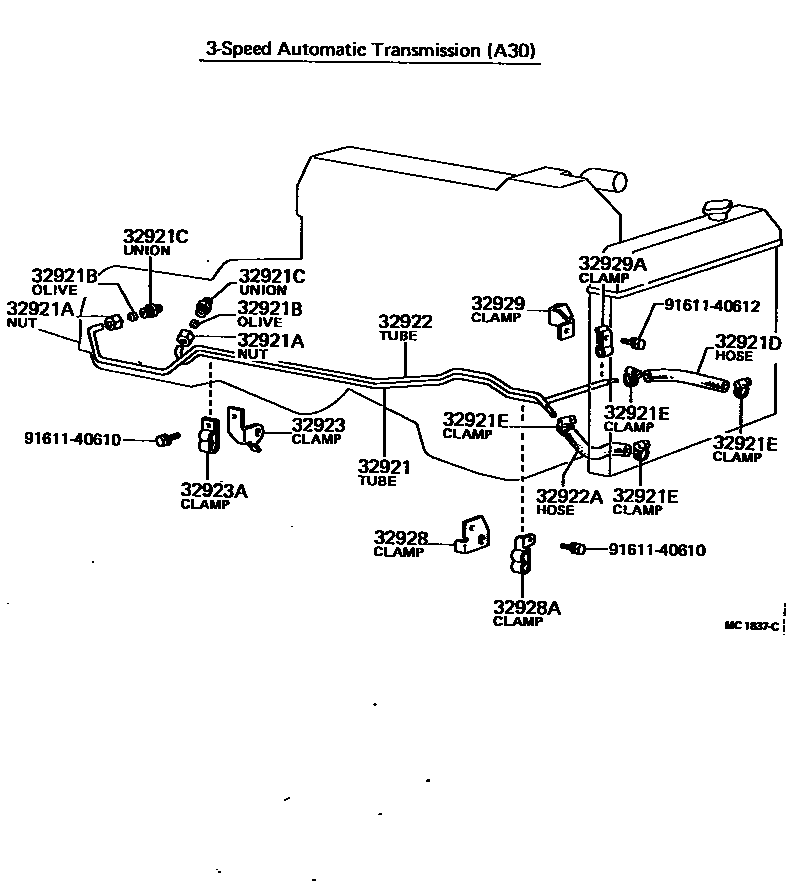

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-22031 · 32921-35010 |
| 32921A | Union nut (for transmission oil cooler tube) | 90402-13041 |
| 32921B | Olive-shaped piece (for transmission oil cooler pipe) | 96395-71400 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13105 · 90404-13265 · 90407-13060 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-14259 · 90445-14407 · 90445-14526 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-01075 · 90460-14085 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-20060 · 32922-35010 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-14259 · 90445-14407 · 90445-14526 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-20022 · 32923-20030 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90461-08070 · 90461-08076 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-20031 · 32928-20050 |
| 32928A | Clamp (for flexible hose clamp) | 90461-08049 · 90461-08076 |
| 32929 | No. 2 Flexible Hose Clamp | 32929-20030 |
| 32929A | Clamp (for flexible hose clamp) | 90461-06033 · 90461-12120 |
