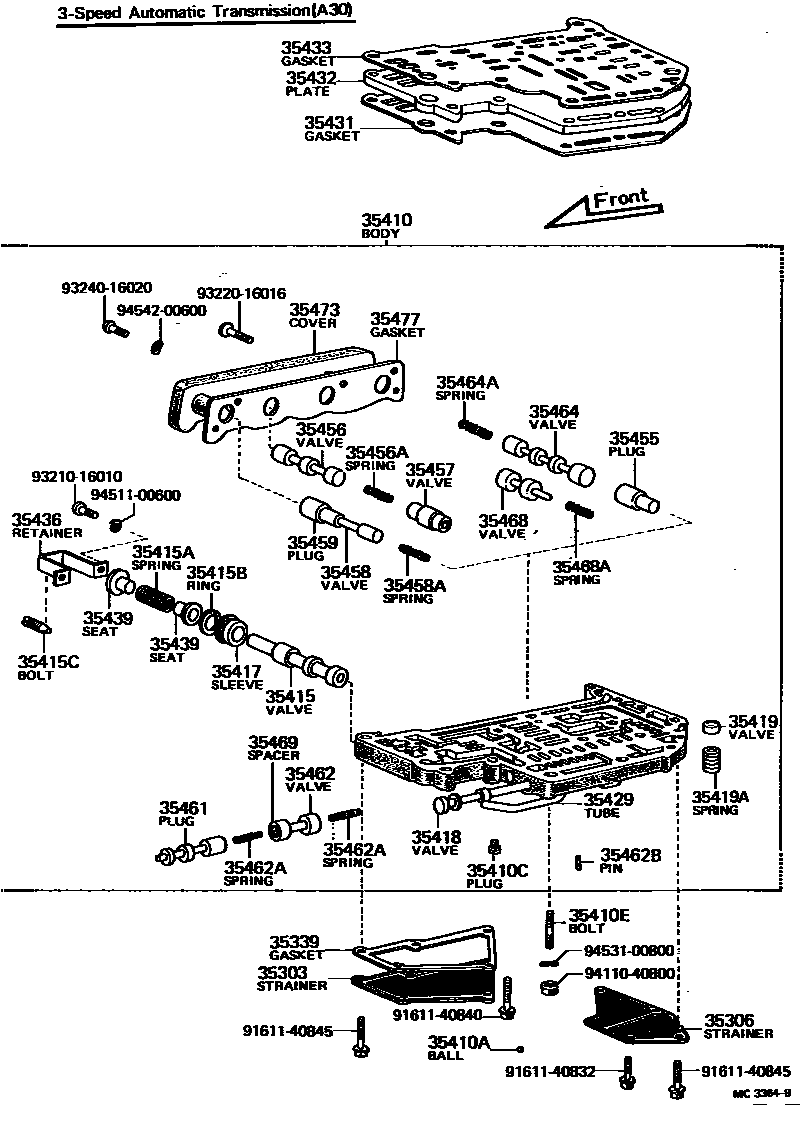

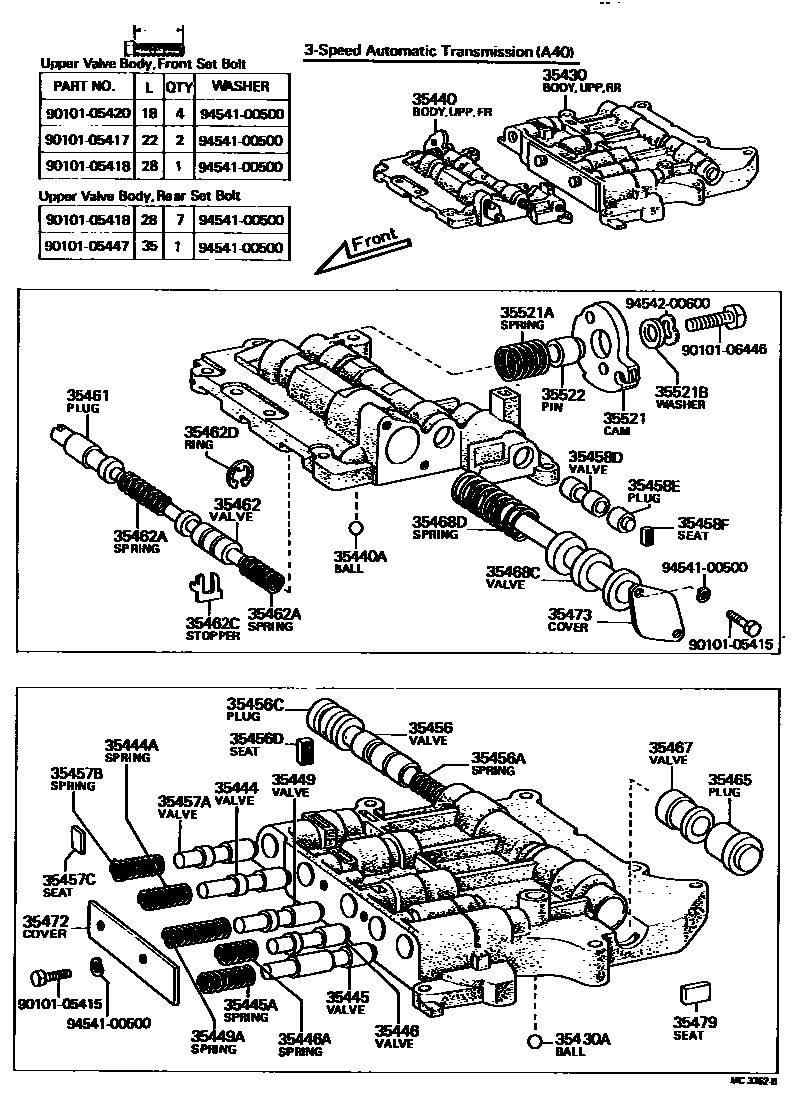

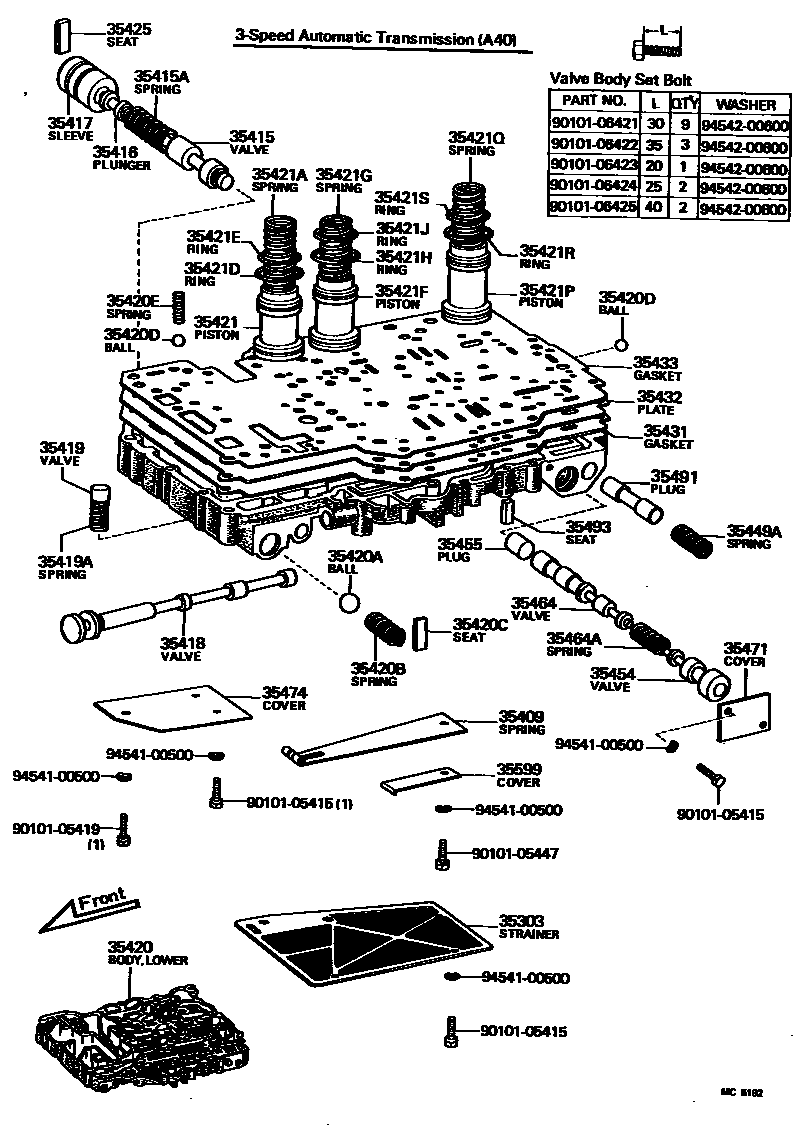

Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35303 | Oil filter sub-assembly | 35303-22020 · 35303-22021 · 35303-30013 |
| 35306 | Rear oil filter sub-assembly | 35306-30011 |
| 35339 | Oil filter gasket | 35339-30010 |
| 35409 | Manual lock spring sub-assembly | 35409-22010 |
| 35410 | Transmission valve body assembly | 35410-30011 |
| 35410A | Ball (for reverse gear shift positioning) | 90360-06004 |
| 35410C | Plunger (for transmission valve body) | 44681-36020 |
| 35410E | Studs (for transmission valve body) | 90116-08017 |
| 35415 | pressure regulator valve | 35415-22020 · 35415-30011 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-16331 · 90501-16682 |
| 35415B | Orifice snap ring (for pressure regulator valve assembly) | 96151-01500 |
| 35415C | Fixing bolt (for pressure regulator valve spring) | 90113-08024 |
| 35416 | No. 1 main regulator valve plunger | 35416-22010 |
| 35417 | pressure regulator valve sleeve | 35417-22020 · 35417-30010 |
| 35418 | Manual valve | 35418-22010 · 35418-30011 |
| 35419 | No. 1 one-way valve | 35419-12010 · 35419-22010 |
| 35419A | Compression spring (for one-way valve) | 90501-05327 · 90501-13674 |
| 35420 | Lower valve body assembly | 35420-22030 |
| 35420A | Ball (for pressure reducing valve) | 90360-13024 |
| 35420B | Spring (for pressure reducing valve) | 90501-18677 |
| 35420C | Seat (for pressure reducing valve) | 35427-22011 |
| 35420D | Ball (for lower valve body) | 35495-22010 · 35496-22010 |
| 35420E | Spring (for lower valve body) | 90501-04727 |
| 35421 | No. 1 accumulator piston | 35421-22010 |
| 35421A | Compression spring (for accumulator piston No. 1) | 90501-20011 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29187 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23194 |
| 35421F | No. 2 accumulator piston | 35421-22020 |
| 35421G | Compression spring (for accumulator piston No. 2) | 90501-20676 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26190 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18186 |
| 35421P | No. 3 accumulator piston | 35421-22030 |
| 35421Q | Compression spring (for No. 3 accumulator piston) | 90501-20675 |
| 35421R | Ring (for No. 3 accumulator piston) | 90301-26190 |
| 35421S | Ring (for No. 3 accumulator piston) | 90301-22185 |
| 35425 | Pressure regulator valve sleeve seat | 35425-22010 |
| 35429 | pipeline pressure oil pipe | 35429-30010 |
| 35430 | Rear upper valve body assembly | 35430-22060 |
| 35430A | Ball (for rear upper valve body) | 35495-22010 · 90360-06023 |
| 35431 | Valve body gasket | 35433-22020 · 35434-30011 |
| 35432 | No. 1 valve body plate | 35432-22020 · 35432-30012 |
| 35433 | No. 1 valve body gasket | 35433-30012 · 35434-22020 |
| 35436 | Pressure regulator spring seat | 35436-30011 |
| 35439 | Pressure regulator valve spring seat | 35439-30010 |
| 35440 | Front upper valve body assembly | 35440-22021 |
| 35440A | Ball (for front upper valve body) | 35495-22010 |
| 35444 | intermediate regulator valve | 35444-22010 |
| 35444A | Compression spring (for intermediate regulator valve) | 90501-11001 |
| 35445 | Low speed regulator valve | 35445-22010 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08725 |
| 35446 | governor regulator valve | 35446-22010 |
| 35446A | Compression spring (for governor regulator valve) | 90501-07688 |
| 35449 | sequence valve | 35447-22010 |
| 35449A | Compression spring (for sequence valve) | 90501-12726 |
| 35454 | Low gear coast shift valve | 35454-22010 |
| 35455 | 1-2 gear low gear shift valve plunger | 35455-22010 · 35455-30011 |
| 35456 | 2nd-3rd gear shift valve | 35456-22010 · 35456-30010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08328 · 90501-08724 |
| 35456C | Plunger (for 2-3 gear shift valve) | 35452-22010 |
| 35456D | Seat (for 2-3 gear shift valve) | 35493-22020 |
| 35457 | Throttle regulator valve | 35457-30010 |
| 35457A | lock regulator valve | 35457-22010 |
| 35457B | Compression spring (for locking regulator valve) | 90501-09739 |
| 35457C | Seat (for locking regulator valve) | 35438-22020 |
| 35458 | Throttle relay valve | 35458-30010 |
| 35458A | Compression spring (for throttle relay valve) | 90501-06325 |
| 35458D | reverse valve | 35458-22010 |
| 35458E | Plunger (for reverse valve) | 35459-22010 |
| 35458F | Seat (for reverse valve) | 35493-22010 |
| 35459 | Throttle valve relay valve plunger | 35459-30010 |
| 35461 | Downshift plug | 35408-22010 · 35461-30010 |
| 35462 | throttle valve | 35462-22011 · 35462-30010 |
| 35462A | Compression spring (for throttle valve) | 90501-07680 · 90501-10334 · 90501-11681 · 90501-12333 |
| 35462B | Slotted spring pin (for throttle valve assembly) | 90254-03011 |
| 35462C | Valve damping stop | 35422-22010 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464 | 1-2 gear shift valve | 35464-22010 · 35464-30011 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-05416 · 90501-06460 · 90501-06461 · 90501-06684 |
| 35465 | Intermediate shift valve plunger | 35465-22010 |
| 35467 | Intermediate shift valve | 35467-22010 |
| 35468 | Throttle control valve | 35468-30010 |
| 35468A | Compression spring (for throttle control valve spring) | 90501-12332 |
| 35468C | Secondary regulator valve | 35468-22010 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-16683 |
| 35469 | Spacer (for valve body reduction plug) | 35469-30010 |
| 35471 | No. 1 valve body cover | 35471-22010 |
| 35472 | No. 2 valve body cover | 35472-22010 |
| 35473 | Transmission valve body cover | 35473-22010 · 35473-30011 |
| 35474 | No. 4 valve body cover | 35474-22010 |
| 35477 | Valve body cover gasket | 35477-30010 |
| 35479 | Intermediate shift valve seat | 35479-22010 |
| 35491 | Reverse brake plug | 35491-22010 |
| 35493 | Shift valve spring seat | 35493-22010 |
| 35521 | throttle cam | 35521-22020 |
| 35521A | Spring (for throttle cam return) | 90508-12331 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-22010 |
