Toyota HILUX 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

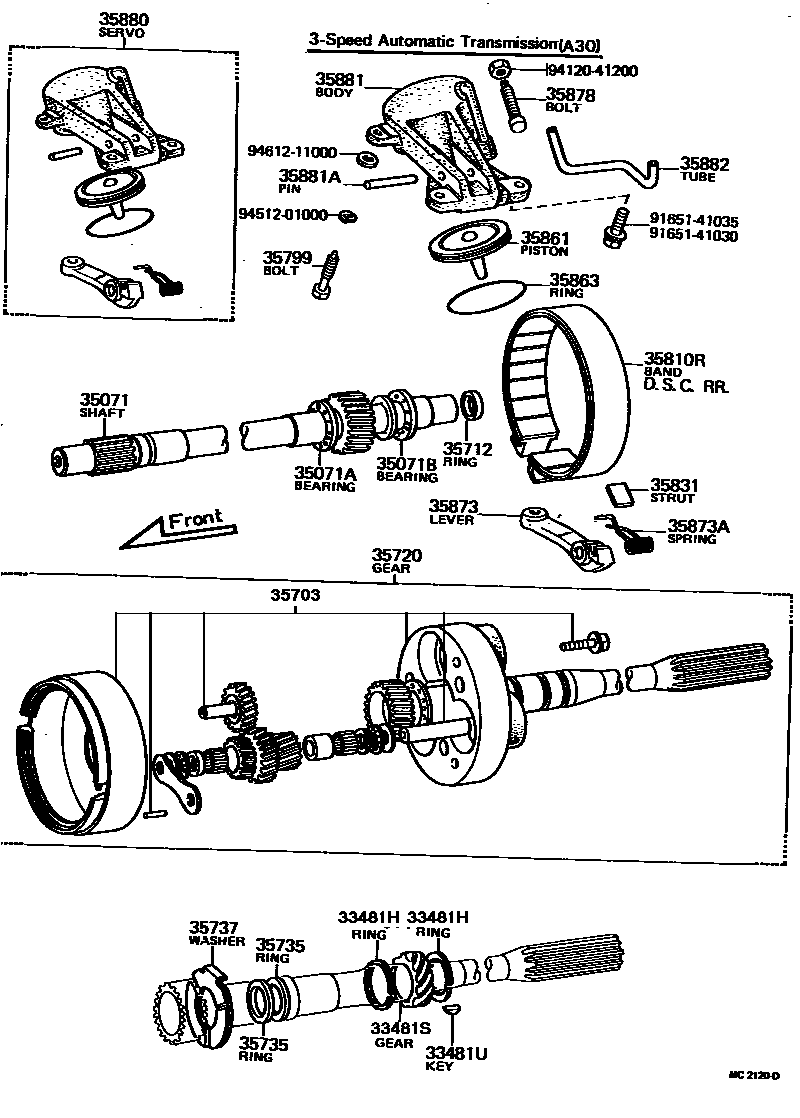

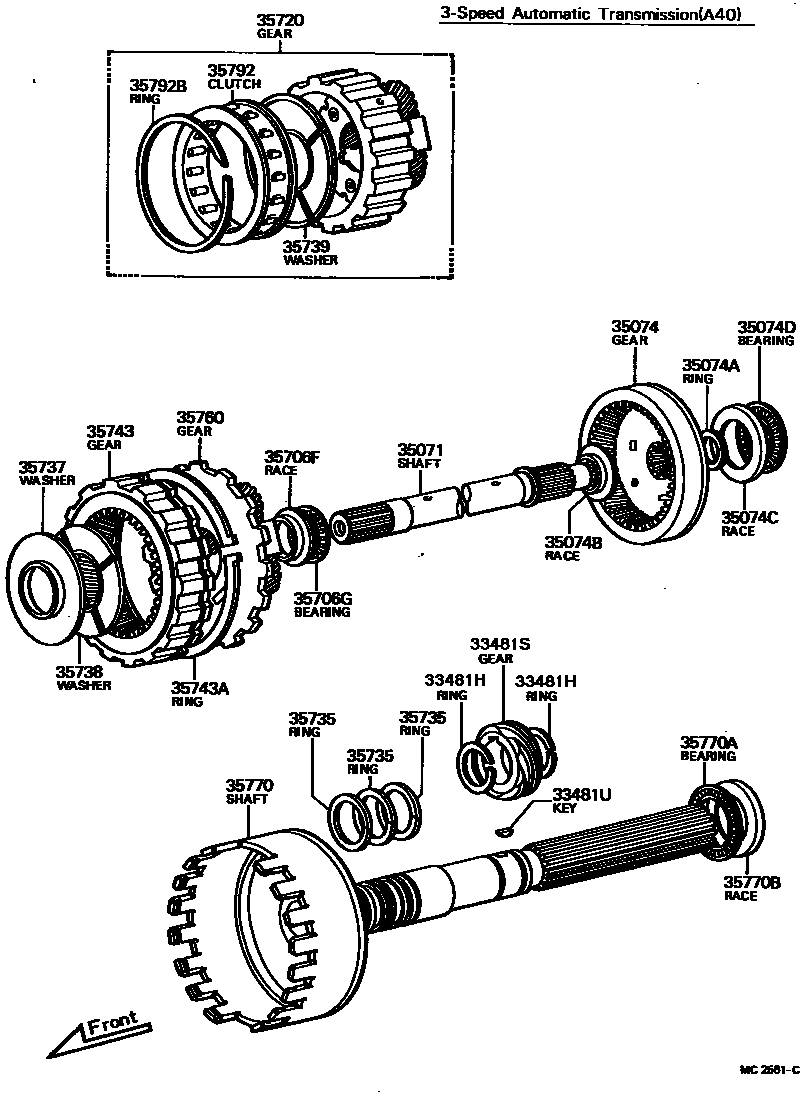

Toyota HILUX EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33481H | Shaft snap ring (for ATM speedometer driving gear) | 90520-28009 |
| 33481S | Speedometer driving gear (ATM) | 33481-20020 |
| 33481U | Steel ball (for speedometer driving gear) | 90280-03005 |
| 35071 | Planetary intermediate shaft sub-assembly | 35071-40010 · 35708-22011 |
| 35071A | Thrust bearing (for front intermediate shaft) | 90374-20002 |
| 35071B | Thrust bearing (for rear countershaft) | 90374-20015 |
| 35074 | Rear planetary ring gear sub-assembly | 35074-22010 |
| 35074A | Locating ring (for rear planetary ring gear) | 90522-20037 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-22050 |
| 35074C | Rear thrust bearing race (for rear planetary ring gear) | 35789-22020 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-28014 |
| 35703 | Planetary gear carrier sub-assembly | 35703-39015 |
| 35706F | Rear thrust bearing race (for sun gear) | 35789-22010 |
| 35706G | Rear thrust bearing (for sun gear) | 90374-23012 |
| 35712 | Planetary gear countershaft oil protection ring | 35712-30010 |
| 35720 | Front planetary gear assembly | 35720-22030 · 35720-40020 |
| 35735 | Planetary gear output shaft snap ring | 35735-22010 · 35735-30010 |
| 35737 | Planetary gear carrier thrust washer | 35737-22010 · 35737-30010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-22010 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-22011 |
| 35743 | Front planetary ring gear | 35743-22010 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99121 |
| 35760 | Rear planetary gear assembly | 35760-22020 |
| 35770 | Output shaft assembly | 35770-22010 |
| 35770A | Thrust bearing (for output shaft) | 90374-38013 |
| 35770B | Thrust bearing race (for output shaft) | 35789-22040 |
| 35792 | No. 2 one-way clutch | 35792-22030 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-79148 |
| 35799 | No. 2 middle bracket bolt | 35799-30010 |
| 35810R | Transmission brake band assembly (for rear) | 35808-40010 · 35808-40020 |
| 35831 | Brake belt oil supply spool | 35831-30030 |
| 35861 | reverse piston | 35861-30012 |
| 35863 | Reverse piston outer oil protection ring | 90301-59124 |
| 35873 | Reverse brake with oil supply lever | 35873-40011 |
| 35873A | Torsion spring (for brake band) | 90508-38160 |
| 35878 | Rear brake strap anchor bolt | 35878-30012 |
| 35880 | Rear servo mechanism assembly | 35880-30011 |
| 35881 | rear servo body | 35881-40012 |
| 35881A | Direct sales (for rear servo body) | 90250-10138 |
| 35882 | Rear servo oil supply pipe | 35882-30010 |
