Toyota HILUX 变矩器、前油泵和链条(ATM) — Figure 3502

Toyota HILUX EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 15 PNC and OE references.

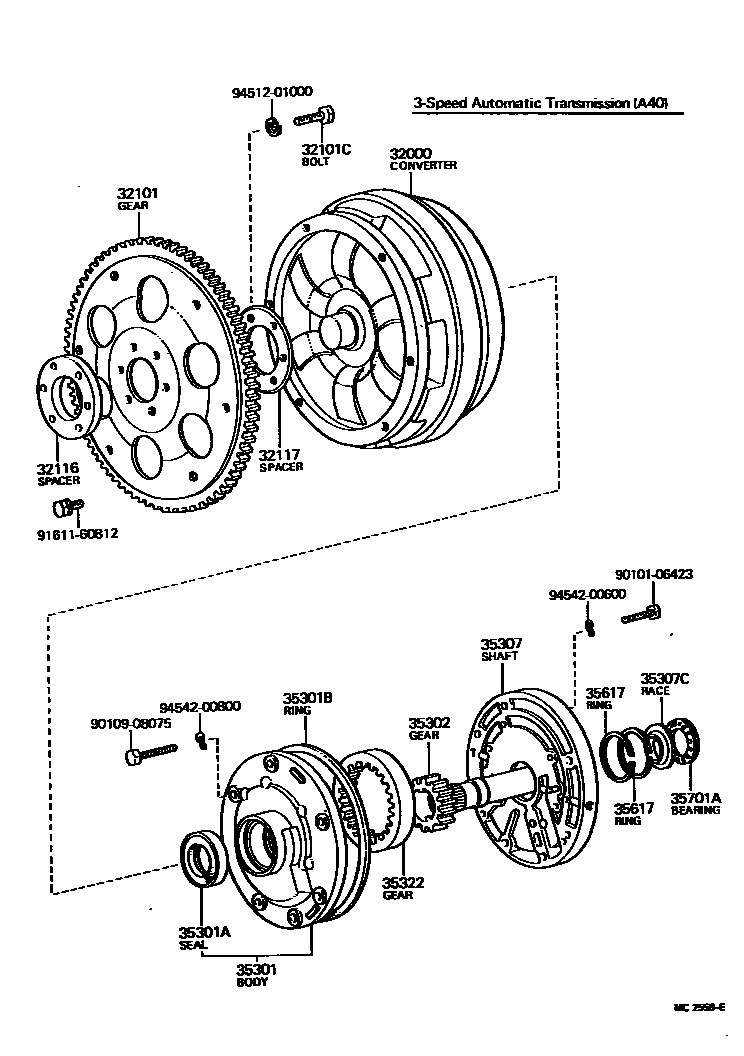

Toyota HILUX 变矩器、前油泵和链条(ATM) EPC diagram — MC2556E
变矩器、前油泵和链条(ATM) — MC2556E (197708 – 197807)

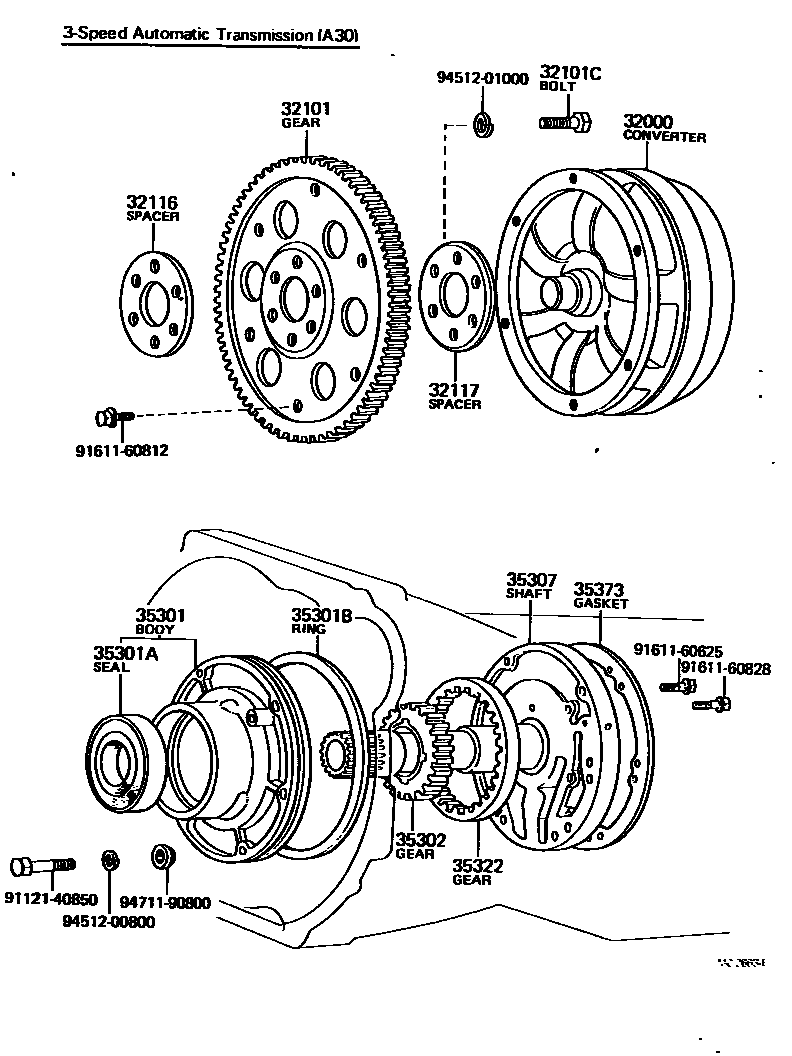

Toyota HILUX 变矩器、前油泵和链条(ATM) EPC diagram — MC2663E
变矩器、前油泵和链条(ATM) — MC2663E (197404 – 197708)

PNC and OE references

PNCPart nameOE numbers
32000Torque converter assembly32000-20080 · 32000-22020 · 32000-30060
32101Transmission plate and ring gear sub-assembly32101-22020
32101CHexagonal bolts (used to fix the transmission plate)90101-10035 · 90101-10435 · 90105-10006
32116Front transmission plate spacer32116-22010 · 32116-22011
32117Rear transmission plate spacer32117-22010 · 32117-22011
35301Front oil pump body sub-assembly35301-22011 · 35301-30012
35301AOil seal (for front oil pump)90311-38129 · 90311-45084
35301BO-ring (for front oil pump body)35147-22010 · 90301-99108
35302Front oil pump driving gear sub-assembly35302-30011 · 35321-22010
35307Stator shaft sub-assembly35307-22011 · 35307-30012 · 35307-35010
35307CThrust bearing race (for stator shaft)35789-22010
35322Front oil pump driven gear35322-22010 · 35322-30010
35373Stator shaft gasket35373-30010
35617Clutch drum oil ring35617-22010
35701AFront thrust bearing (for input shaft)90374-23012
