Toyota HILUX Shift Lever & Retainer — Figure 3312

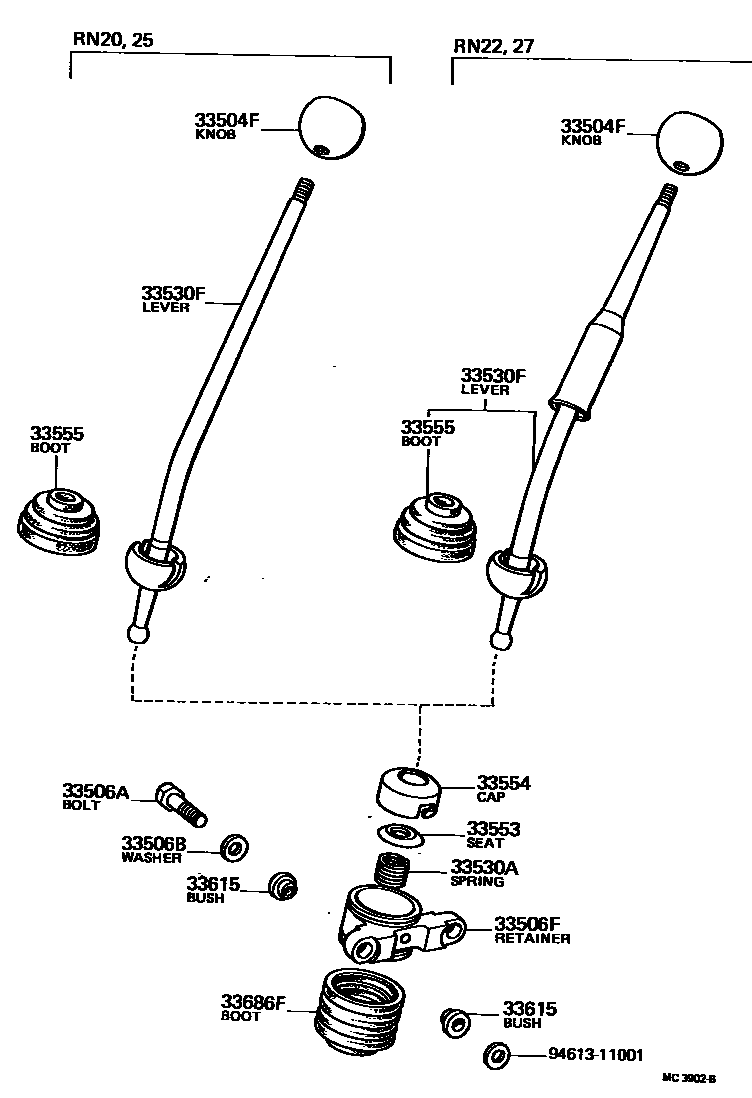

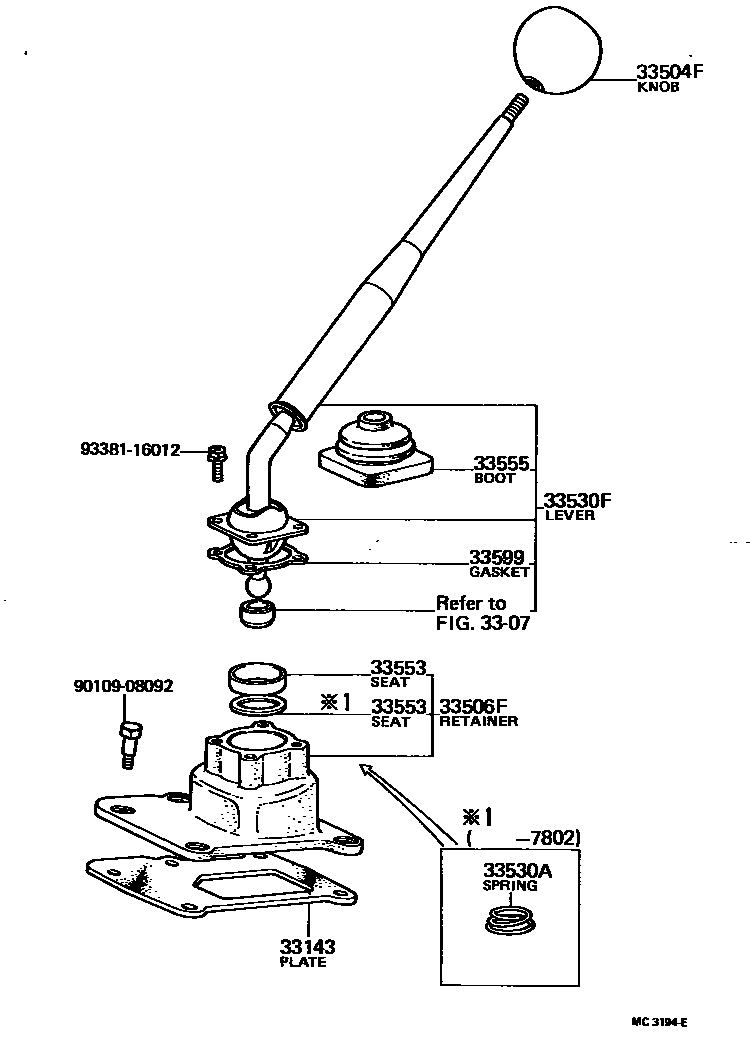

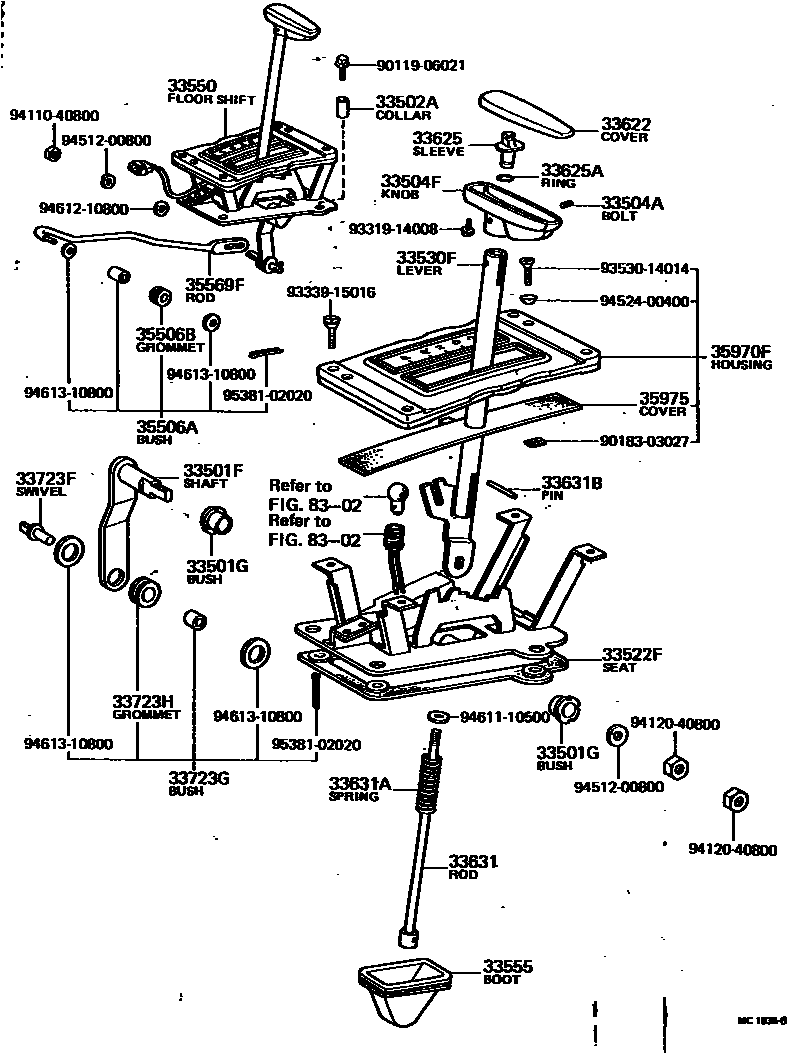

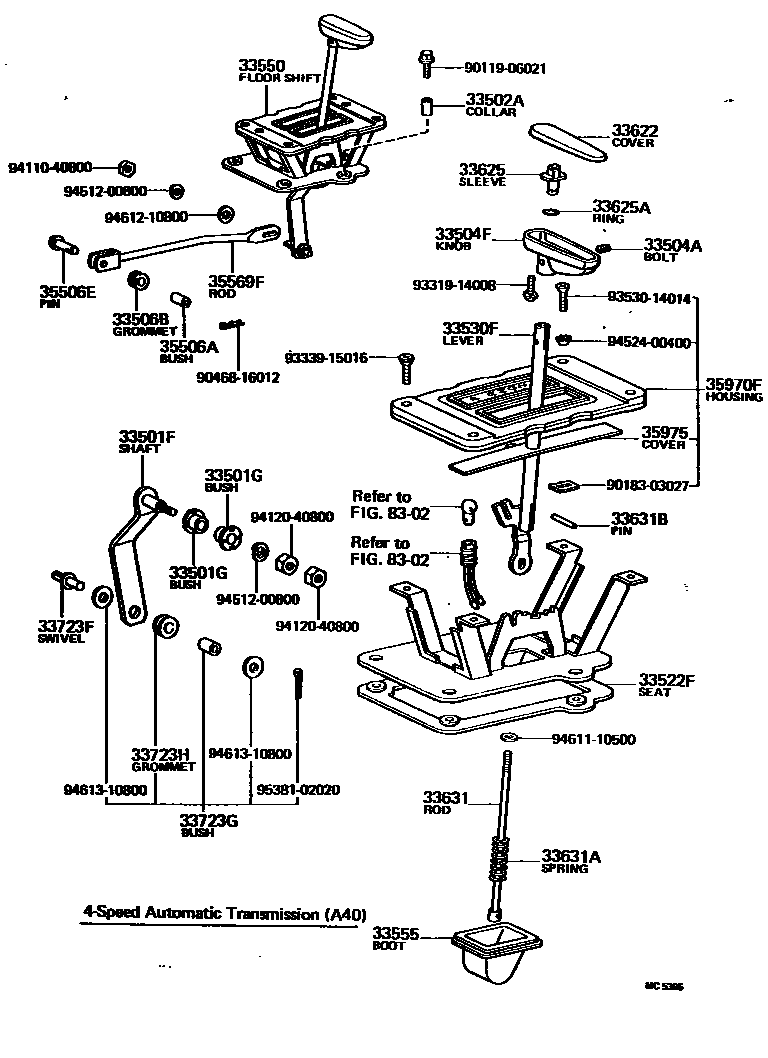

Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143 | Extended shell oil baffle | 33143-20030 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-35080 · 33501-35100 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-12044 · 90385-16045 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 |
| 33504F | Shift lever handle sub-assembly | 33504-12090 · 33504-20041 · 33504-22041 · 33504-31010 · 33504-31011 |
| 33506A | Bolt (for shift lever stop) | 90109-10020 |
| 33506B | Flat washer (for shift lever stop) | 90201-11257 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-20030 · 33570-14011 |
| 33522F | Shift lever base plate holder (for floor shift) | 33522-22020 |
| 33530A | Compression spring (for gear selector) | 90501-26629 · 90502-18057 |
| 33530F | Shift lever assembly (for floor shift) | 33503-20040 · 33503-22120 · 33530-35010 · 33530-35011 · 33530-35022 · 33541-35060 · 33541-35061 · 33541-35062 · 33541-35080 · 33541-35081 · 33541-35082 |
| 33550 | Transmission floor shift assembly | 33550-35010 · 33550-35040 |
| 33553 | Shift lever spring seat | 33553-30010 · 33556-20010 · 33556-22010 |
| 33554 | shift lever cover | 33554-30011 |
| 33555 | Gear shift lever dust cover | 33555-22020 · 33555-30030 · 33555-31011 |
| 33599 | No. 2 shift lever stopper gasket | 33584-31020 |
| 33615 | Shift control lever stopper bushing | 33615-20011 |
| 33622 | No. 1 shift lever handle cover | 33622-22022 |
| 33625 | Shift lever handle sleeve | 33625-22011 |
| 33625A | O-ring (for shift lever knob sleeve) | 90301-06083 |
| 33631 | Locking lever | 33631-22011 |
| 33631A | Compression spring (for locking lever) | 90501-10337 |
| 33631B | Slotted spring pin (for locking lever) | 90254-04017 |
| 33686F | Control shaft boot (for floor mounted shift stop) | 33555-30020 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 35506A | Bushing (for manual valve stem shaft) | 90389-08005 · 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17177 |
| 35506E | Pin with hole (for manual valve stem) | 90240-08120 |
| 35569F | Transmission first gear lever (for floor shift) | 33702-35010 · 35569-35010 |
| 35970F | Position indicator light housing assembly | 35907-22060 |
| 35975 | Slide cover (for position indicator light) | 35975-22010 |
