Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307

Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 3 images and 59 PNC and OE references.

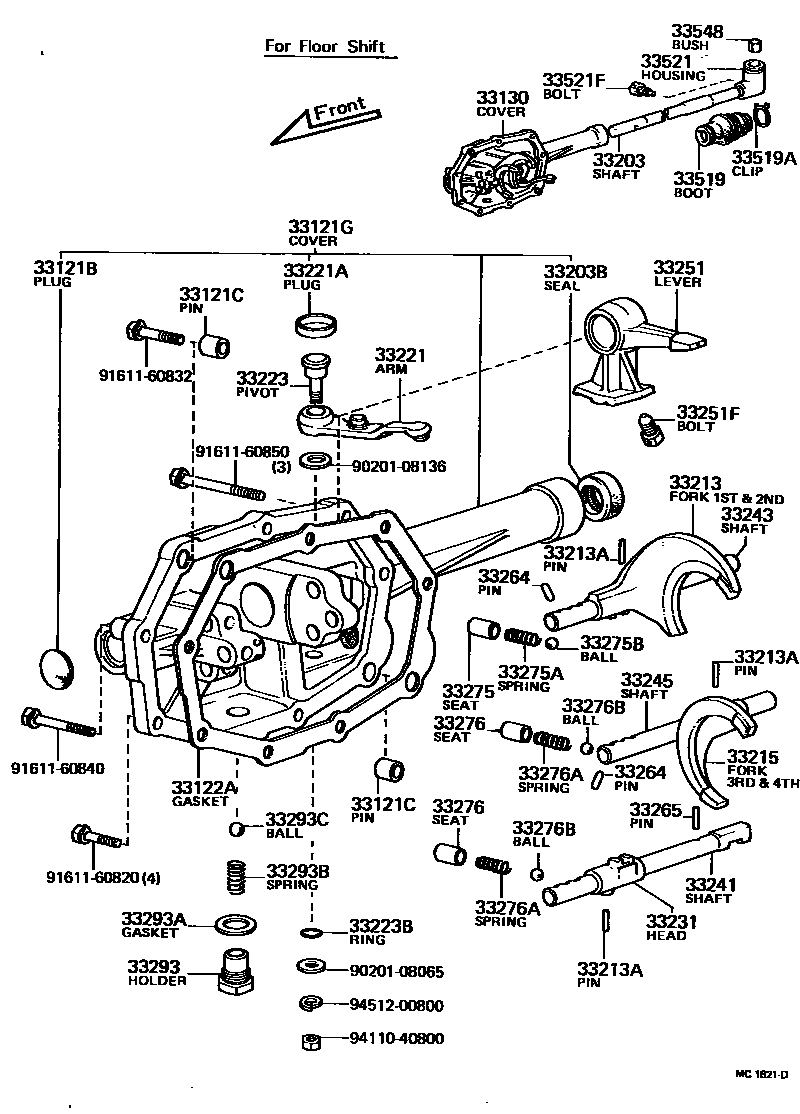

Toyota HILUX 换档拨叉和换档杆轴(MTM) EPC diagram — MC1821D
换档拨叉和换档杆轴(MTM) — MC1821D (197205 – 999999)

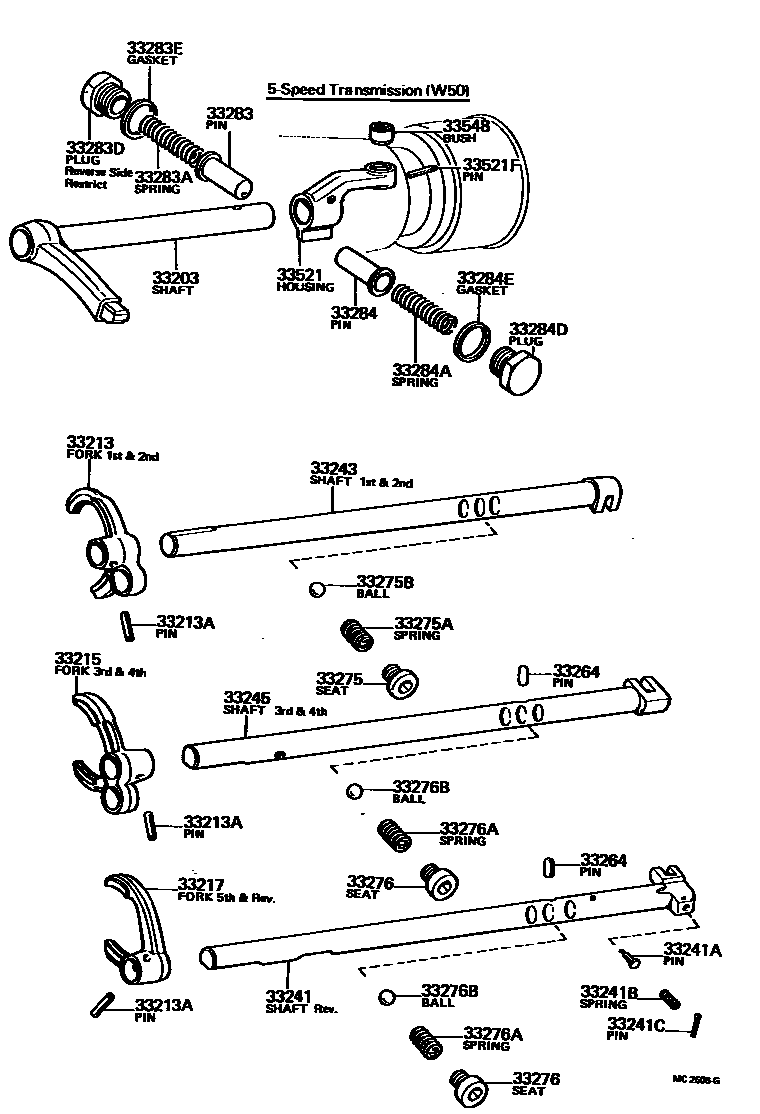

Toyota HILUX 换档拨叉和换档杆轴(MTM) EPC diagram — MC2606G
换档拨叉和换档杆轴(MTM) — MC2606G (197702 – 999999)

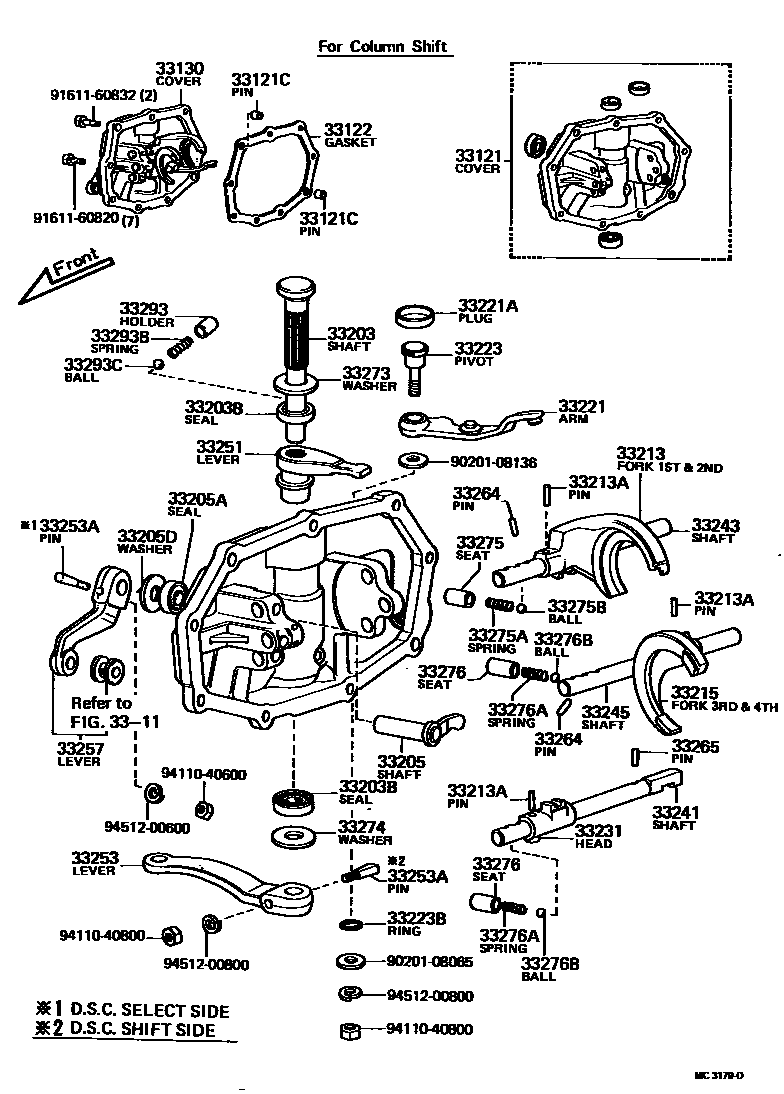

Toyota HILUX 换档拨叉和换档杆轴(MTM) EPC diagram — MC3179D
换档拨叉和换档杆轴(MTM) — MC3179D (197205 – 999999)

PNC and OE references

PNCPart nameOE numbers
33121manual gearbox cover33121-26901 · 33121-26902 · 33121-26903
33121BExpansion plug or sealing plug (for gearbox cover)90330-20011
33121Cpin (for gearbox cover)90253-11001
33121Gmanual gearbox cover33121-35901 · 33121-35902
33122Manual transmission cover gasket33122-30020
33122AManual transmission cover gasket33122-30020
33130Gearbox cover assembly33130-35040 · 33130-35050
33203No. 1 shift lever shaft sub-assembly33203-20092 · 33261-20010 · 33261-30020
33203BOil seal (for shift lever shaft)90311-13050 · 90311-18002 · 90311-18058 · 90312-15003
33205Selector lever shaft sub-assembly33262-26010 · 33262-30012
33205AOil seal (for No. 2 shift lever shaft)90313-13001
33205DWasher (used to secure the outer shift lever oil seal)94612-11300
33213First and second gear shift forks33212-26010 · 33212-28010 · 33212-31010
33213ASlotted spring pin (for securing shift fork)90254-05001
33215Third and fourth gear shift forks33213-26010 · 33213-26020 · 33213-31010
33217Fifth gear and reverse gear shift fork33214-20011
33221Reverse shift arm33221-30010
33221ASealing plug (for reverse shift arm)96411-12500
33223shift arm pivot33223-30011
33223BO-ring (for shift arm pivot)90301-08001
33231Reverse gear shift guide block33231-26010 · 33231-30010
33241Reverse shift fork shaft33241-26010 · 33244-20011
33241AReverse gear shaft positioning pin33284-22010
33241BCompression spring (for reverse shaft locating pin)90501-12003 · 90501-12017
33241CCotter pin (for reverse gear shaft positioning pin)95381-03020
33243First and second gear shift fork shaft33242-20041 · 33242-26010
33245Third and fourth gear shift fork shaft33243-20031 · 33243-26010 · 33243-26020
33251shift lever33251-22010 · 33251-26010 · 33251-30030 · 33251-30040
33251FPin or bolt (for shift lever)33218-35010
33253No. 1 outer shift lever33253-20030
33253AShift lever lock pin (for outer shift lever)33281-30010 · 33282-35010
33257External gear selector33260-35010
33264No. 1 shift interlock pin or steel ball33264-30010 · 33264-31010
33265No. 2 shift interlock pin33265-30010
33273No. 1 shift lever shaft cover gasket90201-15137
33274No. 2 shift lever shaft cover gasket94612-11300
33275No. 1 shift lock steel ball spring seat33275-10010 · 90341-10004 · 90341-10065
33275ACompression spring (for the lower side of the shift lock steel ball)90501-13001 · 90501-14638
33275BGear shift lock steel ball90360-08009 · 90360-10003
33276No. 2 shift lock steel ball spring seat33275-10010 · 90341-10064
33276ANo. 2 compression spring (for shift lock steel ball)90501-13001 · 90501-14638
33276BNo. 2 shift lock steel ball90360-08009 · 90360-10003
33283No. 1 reverse gear positioning pin33283-22010
33283ACompression spring (for reverse gear pin)90501-16002
33283DScrew plug (for reverse gear positioning pin)90341-20086
33283EPad (for reverse gear pin)90430-21224
33284Low grade positioning pin33283-22010
33284ACompression spring (for low range locating pins)90501-16001
33284DScrew plug (for low-end positioning pin)90341-20086
33284EPad (for low profile dowels)90430-21224
33293Reverse gear positioning steel ball retainer33276-10010 · 33293-30010
33293APad (for reverse gear positioning steel ball holder)12157-10010
33293BCompression spring (for reverse gear positioning steel ball)90501-16041
33293CSteel ball (for reverse gear positioning)90360-10003
33519Control shaft dust cover33555-20010
33519AClamp (for control shaft boot assembly)90467-17042
33521shift lever housing33521-14030 · 33521-30020 · 33521-35020 · 33521-35021
33521FPin or bolt (for shifter housing)33218-35010 · 90254-05016
33548shift lever bushing33548-30010 · 33548-31010
